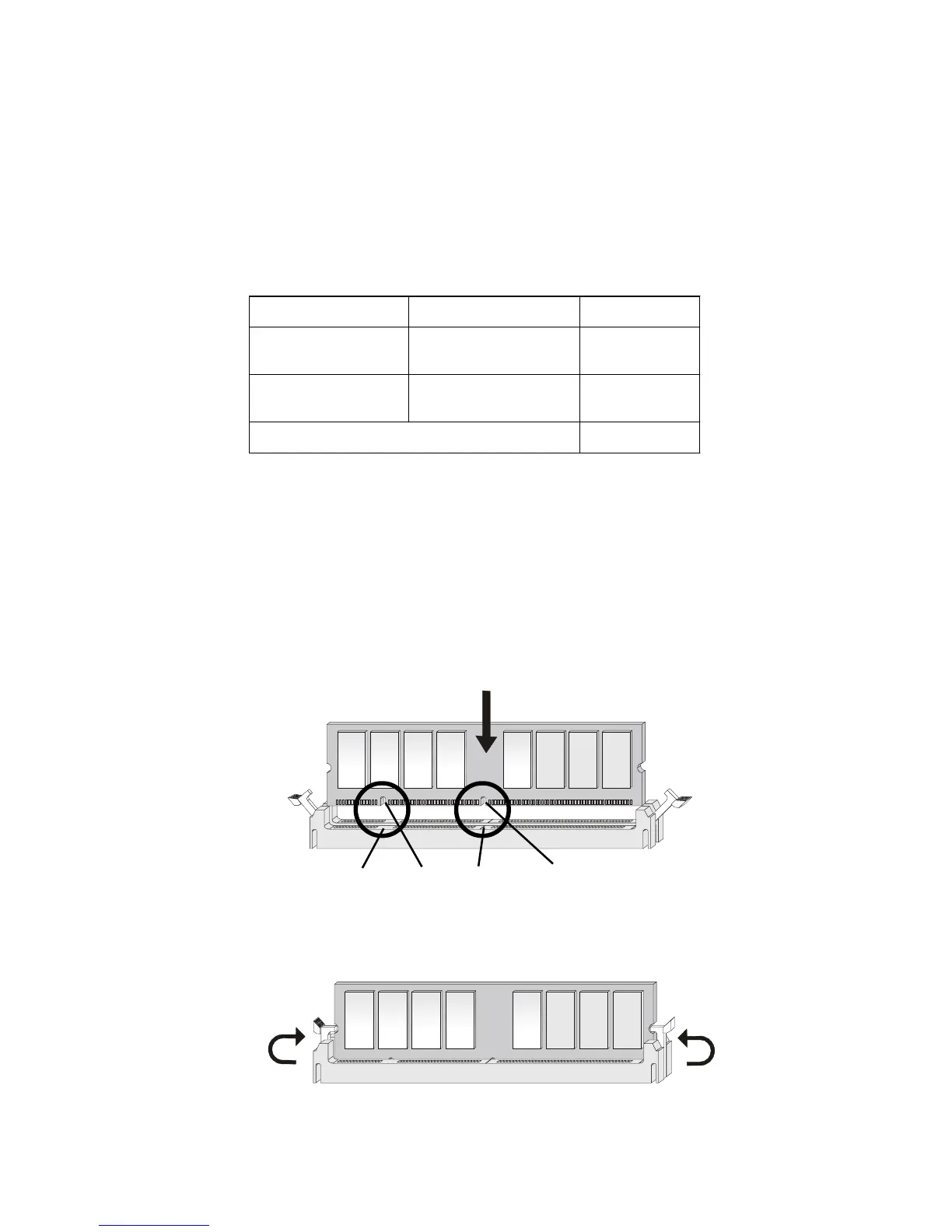

MSI MS-6378 - DIMM Module Combination; Installing DIMM Modules

Chapter 2
2-6
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-
sided modules to meet your own needs.
Memory modules can be installed in any combination as follows:
Slot Memory Module Total Memory
DIMM 1
(Bank 0 & 1)
S/D 32MB~512MB
DIMM 2
(Bank 2 & 3)
S/D 32MB~512MB
Maximum System Memory Supported
32MB~1GB
DIMM Module Combination
S: Single Side D: Double Side
1. Insert the DIMM memory module vertically into the DIMM slot. Then push
it in.
2. The plastic clip at each side of the DIMM slot will automatically close.
Installing DIMM Modules
The DIMM slot has 2 Notch Keys “VOLT and DRAM”. The module will
only fit in the right orientation.
VOLT
notch
DRAM
notch
