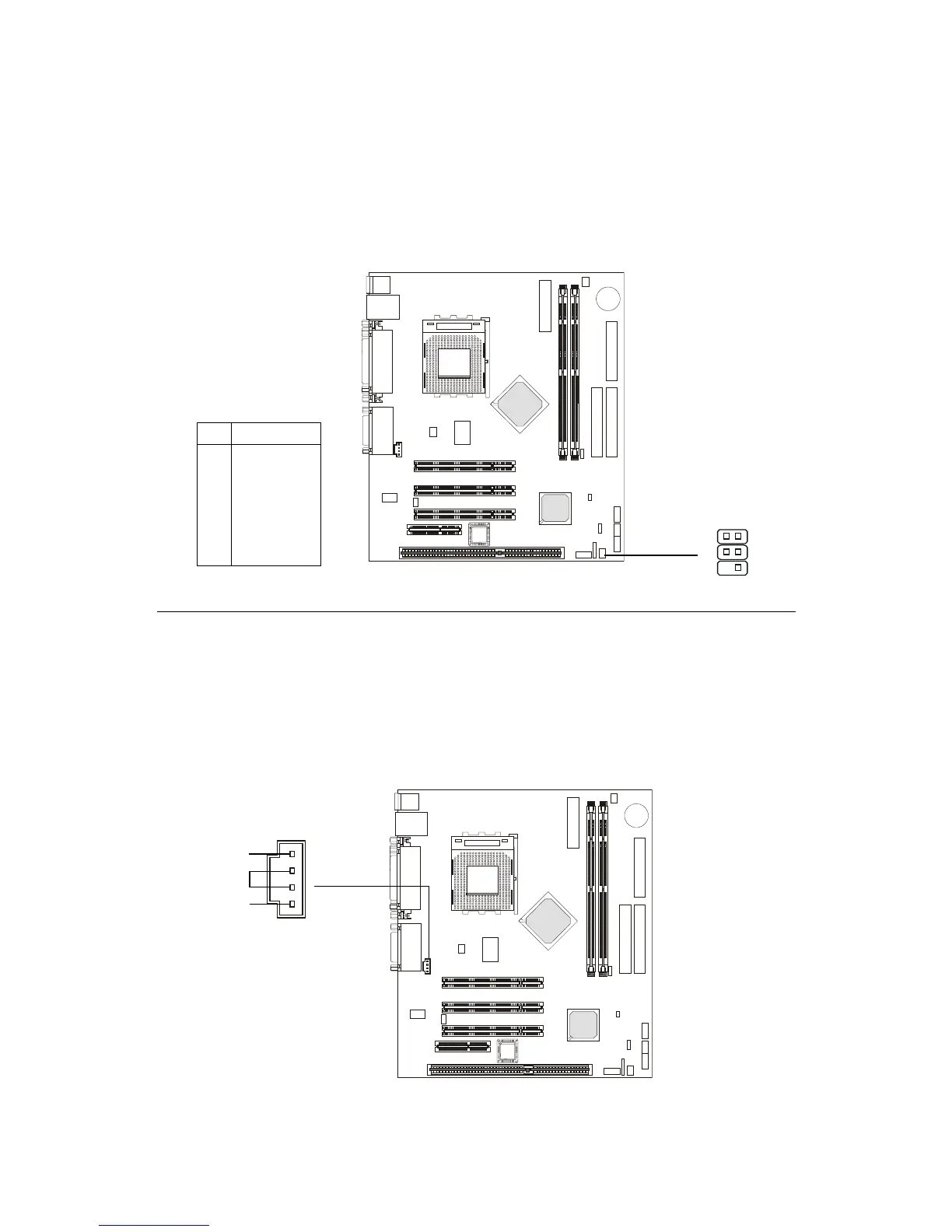

IrDA Infrared Module Header: JIR1

The connector allows you to connect to IrDA Infrared module. You must

configure the setting through the BIOS setup to use the IR function. JIR1 is

compliant with Intel

Front Panel I/O Connectivity Design Guide.

CD-In Connector: JCD1

JCD1 connector is for CD-ROM audio connector.

JCD1

GND

Pin Signal

1NC

2NC

3 VCC

4 GND

5 IRTX

6 IRRX

JIR1 Pin Definition

JIR1

2 1

6 5
