Digital Audio Output (2-Channel only)
For digital audio output, use the SPDIF (Sony & Philips Digital
Interface) connectors supplied by S-Bracket. First, connect the SPDIF
speakers to the appropriate SPDIF jack, and then select the audio channel
you desire through the control panel of speakers. The SPDIF connectors
support 2-channel audio operation only.
S-Bracket offers two types of SPDIF jacks: one for fiber-optic cable
and the other for coaxial cable. Select the connector according to the type of
your SPDIF speakers.

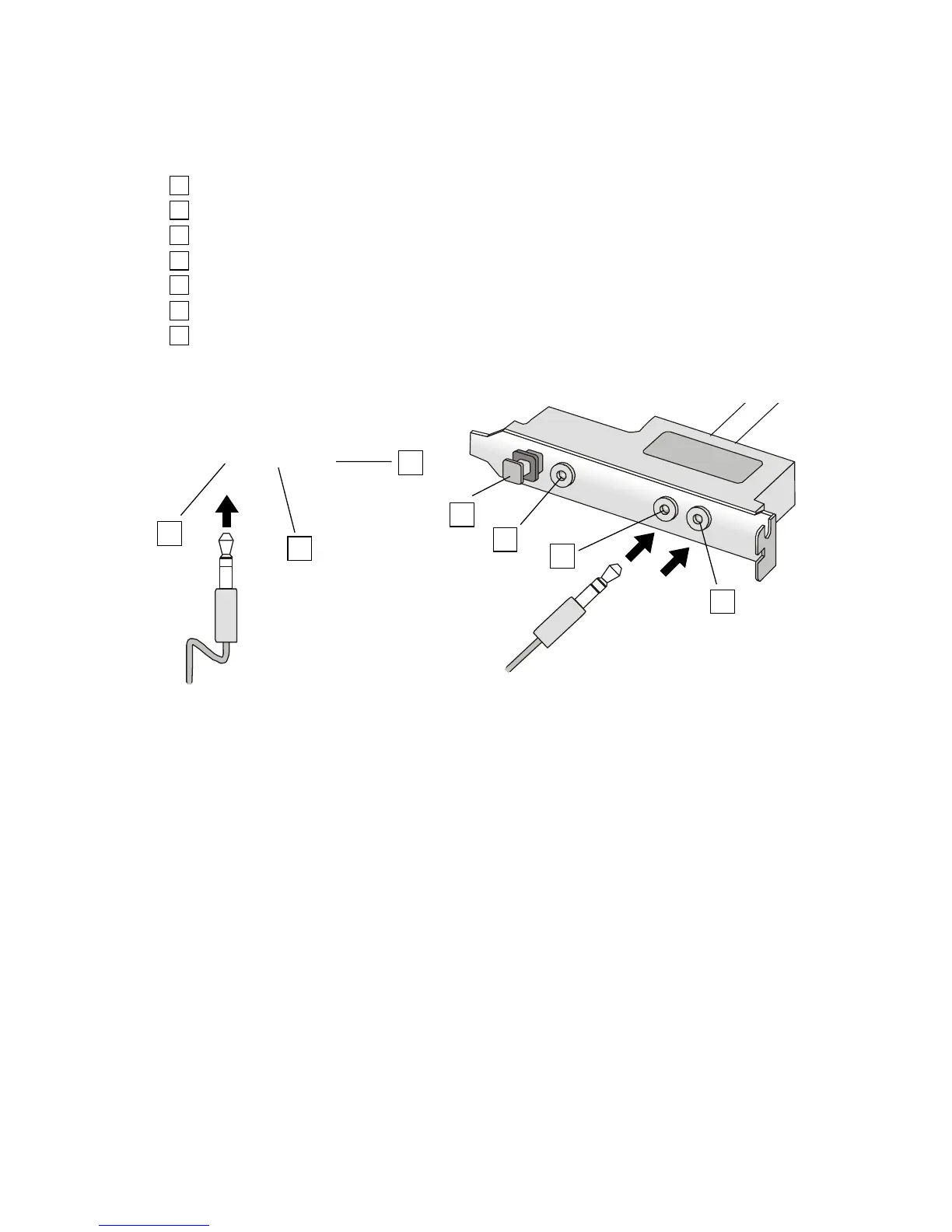

6-Channel Analog Audio Output
Description:
Connect two speakers to back panel’s Line Out
connector and four speakers to both Line Out
connectors of S-Bracket.
1
2
3
Back Panel S-Bracket
1 Line Out (Front channels)
2 Line In
3 MIC
4 Optical SPDIF jack
5 Coaxial SPDIF jack
6 Line Out (Center and Subwoofer channel)
7 Line Out (Rear channels)
6
7
4
5
