Hardware Setup MS-98F3

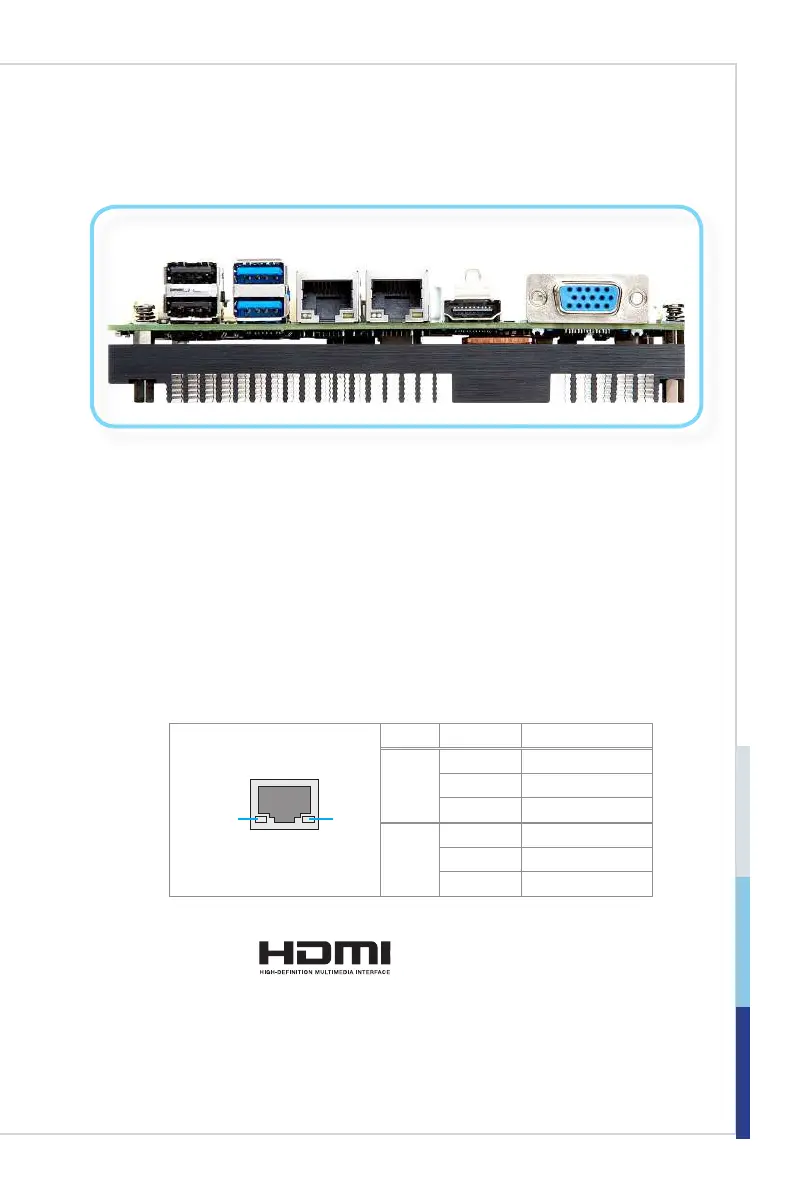

Rear Panel I/O
USB 3.0
Port
VGA Port
USB 2.0
Port
GbE RJ45 Port
HDMI Port
h USB 2.0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such as key-
board, mouse, or other USB-compatible devices.
h USB 3.0 Port
The USB 3.0 port is backward-compatible with USB 2.0 devices and supports
data transfer rate up to 5 Gbit/s (SuperSpeed).
h GbE RJ45 Port
The standard single RJ45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Speed LED
Active
LED
LED LED Status Description
Active
LED
Off No link
Yellow Linked
Blinking Data activity
Speed
LED
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
h HDMI Port
®
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video in-
terface capable of transmitting uncompressed streams. HDMI supports all TV
format, including standard, enhanced, or high-denition video, plus multi-channel
digital audio on a single cable.
h VGA Port
The DB15-pin female connector is provided for monitors.
