MSI MS-98F3 - Serial Port Power Jumper: JCOMP1, JCOMP2; LAN Configure Jumper: JLAN2

2-12
Hardware Setup MS-98F3

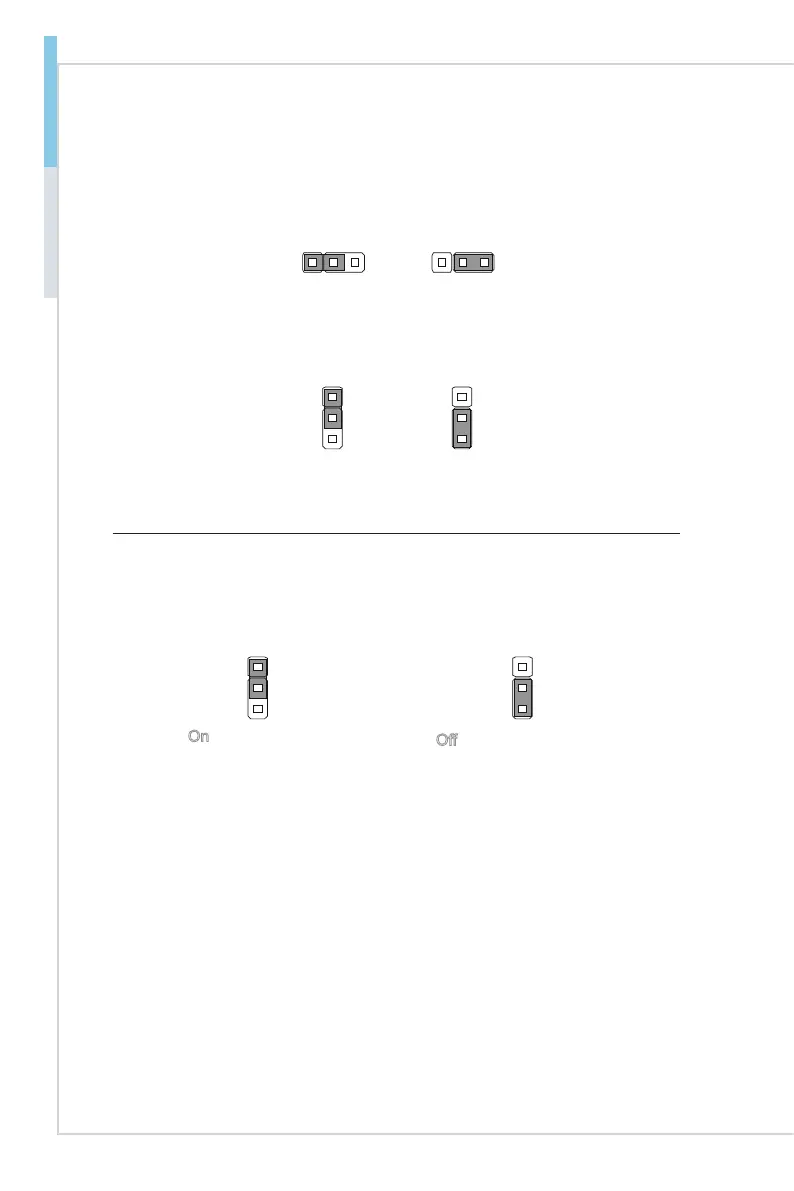

Serial Port Power Jumper: JCOMP1, JCOMP2
This jumper species the operation voltage of the serial ports.
+5V +12V
11
JCOMP2 (for COM3 ~ 4)
+5V +12V
11
JCOMP1 (for COM1 ~ 2)
LAN Congure Jumper: JLAN2
Use this jumper to specify the operation for LAN2 controlled by Intel I210-AT
chipset.
1
JLAN2
(for LAN2)
On: Enable security
and the INVM lock.
1
Off: Disable security and
the INVM lock.
(non-secure mode)
