2-6
Hardware Setup MS-S0121

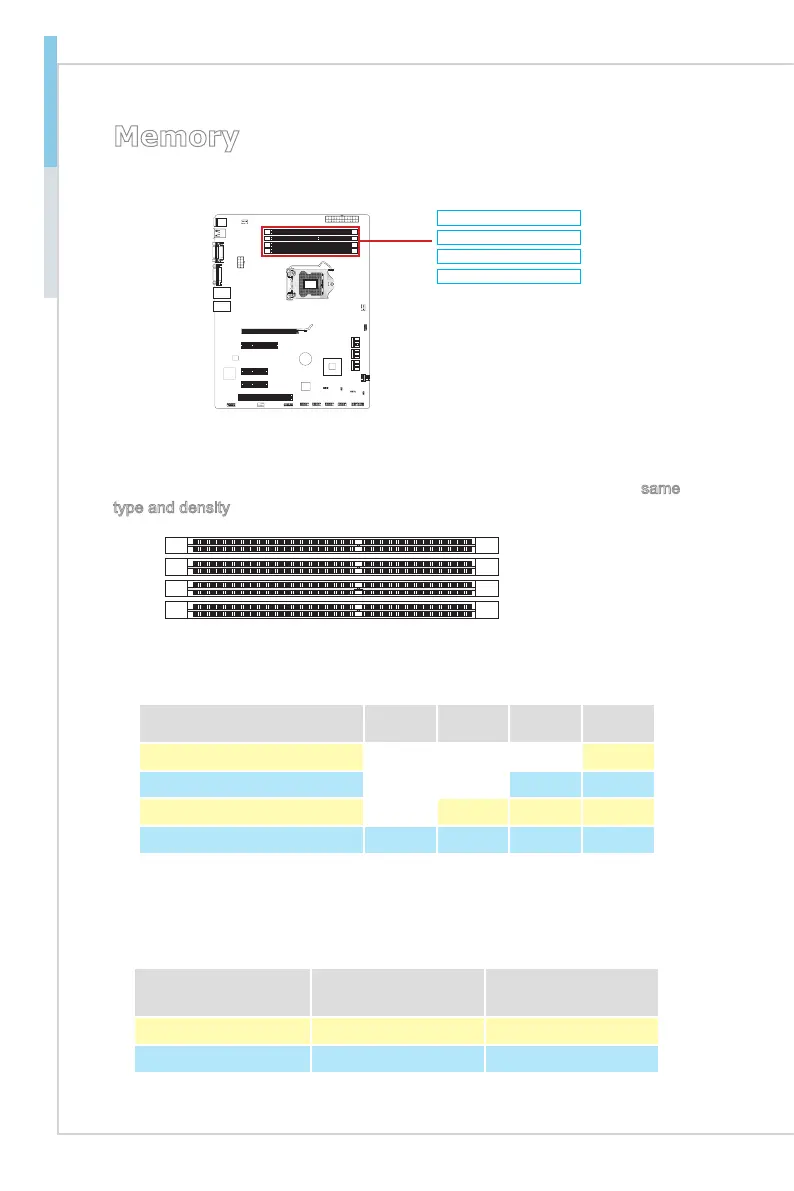

Memory
These DIMM slots are intended for memory modules.
DIMM4 (ch B)
DIMM3 (ch A)
DIMM2 (ch B)
DIMM1 (ch A)
Dual-Channel Mode
In Dual-Channel mode, make sure that you install memory modules of the same
type and density in different channel DIMM slots.
DIMM4 (Channel B)
DIMM3 (Channel A)
DIMM2 (Channel B)
DIMM1 (Channel A)
Recommended Memory Population
Number of DIMMs installed 1 2 3 4
DIMM4 (ch B) V
DIMM3 (ch A) V V
DIMM2 (ch B) V V V
DIMM1 (ch A) V V V V
Note: 1
st
population on DIMM2/ 3/ 4 will also boot.
DIMM Module Support
Ranks per DIMM &
Data Width
1 DPC
(DIMM per Channel)
2 DPC
(DIMM per Channel)
SRx4 unbuffered ECC 1066, 1333, 1600 1066, 1333, 1600
DRx4 unbuffered ECC 1066, 1333, 1600 1066, 1333, 1600
Note: Ivy Bridge supports up to 1600MHz.
