MSI P35 Neo series

2-7
Hardware Setup
Memory
DDR2
240-pin, 1.8V
1
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
2
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
3
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
64x2=128 pin56x2=112 pin
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://www.msi.com.
tw/testreport.htm

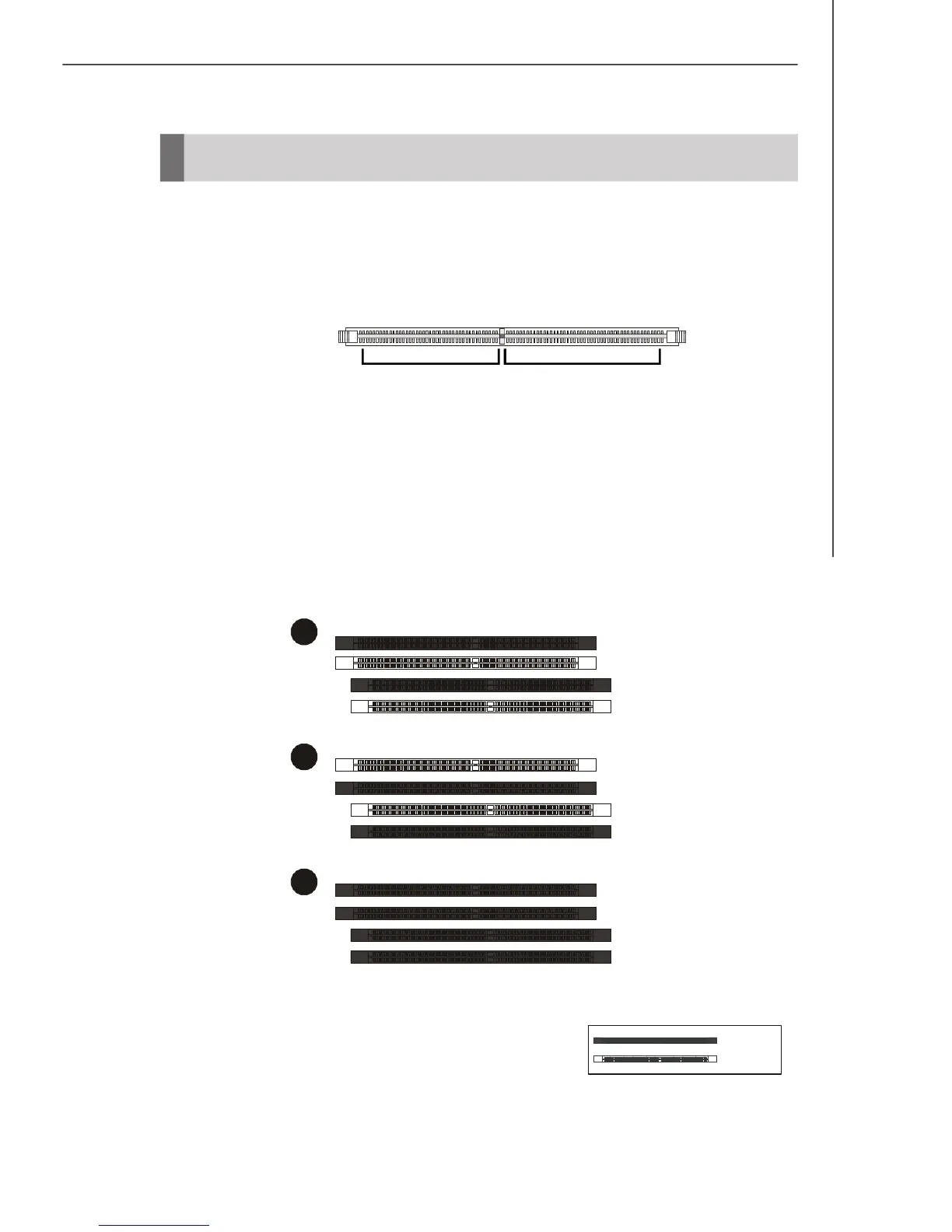

Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
Empty
Installed
