MS-7360 Mainboard

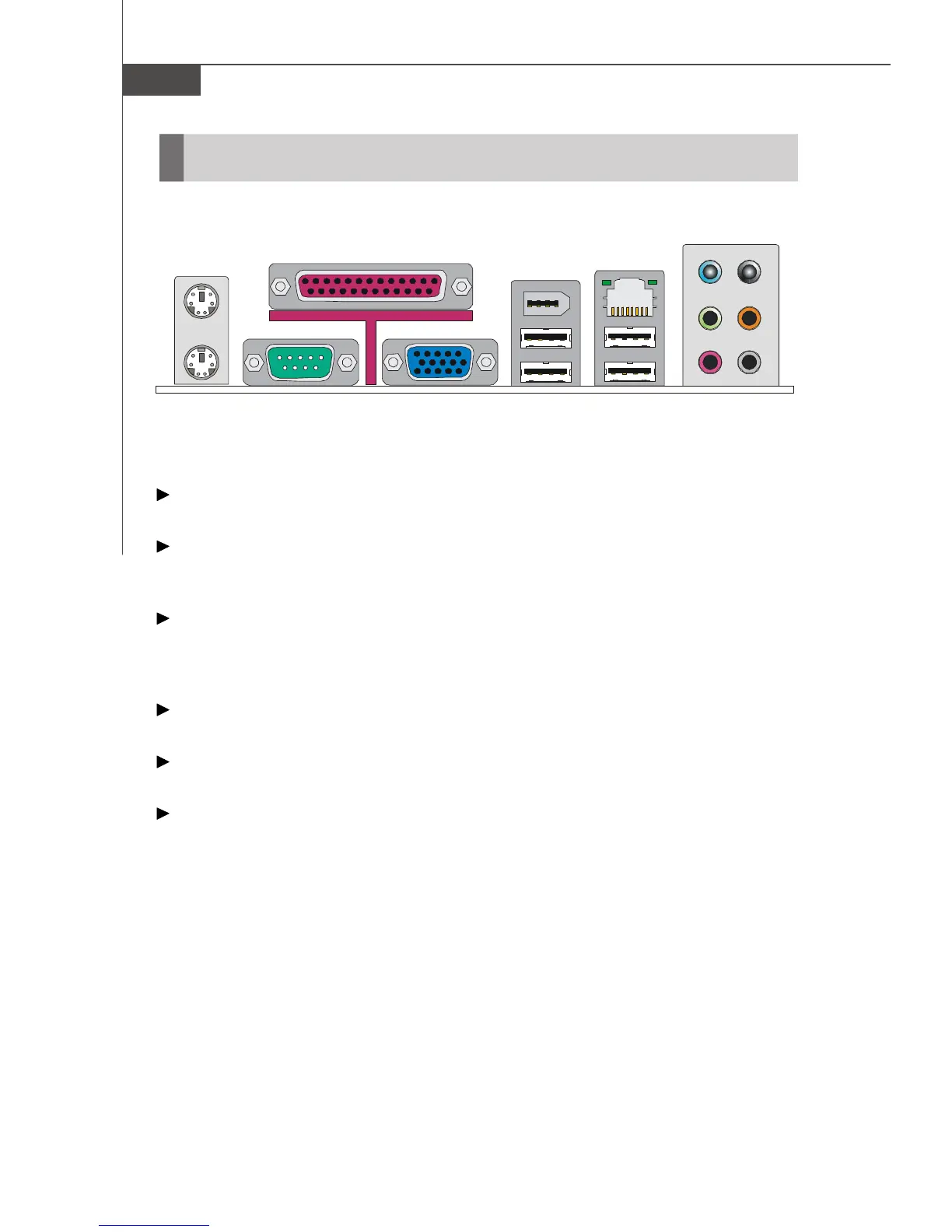

Back Panel
Keyboard
USB Ports
Line-In
Mouse
LAN
Parallel Port
RS-Out
CS-Out
SS-Out
Line-Out
Mic
VGA Port
(optional)
Mouse/Keyboard Connector
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
Parallel Port Connector
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP)
and Extended Capabilities Parallel Port (ECP) mode.
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Port (for G33 Neo Series)
The DB15-pin female connector is provided for monitor.
1394 Port (optional)
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
Serial Port
(optional)
1394 Port
