MSI PRO H610M-E DDR4 User Manual

9

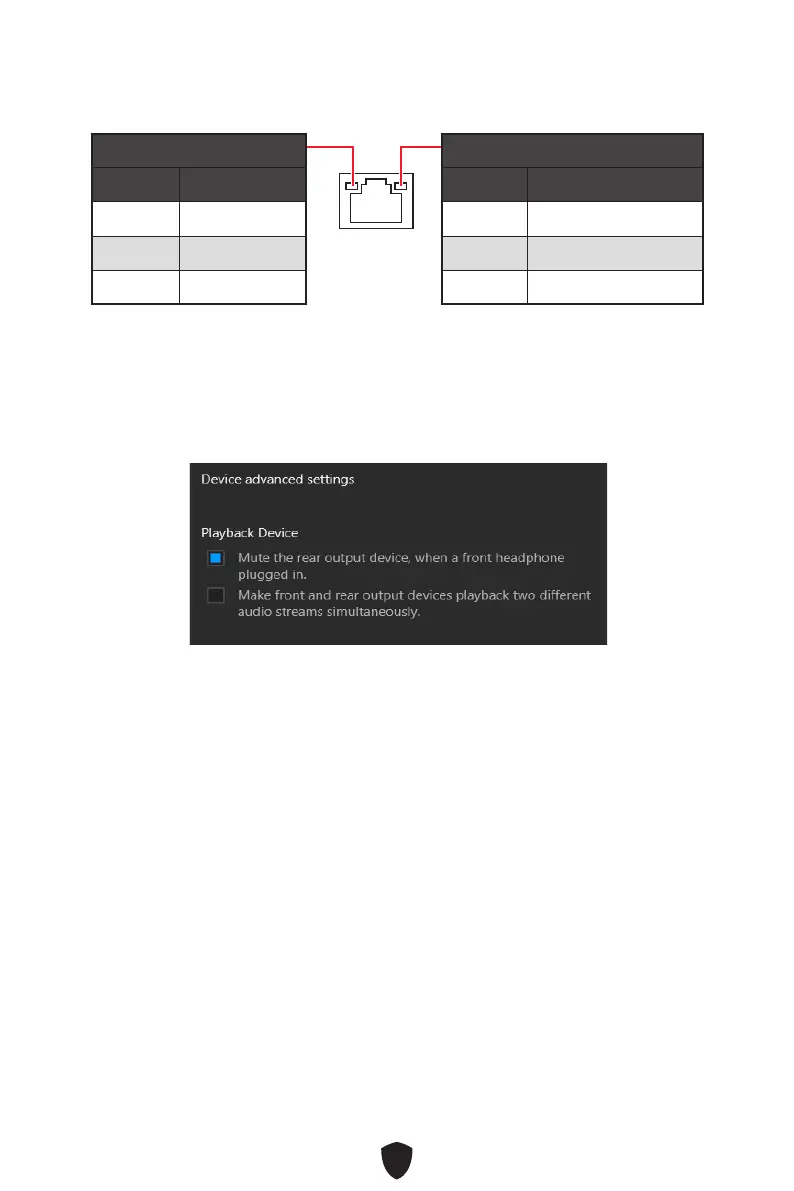

LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.

MSI PRO H610M-E DDR4 Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H610
Memory Type	DDR4
Memory Slots	2
Max Memory	64GB
Socket	LGA 1700
PCIe x16 Slots	1
PCIe x1 Slots	1
SATA Ports	4
M.2 Slots	1
Audio	Realtek ALC897 Codec
Video Outputs	HDMI, VGA
LAN	Realtek RTL8111H
USB Ports	6 (USB 2.0), 4 (USB 3.2 Gen1)
