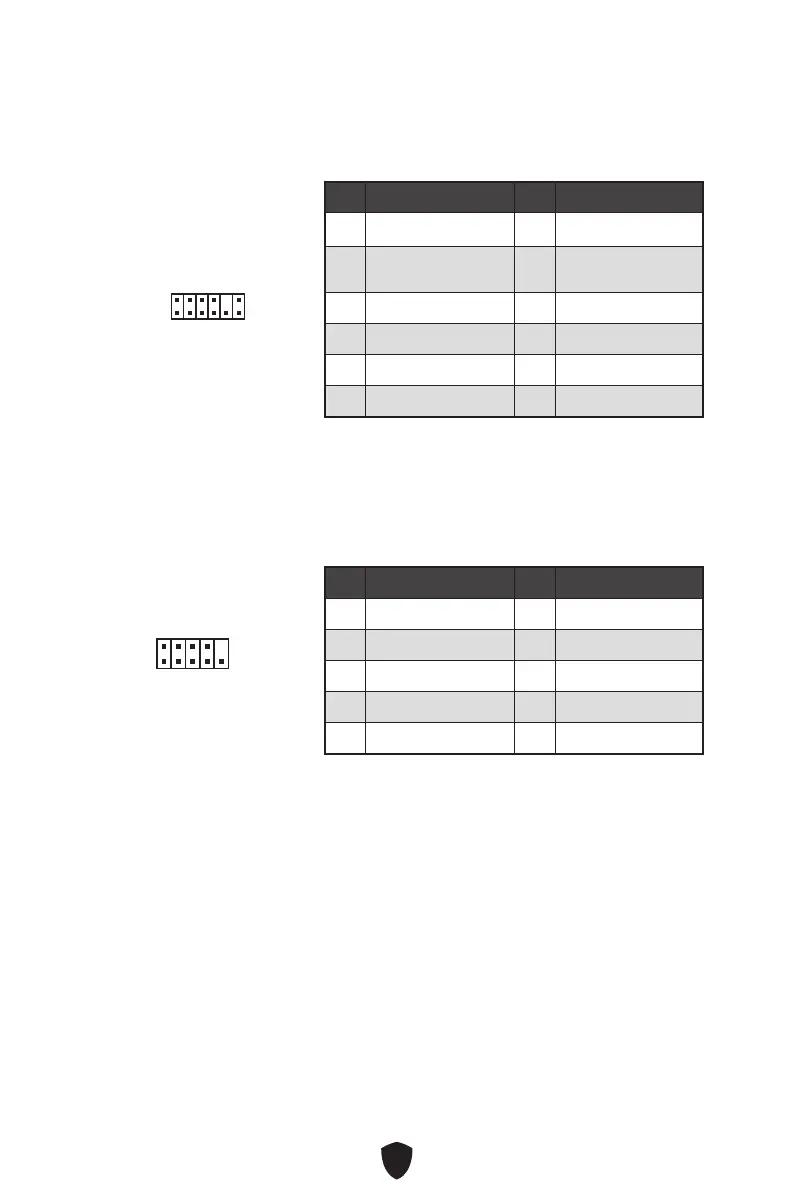

MSI PRO H610M-E DDR4 - Jcom1: シリアルポートコネクター; Jtpm1: Tpmモジュールコネクター

20

󳲜󶬖󸒏󶩆
󲀏󵒵󱚘
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

󱟔󳲜󶬖
1
2 10
9
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
