MSI RC410 Series User Manual

2-9
Hardware Setup

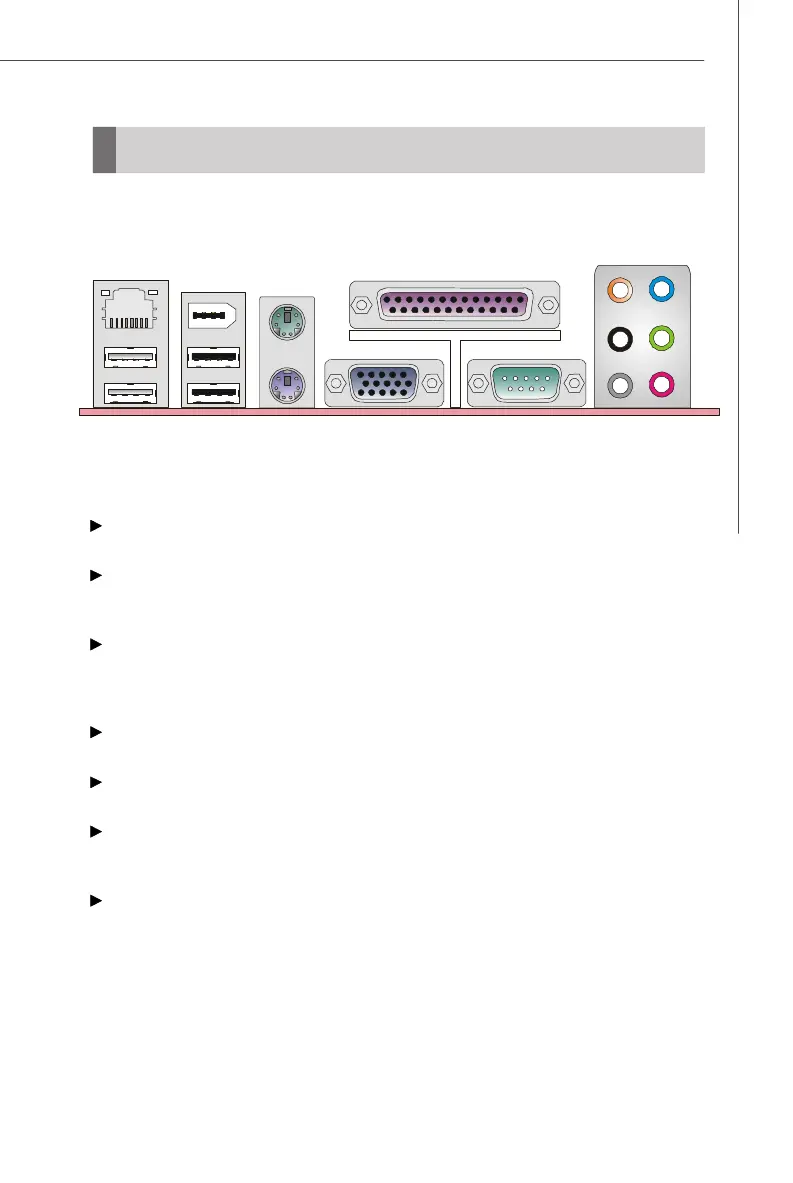

Back Panel
Mouse/Keyboard Connector
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
Parallel Port Connector
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP)
and Extended Capabilities Parallel Port (ECP) mode.
Serial Port Connector
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Connector
The DB15-pin female connector is provided for VGA monitors.
IEEE 1394 Port
The 1394 port on the back panel provides connection to 1394 devices.
USB Connectors
The OHCI (Open Host Controller Interface) Universal Serial Bus root is for attaching
USB devices such as keyboard, mouse, or other USB-compatible devices.
LAN (RJ-45) Jack
The standard RJ-45 jack is for connection to single Local Area Network (LAN). You
can connect a network cable to it.
KeyboardUSB Ports
L-In
Mouse
Parallel
1394 Port
(Optional)
10/100 or
Gb LAN
(Optional)
VGA Port Serial Port
RS-Out
(Optional)
CS-Out
(Optional)
Side
Surround
(Optional)
L-Out
Mic
