MS-7248 Mainboard
2-14
PIN SIGNAL DESCRIPTION
1 HD_LED + Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED - Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW - Reset Switch low reference pull-down to GND
6 PWR_SW + Power Switch high reference pull-up
7 RST_SW + Reset Switch high reference pull-up
8 PWR_SW - Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1 Pin Definition

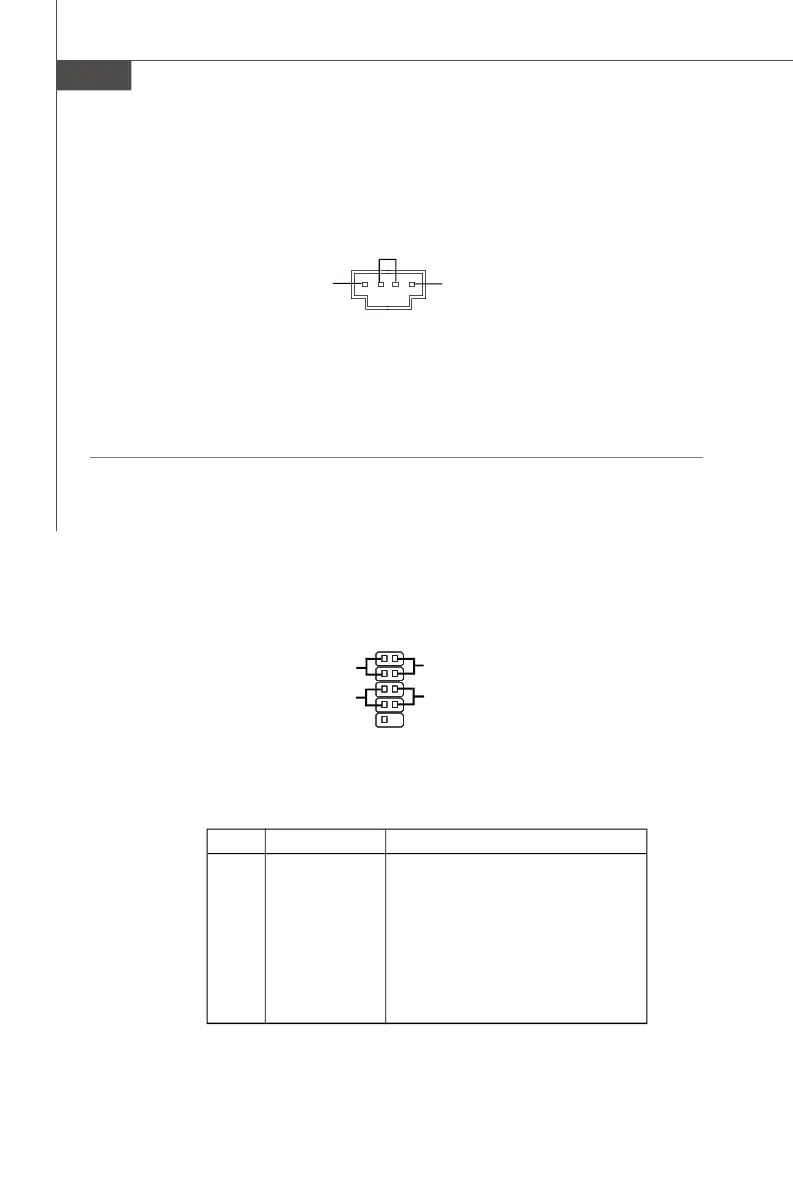

Front Panel Connectors: JF_P1
The mainboard provides one front panel connector for electrical connection to the
front panel switches and LEDs. The JF_P1 is compliant with Intel
®
Front Panel I/O
Connectivity Design Guide.
1
2
9
10
JFP1
HDD
LED
Reset
Switch
Power
LED
Power
Switch
+
-
-
+
+
-
JCD1
GND
R
L
CD-In Connector: JCD1
This connector is provided for CD-ROM audio.
