MS-7248 Mainboard
2-12
PIN SIGNAL PIN SIGNAL
1 GND 2 RXN
3 RXP 4 GND
5 TXN 6 TXP
7 GND

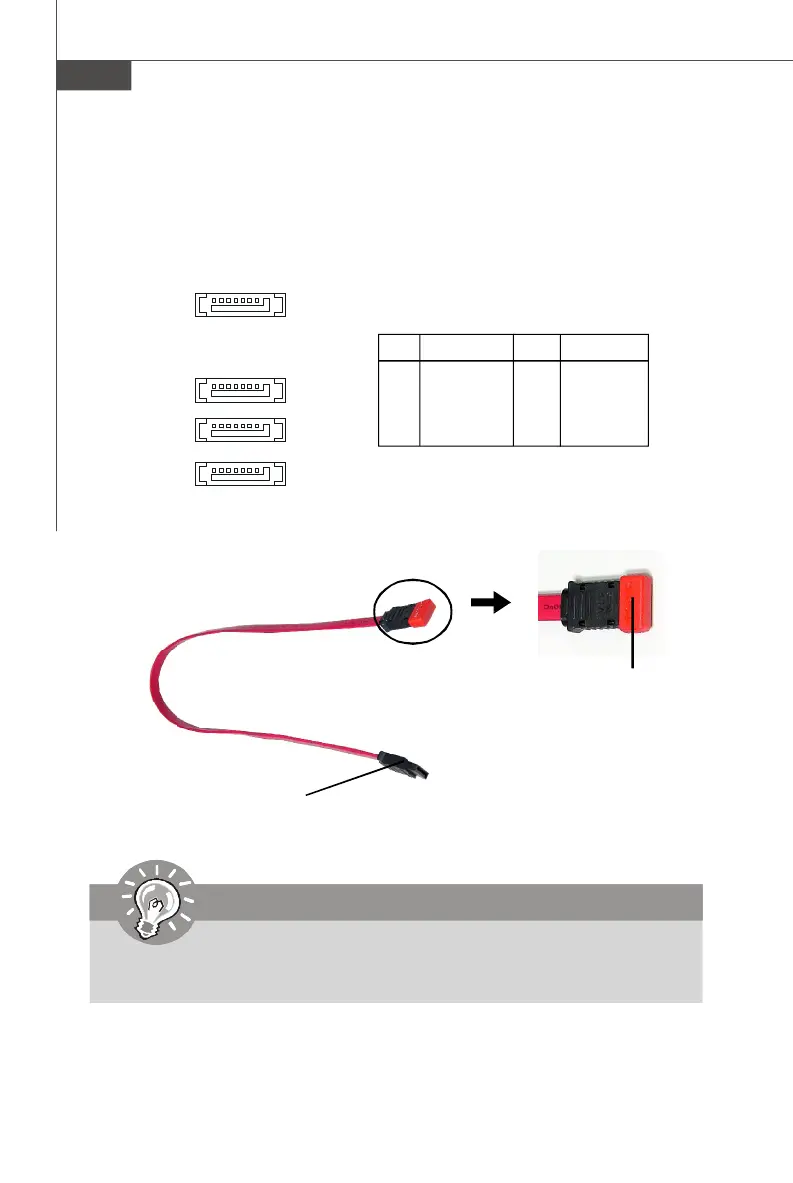

SATA1~ SATA4 Pin Definition
Connect to SATA1/2/3/4
Take out the dust cover
and connect to the hard
disk devices
Serial ATA cable
Serial ATA Connectors: SATA1~SATA4
SATA1~SATA4 are high-speed Serial ATA interface ports. Each supports 1
st
genera-
tion serial ATA data rates of 150MB/s and is fully compliant with Serial ATA 1.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
SATA4
SATA3
1
7
SATA2
SATA1
To Next Page
