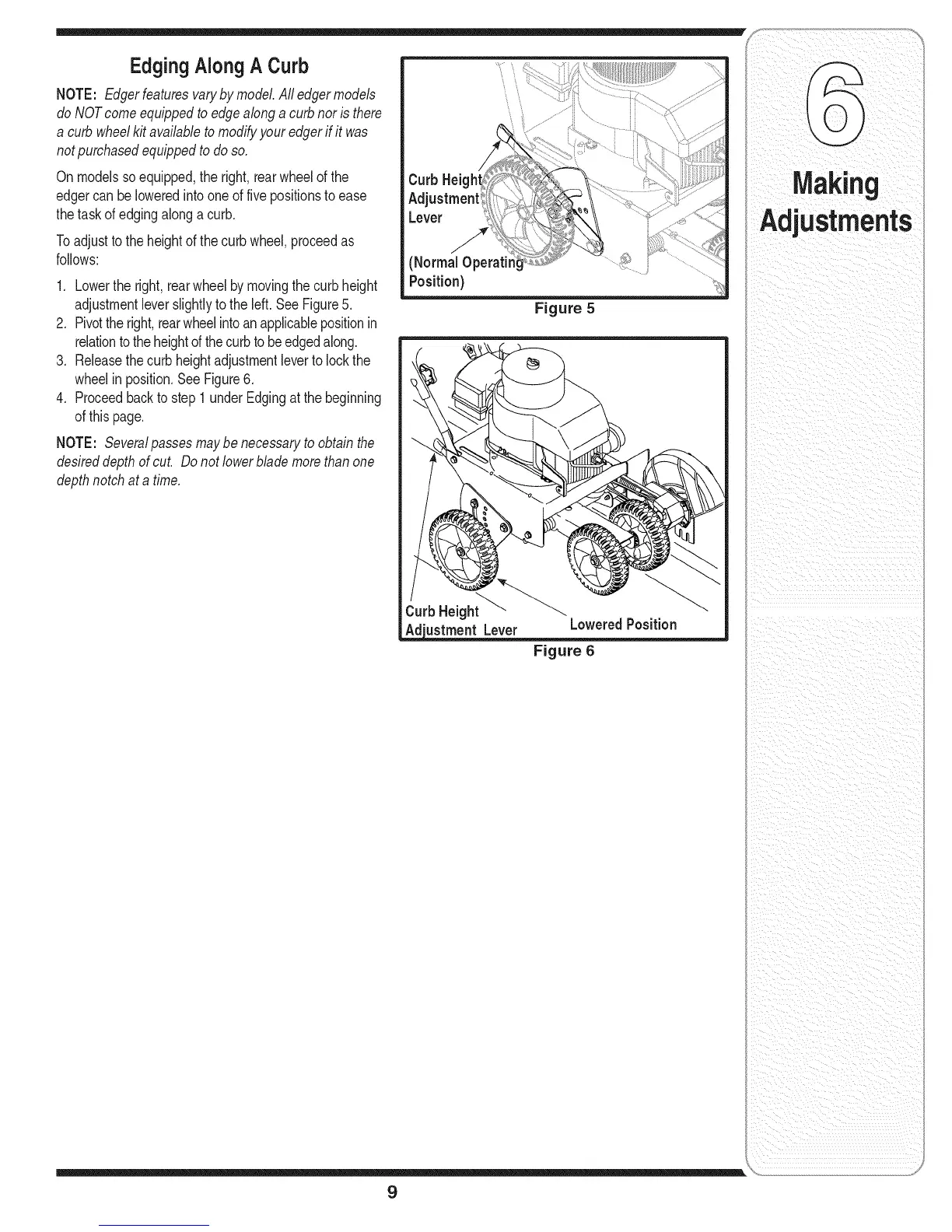

EdgingAlongA Curb
NOTE: Edgerfeaturesvarybymodel.All edgermodels
do NOTcomeequippedto edgealonga curbnoris there
a curb wheelkit availableto modifyyour edgerif it was
notpurchasedequippedtodoso.
Onmodelssoequipped,the right,rearwheelof the
edgercanbe loweredintooneoffivepositionstoease
thetaskofedgingalonga curb.
Toadjusttotheheightofthe curbwheel,proceedas
follows:
1. Lowerthe right,rearwheelby movingthecurb height
adjustmentleverslightlytothe left. SeeFigure5.
2. Pivottheright,rearwheelintoanapplicablepositionin
relationtotheheightof thecurbto beedgedalong.
3. Releasethecurbheightadjustmentleverto lockthe
wheelin position.SeeFigure6.
4. Proceedbackto step1 underEdgingatthebeginning
ofthispage.
NOTE: Severalpassesmaybenecessaryto obtainthe
desireddepthofcut. Do not lowerblademorethanone
depthnotchata time.
Curb Neigh
Adjustment
Lever
ustment Lever
Figure 5
LoweredPosition
Figure 6
9
i
.Makng
Adjustments
