MTD 25B-520A700 - Page 10

WARNING
Rotatingcuttingblade
may throwobjects
causingpersonal
injury.Keepareaclear
of bystanders anddo
not operatewithout
guardsin place.

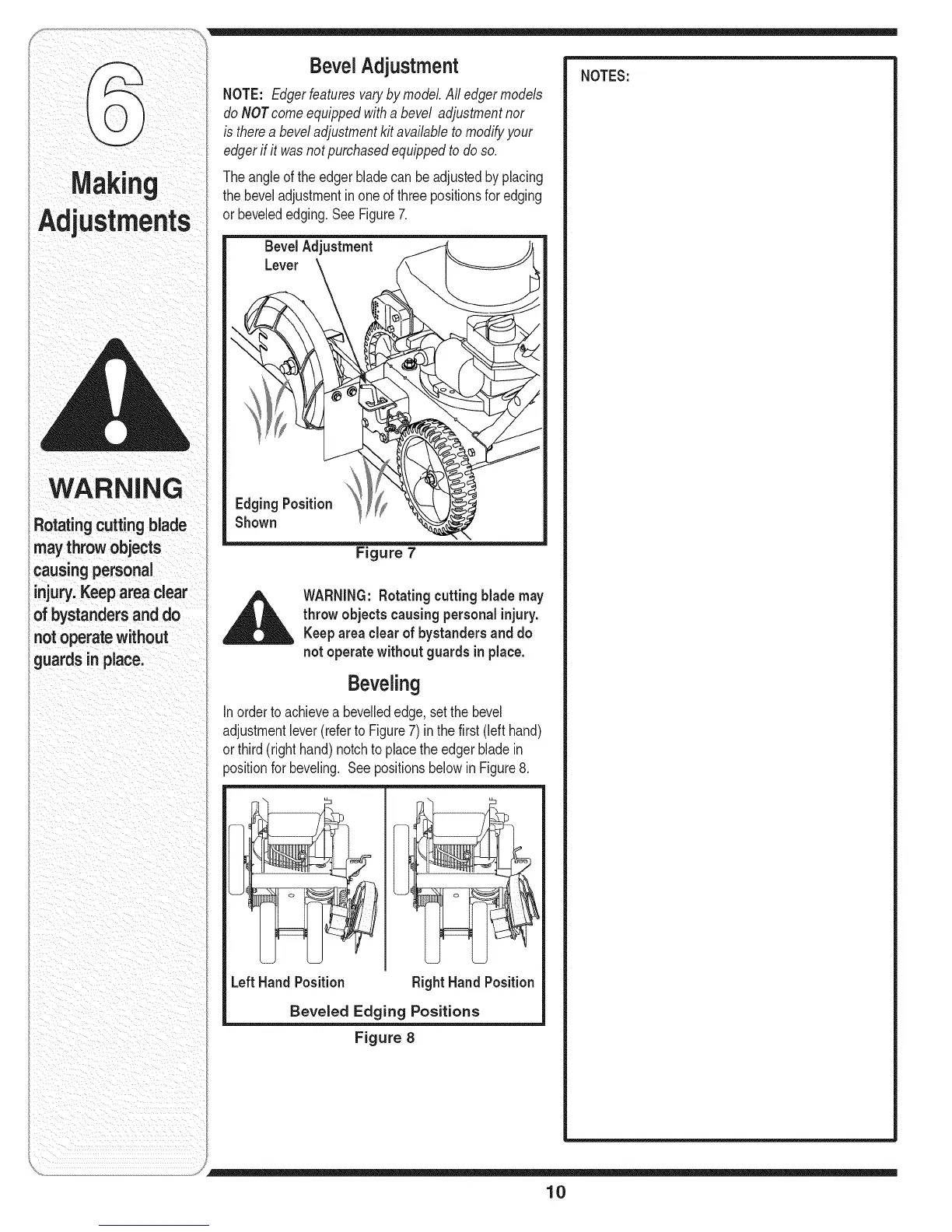

BevelAdjustment
NOTE: Edgerfeaturesvarybymodel.All edgermodels
do NOTcomeequippedwitha bevel adjustmentnor
is therea beveladjustmentkitavailabletomodifyyour
edgerifit wasnotpurchasedequippedtodoso.
Theangleoftheedgerbladecanbeadjustedbyplacing
thebeveladjustmentin oneofthreepositionsfor edging
or bevelededging.SeeFigure7.
Bevel Adjustment
Lever
Figure 7
,_ WARNING: Rotating cuttingblade may
throw objects causingpersonalinjury.
Keepareaclear of bystanders and do
not operatewithout guards inplace.
Beveling
inorderto achievea bevellededge,setthebevel
adjustmentlever(referto Figure7) inthefirst(left hand)
orthird(righthand)notchtoplacetheedgerbladein
_ositionforbeveling.Seepositionsbelowin Figure8.
LeftHandPosition Right Hand Position
Beveled Edging Positions
Figure 8
NOTES:
10
