Clutch and Upper Drive Shaft
47
Drive shaft assembly
There are two types of drive shaft assemblies available with the P25 series of engines:
• Straight shaft
• Curve shaft
NOTE: The procedure to remove the drive shaft assembly from the engine is the same for both styles.
NOTE: The drive shaft assembly consists of the drive shaft housing and a flexible inner drive shaft. The hous-
ing and the drive shaft are serviced separately.
To remove the drive shaft assembly:
1. Remove the six screws in the grip with a T-20 torx
driver. See Figure 7.1.
2. Let the grip hang off to the side.
NOTE: There are a five parts inside the grip assembly. Be
careful that they don’t fall out of the grip.
See Figure 7.2.

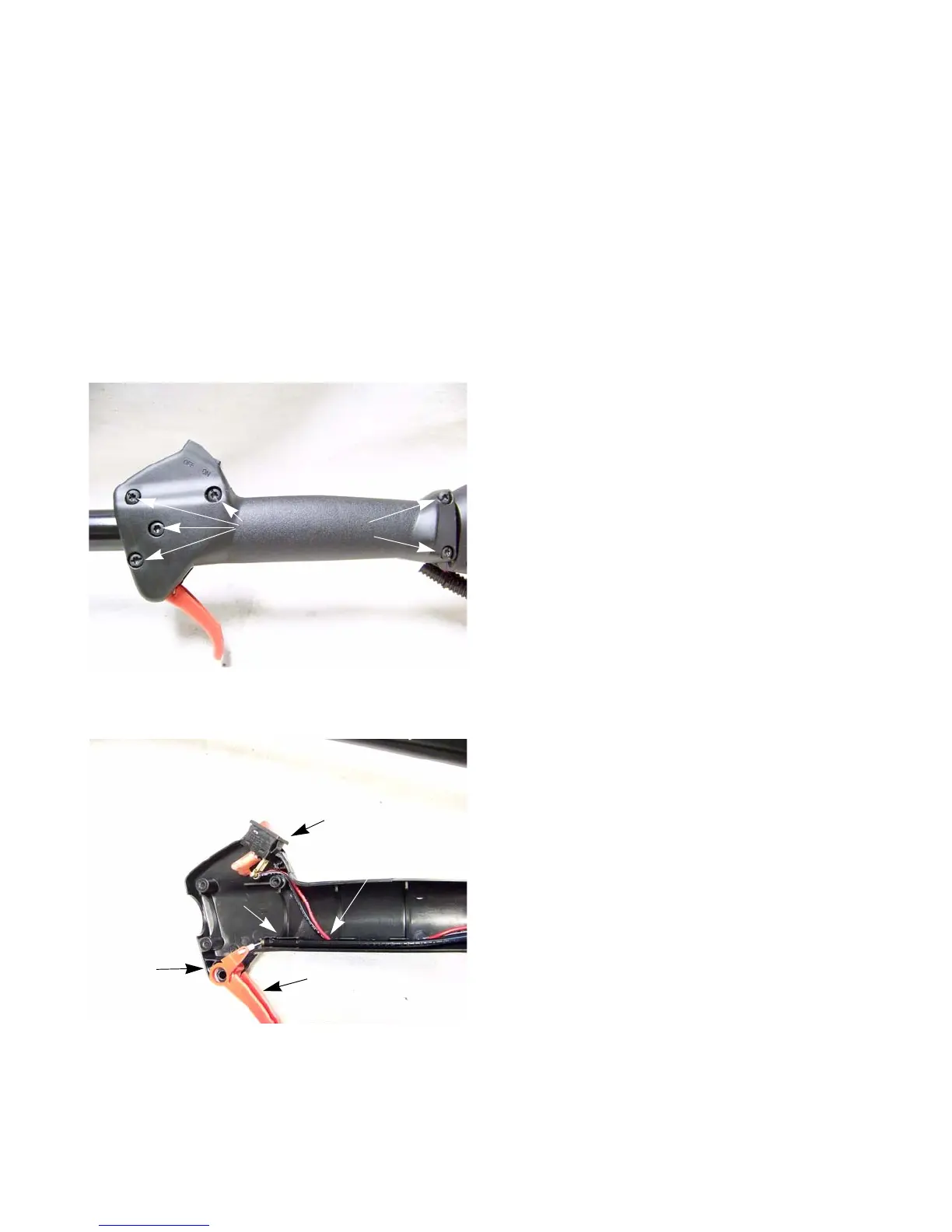

Figure 7.1
Screws for the grip
Figure 7.2
Trigger
Trigger
spring
Cable
Switch
Wires
(under the cable)
CHAPTER 7: CLUTCH AND UPPER DRIVE SHAFT
