Recoil Starter Removal
To remove the starter assembly:
1. Remove the clutch following the steps described in
the section on clutch removal.
NOTE: The drive shaft will come off with the clutch hous-
ing.
2. Remove the screw that hold the engine cover to the
starter housing using a T-20 torx driver.

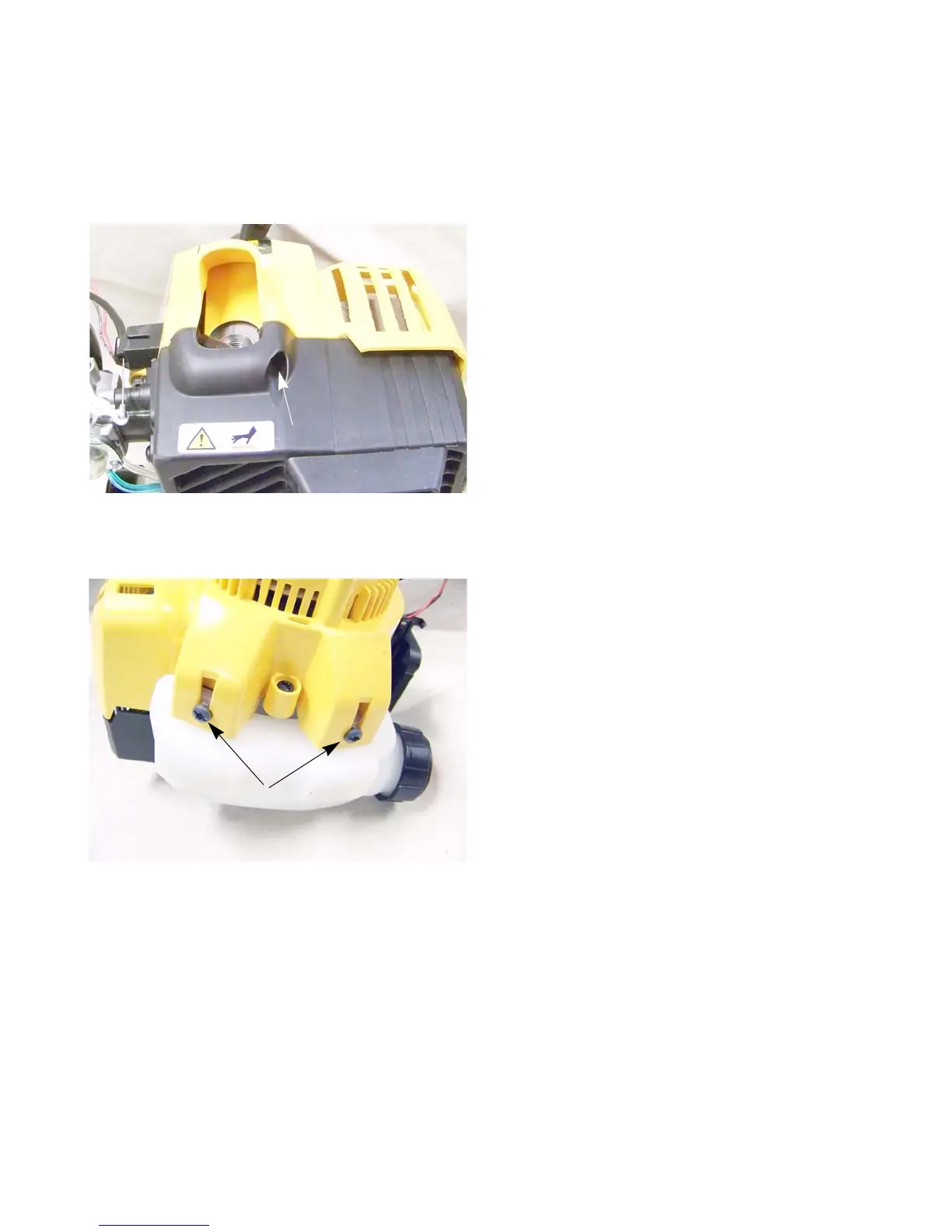

See Figure 6.1.
3. Remove the two fuel tank mounting screws using a T-
20 torx driver.
4. Slide the fuel tank out of the starter housing.
Figure 6.1
screw
Figure 6.2
Fuel tank screws
