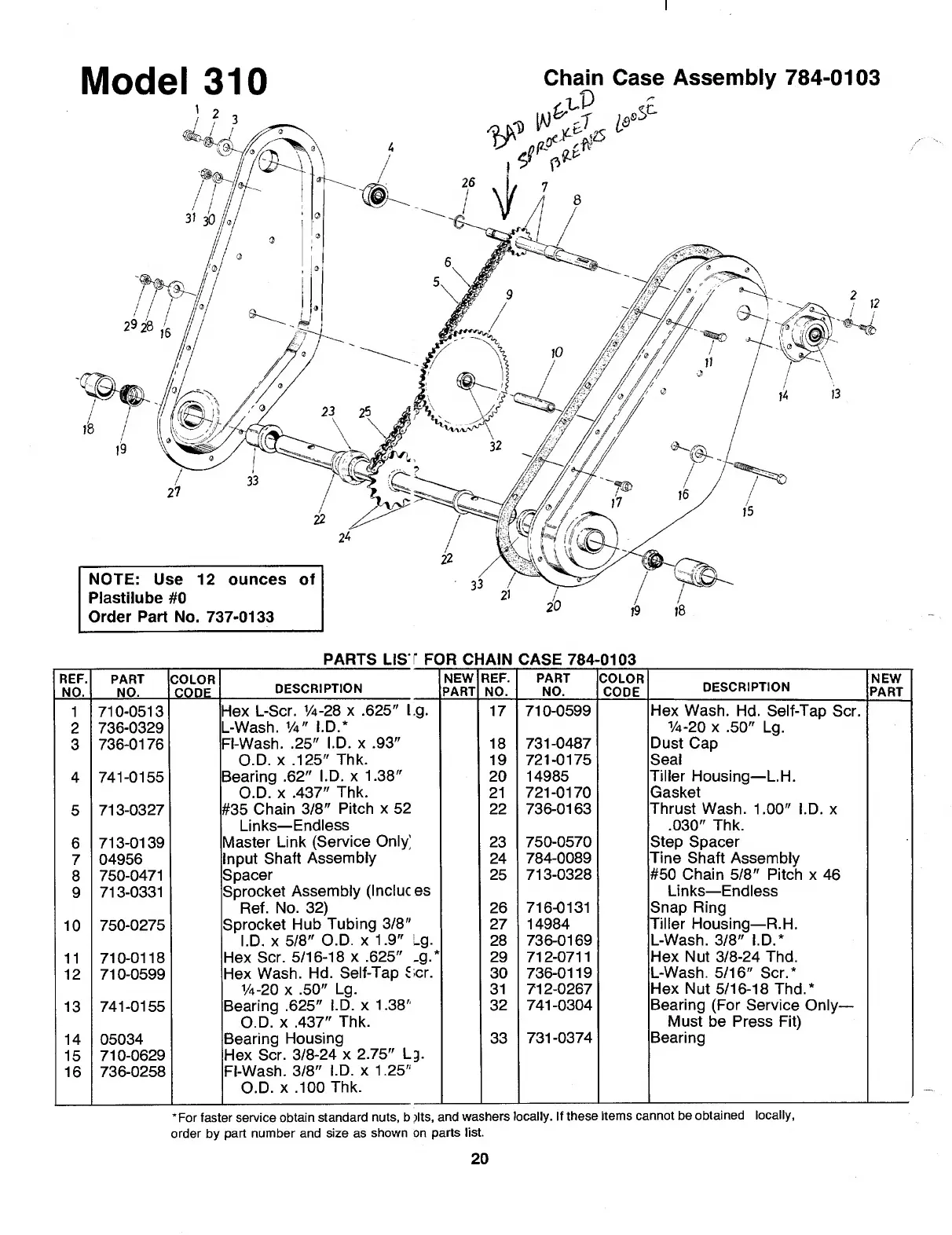

MTD 310 - Page 20

NOTE: Use 12 ounces
Plastilube #0
Order Part No. 737-0133
COLOR
CODE
710-0513
736-0329
736-0176
741-0155
713-0327
713-0139
04956
750-0471
713-0331
10 750-0275
11 710-0118
12 710-0599
13 741-0155
14 05034
15 710-0629
16 736-0258
DESCRIPTION
Hex L-Scr. y 4 - 28 x .625" l.g.
L-Wash. 1 / 4 " I.D.*
FI-Wash. .25" I.D. x .93"
O.D. x .125" Thk.
Bearing .62" I.D. x 1.38"
O.D. x .437" Thk.
#35 Chain 3/8" Pitch x 52
Links—Endless
Master Link (Service Only!
nput Shaft Assembly
Spacer
Sprocket Assembly (Indue es
Ref. No. 32)
Sprocket Hub Tubing 3/8”
I.D. x 5/8" O.D. x 1.9" Lg.
Hex Scr. 5/16-18 x .625" _g.”
Hex Wash. Hd. Self-Tap S cr.
1/4-20 x .50" Lg.
Bearing .625" I.D. x 1.38'
O.D. x .437" Thk.
Bearing Housing
Hex Scr. 3/8-24 x 2.75" Lg.
FI-Wash. 3/8" I.D. x 1.25"
O.D. x .100 Thk.
PART COLOR
NO. CODE
17 710-0599
18 731-0487
19 721-0175
20 14985
21 721-0170
22 736-0163
23 750-0570
24 784-0089
25 713-0328
26 716-0131
27 14984
28 736-0169
29 712-0711
30 736-0119
712-0267
741-0304
731-0374
DESCRIPTION
Hex Wash. Hd. Self-Tap Scr.
V4-20 x .50" Lg.
Dust Cap
Seal
Tiller Housing—L.H.
Gasket
Thrust Wash. 1.00" I.D. x
.030" Thk.
Step Spacer
Tine Shaft Assembly
#50 Chain 5/8" Pitch x 46
Links—Endless
Snap Ring
Tiller Housing—R.H.
L-Wash. 3/8" I.D.*
Hex Nut 3/8-24 Thd.
L-Wash. 5/16" Scr.*
Hex Nut 5/16-18 Thd.*
Bearing (For Service Only—
Must be Press Fit)
Bearing
*For faster service obtain standard nuts, b jits, and washers locally. If these items cannot be obtained locally,
order by part number and size as shown on parts list.
20
