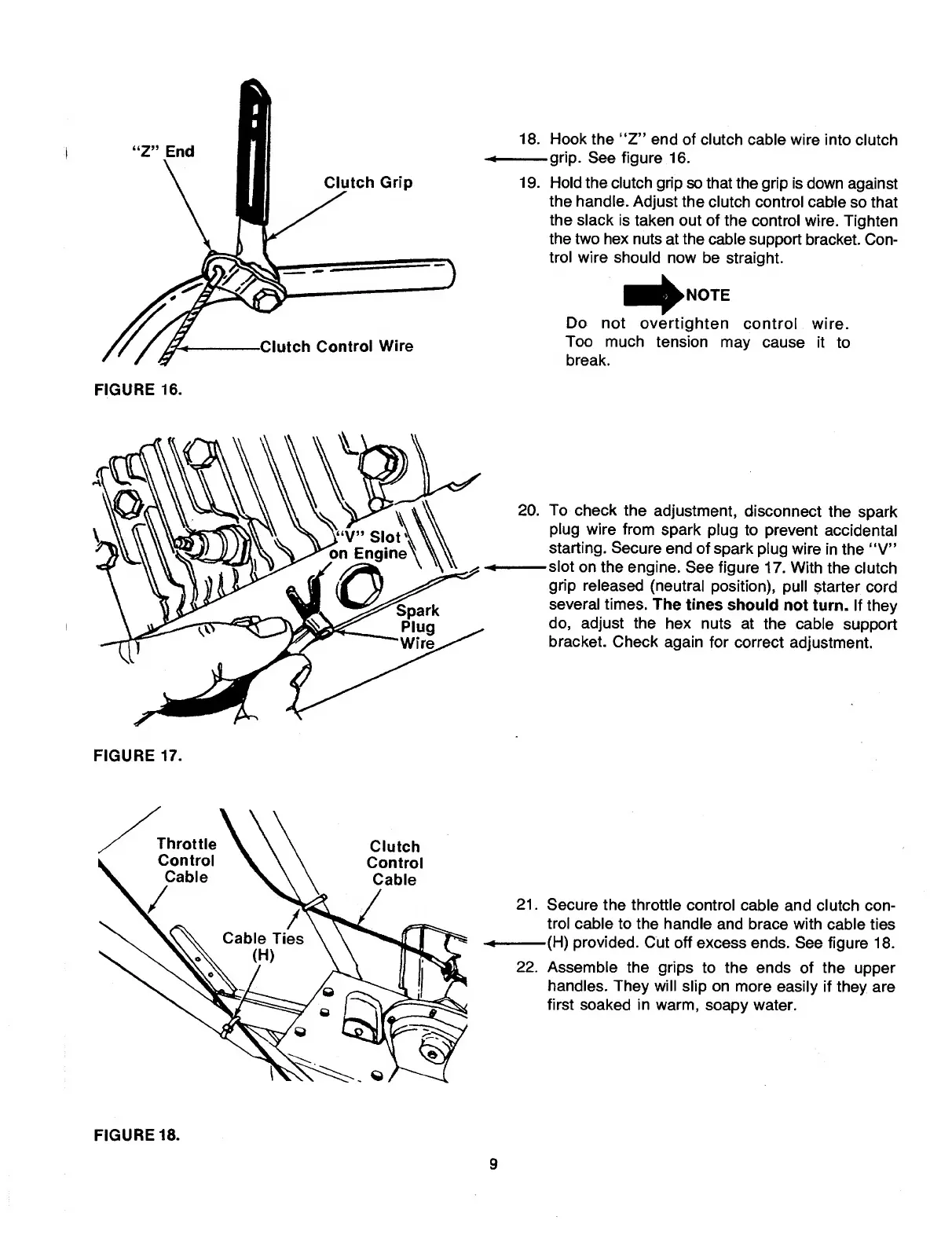

MTD 310 - Page 9

“Z” End
FIGURE 16.
18. Hook the “Z” end of clutch cable wire into clutch
-grip. See figure 16.
19. Hold the clutch grip so that the grip is down against
the handle. Adjust the clutch control cable so that
the slack is taken out of the control wire. Tighten
the two hex nuts at the cable support bracket. Con¬
trol wire should now be straight.
NOTE
Do not overtighten control wire.
Too much tension may cause it to
break.
FIGURE 18.
20. T o check the adjustment, disconnect the spark
plug wire from spark plug to prevent accidental
starting. Secure end of spark plug wire in the “V”
-slot on the engine. See figure 17. With the clutch
grip released (neutral position), pull starter cord
several times. The tines should not turn. If they
do, adjust the hex nuts at the cable support
bracket. Check again for correct adjustment.
21. Secure the throttle control cable and clutch con¬
trol cable to the handle and brace with cable ties
-(H) provided. Cut off excess ends. See figure 18.
22. Assemble the grips to the ends of the upper
handles. They will slip on more easily if they are
first soaked in warm, soapy water.
9
