MTD Engine - Series 350/450/650
21
8. FUEL SYSTEM
CAUTION: When working around the fuel sys-
tem, do not bring any sources of heat, spark, or
open flame close enough to the work are to pose
a fire hazard.
• Drain the fuel tank or clamp the fuel line before
starting work to prevent spillage.
• Dispose of drained fuel in a safe and responsible
manner.

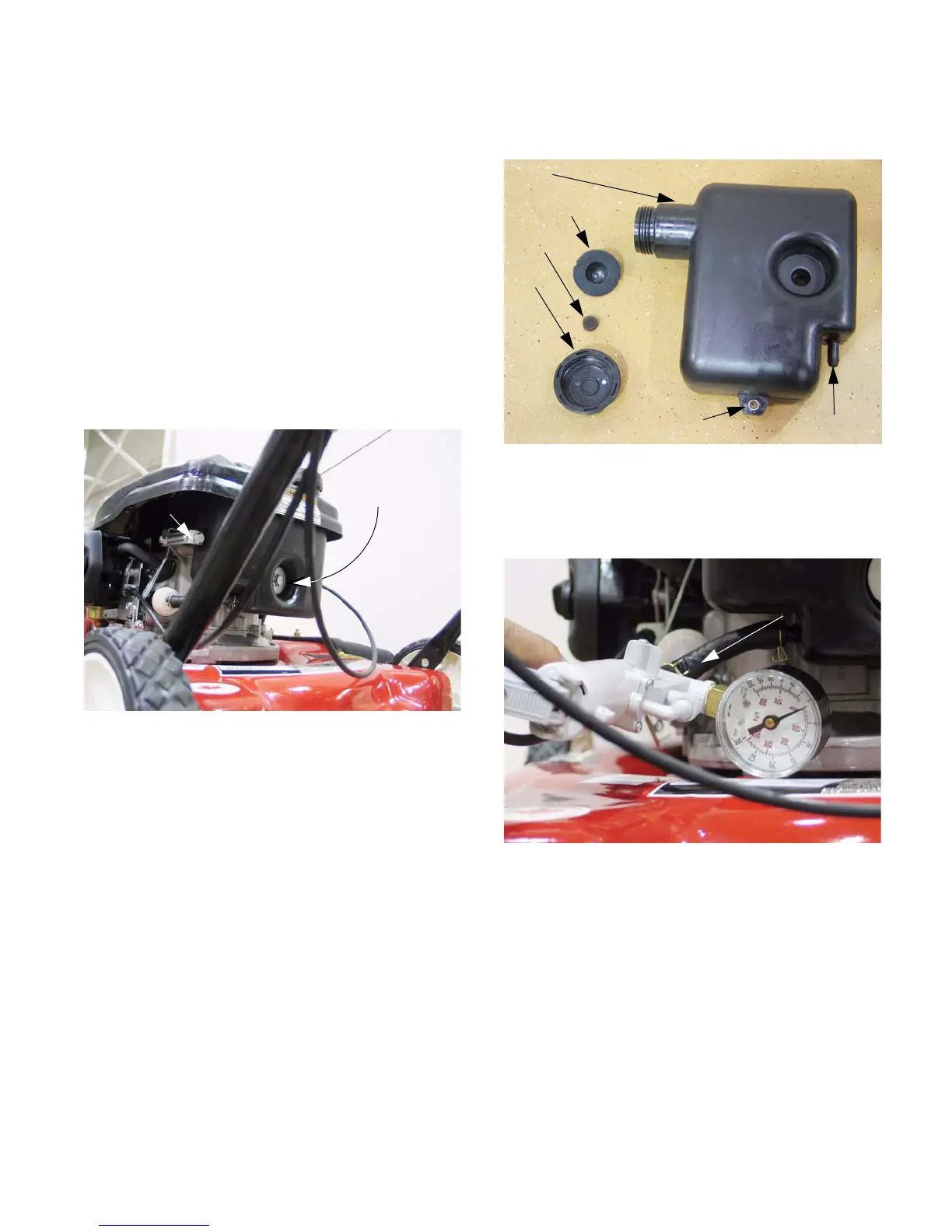

8.1. The fuel tank is secured to a bracket on the back
of the engine by a screw and fender washer,
removable with a 12mm wrench, and a second
bolt, removable with a 10mm wrench.
See Figure 8.1.
8.2. To remove the fuel tank:
• Drain the tank.
• Disconnect the fuel line from the tank.
• Remove the fuel cap.
• Unbolt, and remove the tank.
Figure 8.1
Screw and
fender washer
Screw
8.3. The tank is vented through the cap.
See Figure 8.3.
8.4. To test the cap vent, a hand-pumped vacuum /
pressure tester may be connected to the fuel
barb (after draining). See Figure 8.4.
Figure 8.3
Tank
Cap liner / gasket
Filter
Cap
Sleeve (mtg. hole) Hose bar
Figure 8.4
Hand-pump vacuum
/ pressure tester
connected to fuel line
