MTD 600 Series Shop Manual

Medium Frame 2 & 3 Stage Snow Throwers
138

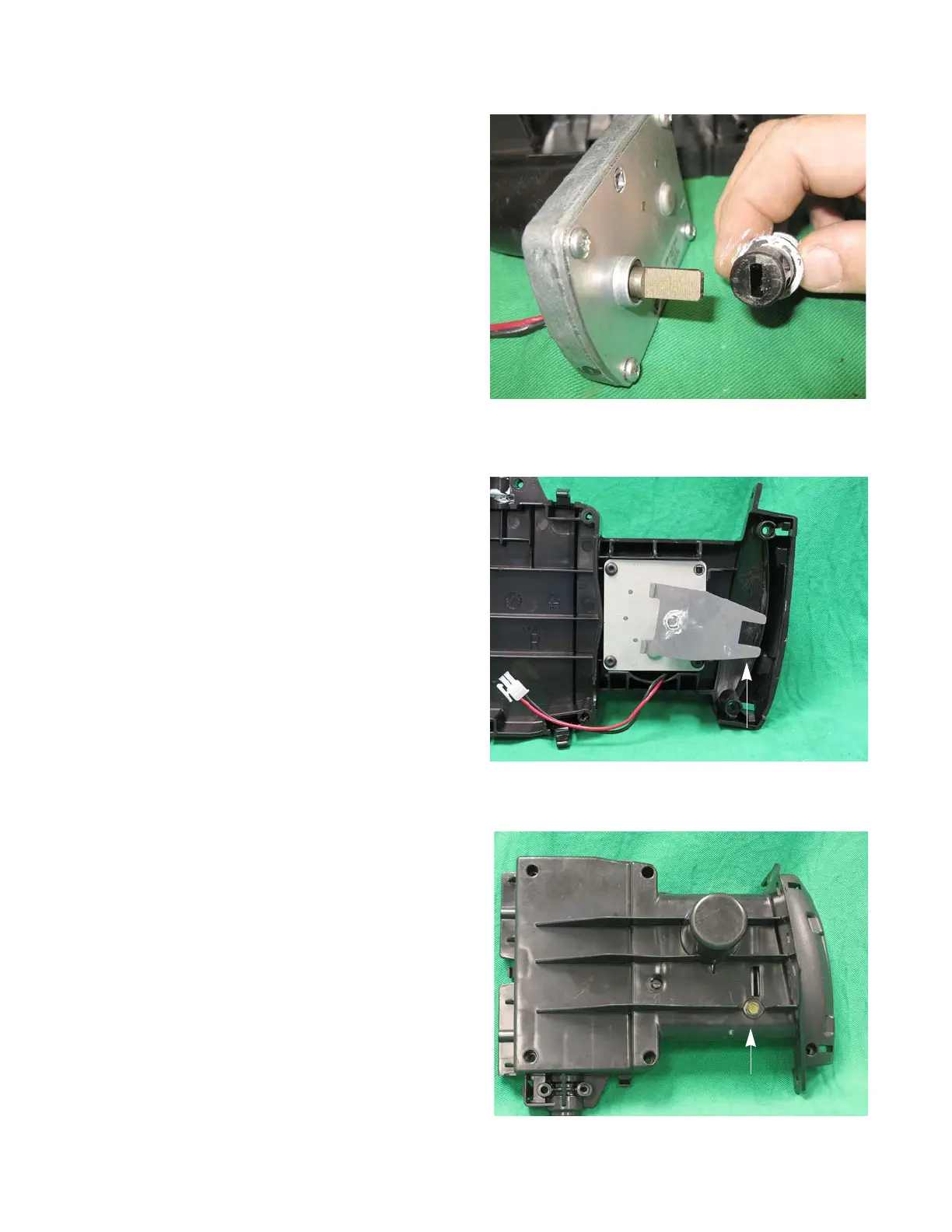

6. Slide the coupler off of the motor.
7. Remove the Chute Pitch Adapter. See Figure 11.52.
NOTE: The pitch adapter may have fallen off when
the housings where separated.
8. Turn the housing over.
9. Remove the screw, indicated by the arrow in Figure
11.53, with a 5/16” wrench.
10. Slide the motor out of the housing.
Figure 11.51
Figure 11.52
Chute Pitch Adapter
Figure 11.53
