Crankshaft, piston and connecting rod
119
6. Install the cam shaft by:
6a. Pre-lube the cam shaft with clean 10W-30
motor oil or engine assembly lube.
6b. Rotate the crank shaft until the timing mark
points to the tappets.
6c. Insert the cam shaft while aligning the timing
marks. See Figure 10.28.
7. If removed, install the governor arm by following the
steps described in Chapter 4: Fuel systems and Gov-
ernor.
8. If removed, install the oil return deflector. See Figure
10.29.
9. Place the thrust washer on the crank shaft. See
Figure 10.29.
NOTE: If the sump cover has a rubber stopper, it should
be installed so that it extends just above the seal-
ing surface.

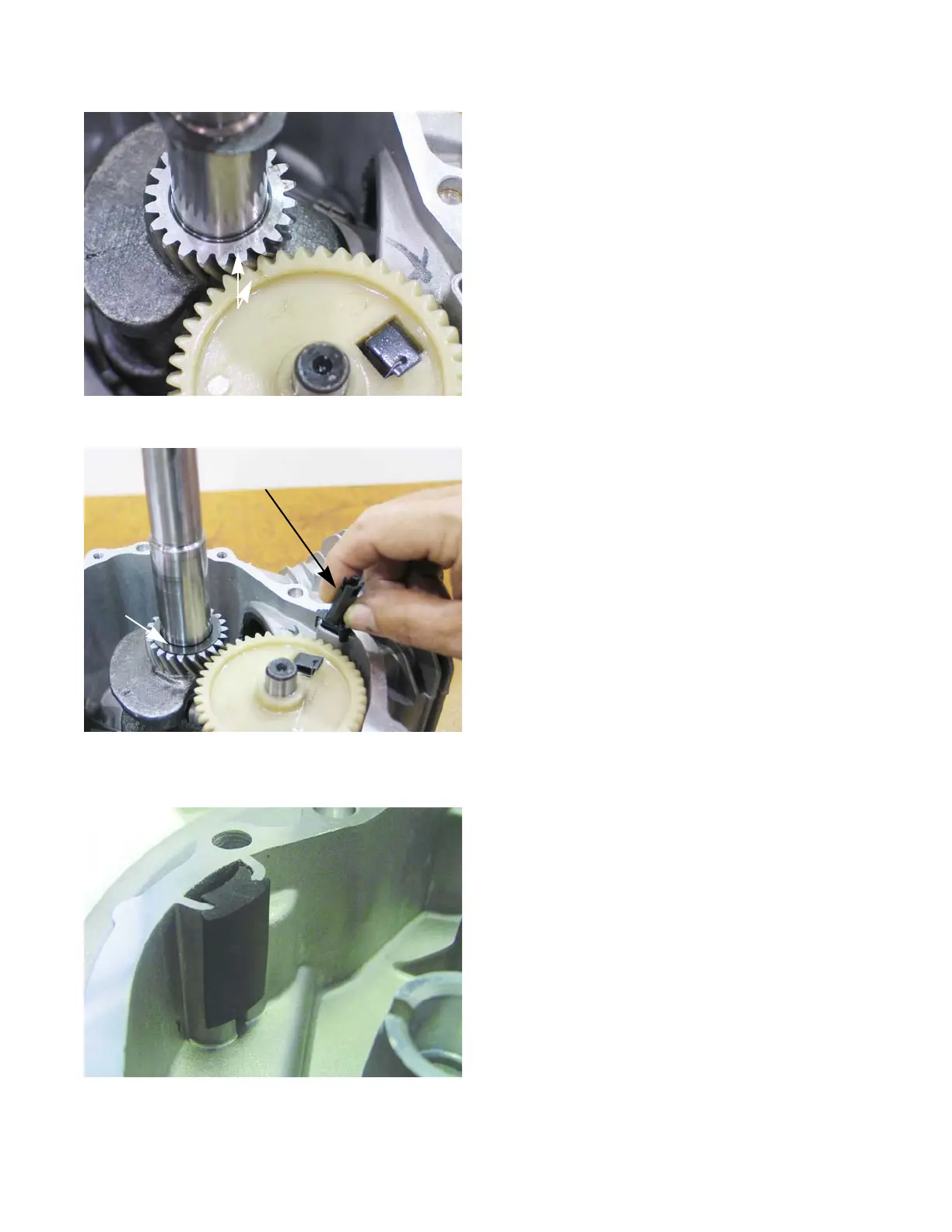

Figure 10.29
oil return deflector
Thrust
washer
