REF.

NO.

PART

NO. DESCRIPTION

1 710-0191 Screw, 3/8-24

2 710-0599 Screw, 1/4-20

3 710-0654A Screw, 3/8-16

4 710-0944 Screw, 3/8-16

5 712-0431 Flange Lock Nut, 3/8-16

6 731-04168 Debris Guard

7 736-0320 Flat Washer, 3/8 ID x 1.37 OD

8 736-0452 Bell Washer,.396 x 1.140

9 736-3052 Flat Washer,.406 x 1.00

10 736-3090 Flat Washer,.260 x.720

11 750-04142 Pulley Mount Spacer

12 756-0313 Flat Idler Pulley, 1.88 OD

13 756-1035A Idler Pulley

14 756-1150A Combination Flywheel Pulley

15 787-01072 Frame

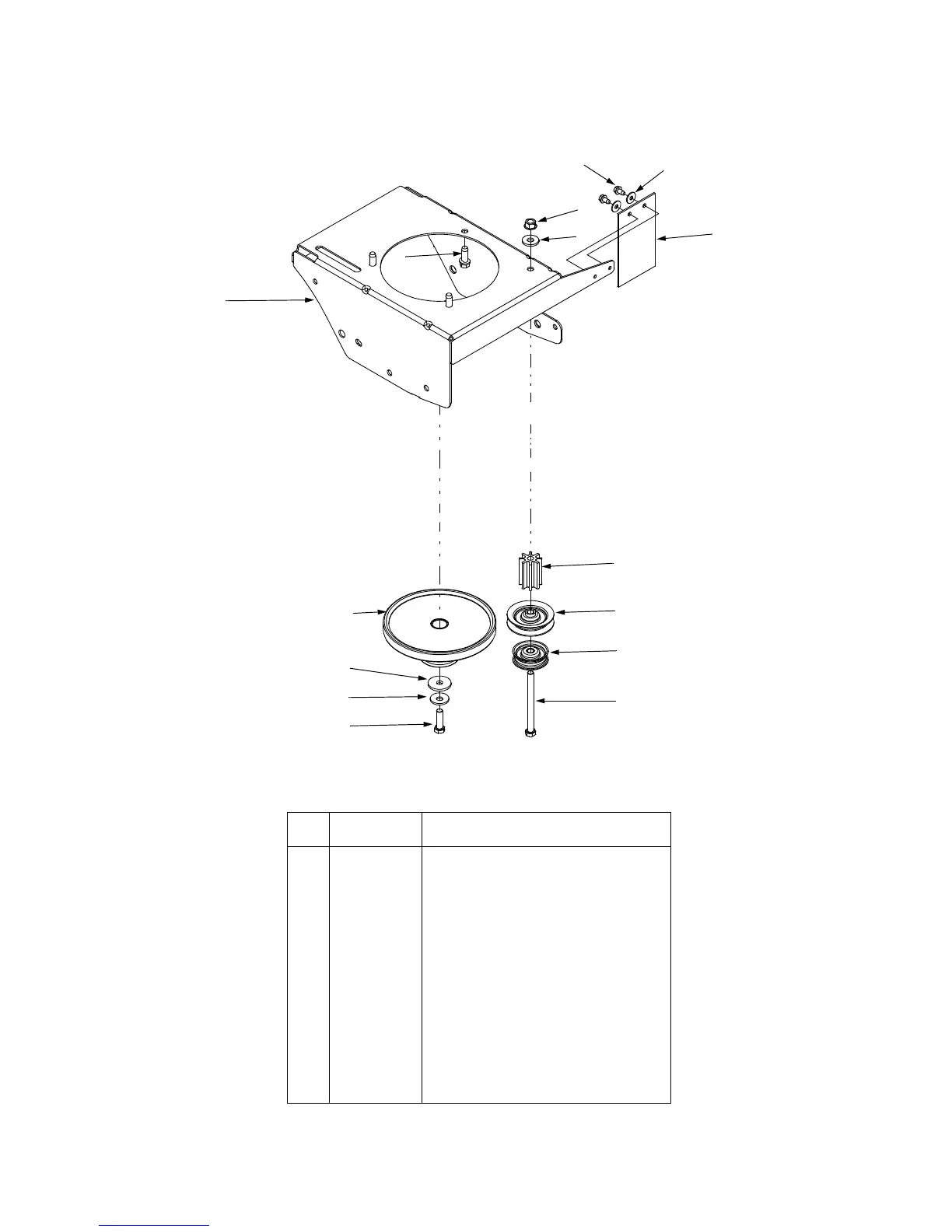

Model 520/550/551 Frame
