MTD Edger 520 User Manual

13
REF.
NO.
PART
NO. DESCRIPTION
1 710-3103 Screw, 5/16-18
2 710-0449 Screw, 5/16-18
3 710-1205 Eye Bolt
4 710-3008 Screw, 5/16-18
5 710-0606 Screw
6 712-3004A Hex Lock Nut, 5/16-18
7 720-0279 Wing Nut
8 720-0142 Grip
9 720-0241 Wing Knob
10 732-0369 Compression Spring
11 736-0451 Saddle Washer,.320 ID x.93 OD
12 746-04036 Wheel Adjustment Cable
13 746-04035 Control Cable (Briggs & Stratton)
746-04052 Control Cable (Tecumseh)
14 747-0976A Bail Handle
15 749-1225 Upper Handle
16 749-4044 Lower Handle
17 781-0741 Depth Index Bracket
18 781-0742 Depth Index Lever
19 720-0297† Foam Grip
20 712-3027 Hex Flange Nut, 1/4-20
REF.
NO.
PART
NO. DESCRIPTION

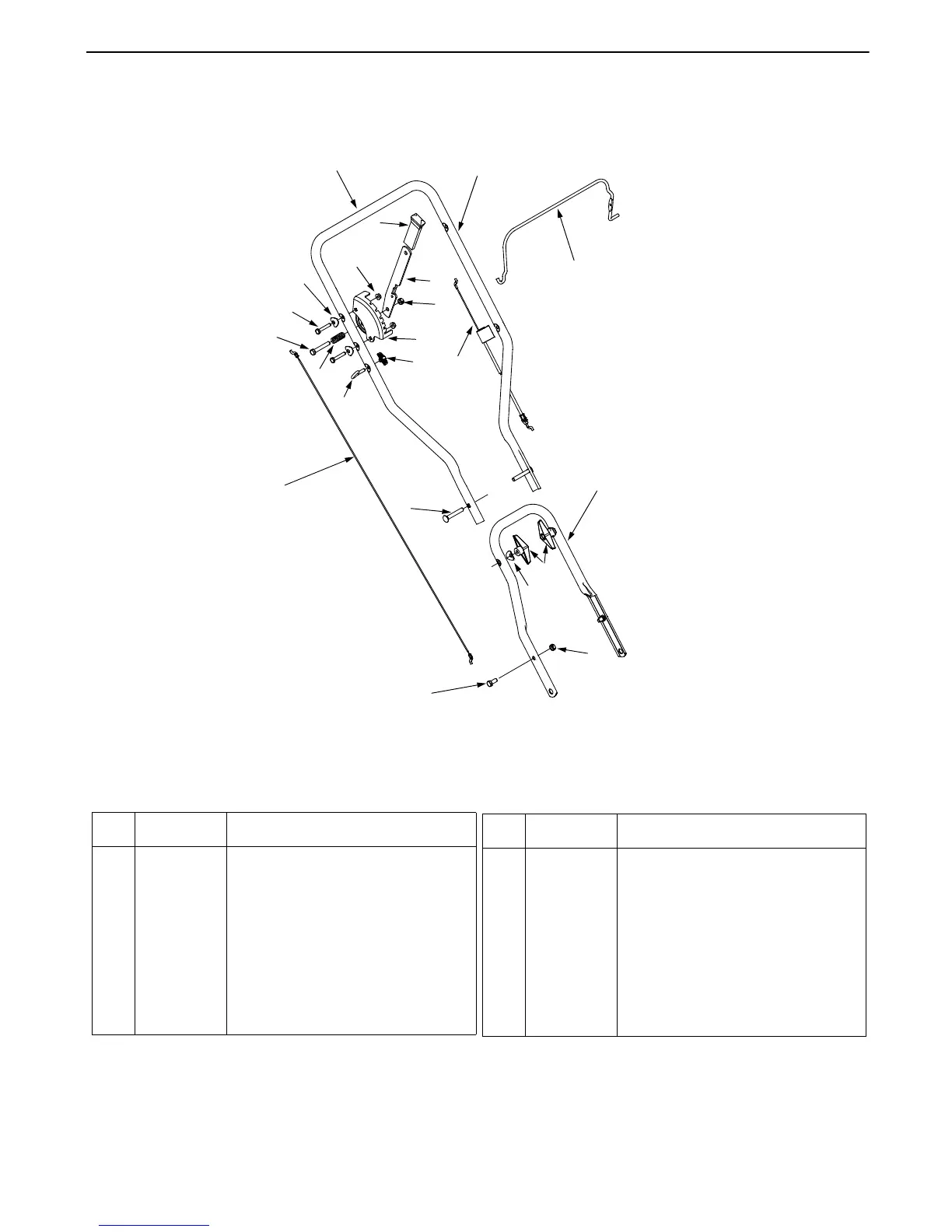

SECTION 9: PARTS LIST FOR MODEL 520/550/551 HANDLE
14
15
19†
8
20
18
6
17
12
13
7
3
10
1
5
11
2
16
11
9
6
4
†If so equipped
