MTD Edger 520 User Manual

18

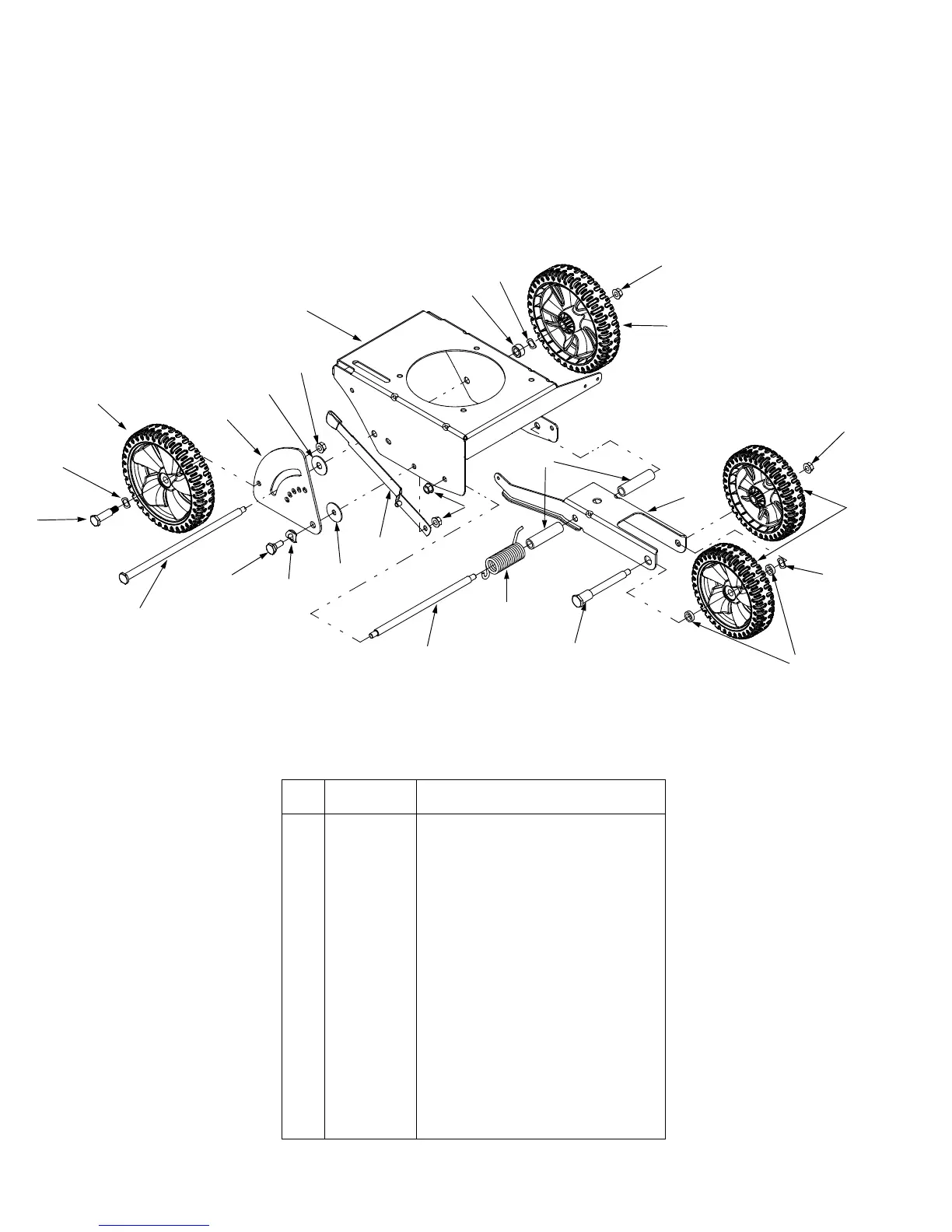

Model 550 And 551 Wheel Assembly
REF.
NO.
PART
NO. DESCRIPTION
1 687-02022 Curb Height Adjustment Lever
2 712-0431 Flange Lock Nut, 3/8-16
3 732-04045 Torsion Spring
4 734-1987 Wheel 8x1.8
5 734-1988 Wheel 7x1.8
6 736-0182 Spring Washer,.500 x 1.00
7 736-0208 Flat Washer,.51 ID x 1.5 OD
8 736-0232 Wave Washer,.531 ID x.781 OD
9 736-0234 Washer,.385 x 1.5
10 738-0213 Shoulder Screw,.498 x 1.445
11 738-0380 Shoulder Screw,.50 x.27
12 738-04036 Shoulder Screw,.50 x 4.62
13 738-04037 Shoulder Screw,.50 x 9.36, 3/8-16
14 738-04041 Shoulder Screw,.50 x 11.61
15 750-04129 Spacer,.525 x.775
16 750-04165 Spacer,.525 x.775
17 750-0664 Spacer,.505 ID x.88 OD
18 781-0100 Curb Height Adjuster Plate
19 787-01074 Wheel Bracket
10
8
4
14
11
6
9
18
7
2
2
1
13
3
12
16
5
8
2
19
15
4
2
8
17
(Frame shown for reference only)
