T65 Series Vertical Shaft Engines
34
2j. Lift the Autochoke Air Vane off of the its pivot.
2k. Unhook the choke rod from the carburetor.
See Figure 3.8.
2l. If the engine is not equipped with an auto-
choke, remove the carburetor gasket.
2m. Slide the carburetor off of the mounting studs.
See Figure 3.9.
2n. Rotate the throttle arm until it meets the idle
speed screw, then pivot the carburetor slightly
to disengage the 90 degree bend at the end of
the governor rod. See Figure 3.10.
2o. Unhook the stabilizer spring that takes-up the
play between the governor arm, the governor
rod, and the throttle arm on the carburetor.

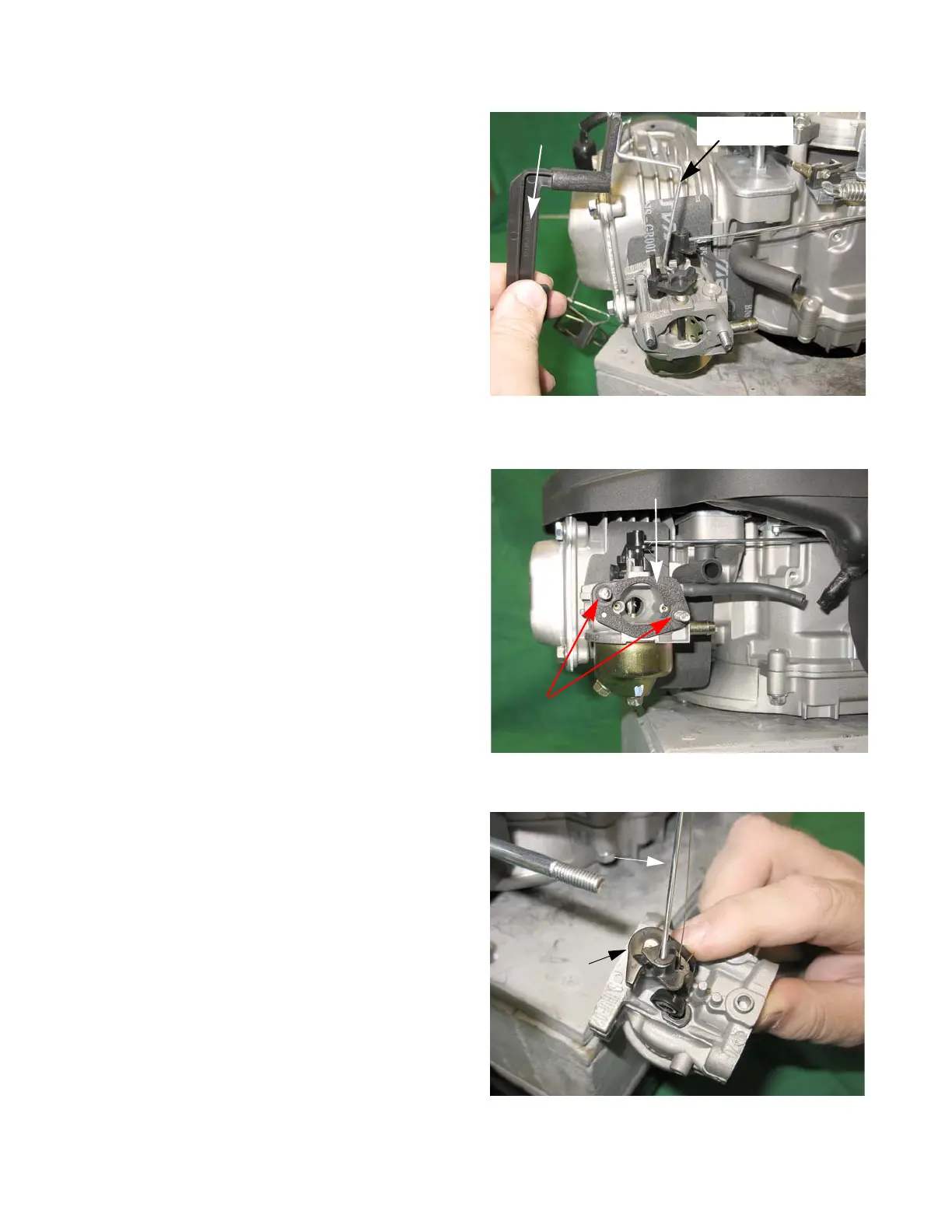

Figure 3.8
Air vane
Choke rod
Figure 3.9
Mounting studs
Carburetor gasket
Figure 3.10
Throttle arm
Governor rod
