T65 Series Vertical Shaft Engines
86
NOTE: The thrust washer should be removed when
the sump is removed.
11. Remove the camshaft. See Figure 10.2.
NOTE: Align the timing marks to allow easier
removal of the cam shaft and to help protect
the compression relief from damage.
12. Remove the valve tappets. See Figure 10.3.
13. If it is not already done, place alignment marks the
connecting rod cap and the connecting rod so that
they can be reassembled in the proper orientation.
See Figure 10.4.
14. Remove the connecting rod cap using a 7 mm
wrench.

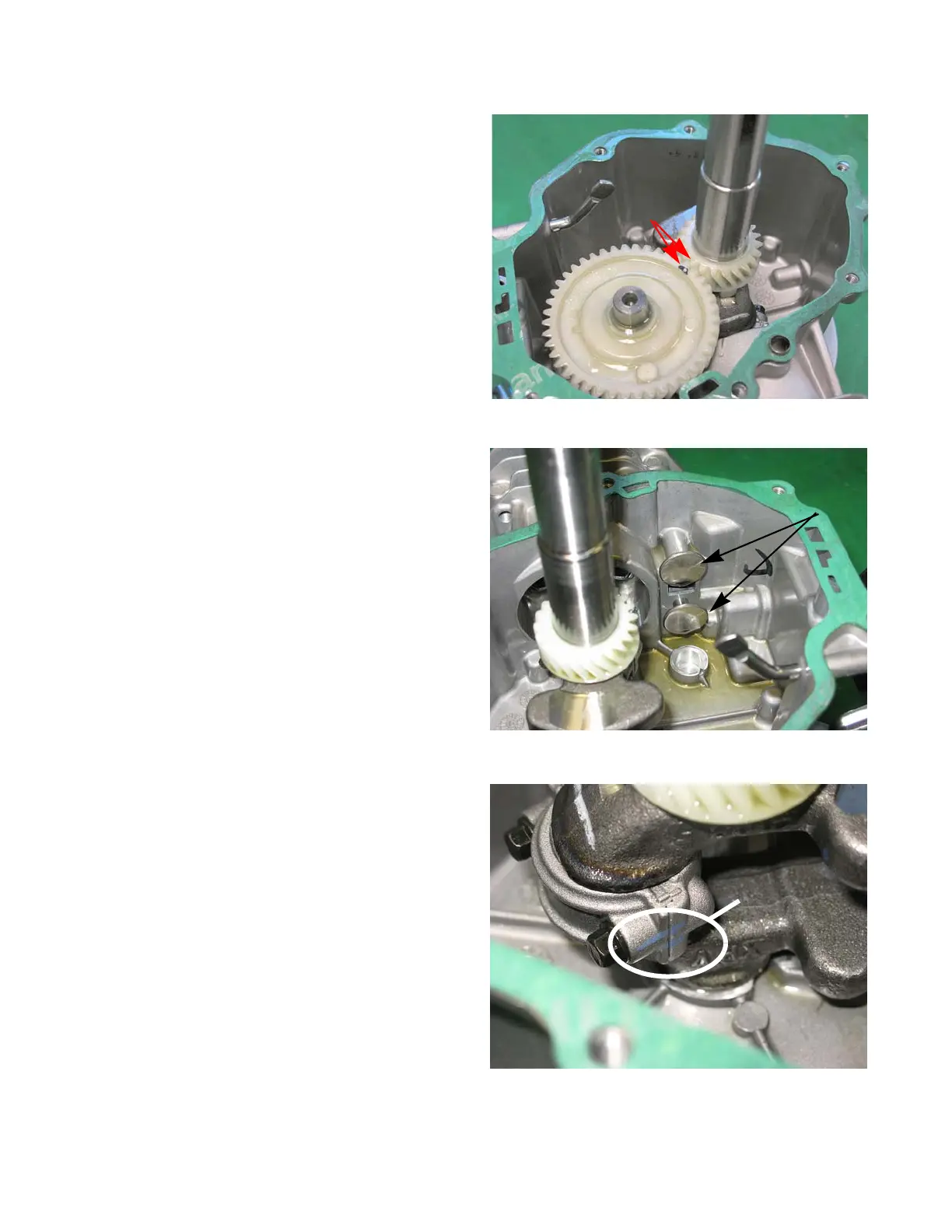

Cam shaft
Compression
relief
Figure 10.2
Timing marks
Figure 10.4
Alignment marks
