Crankshaft, piston and connecting rod
87

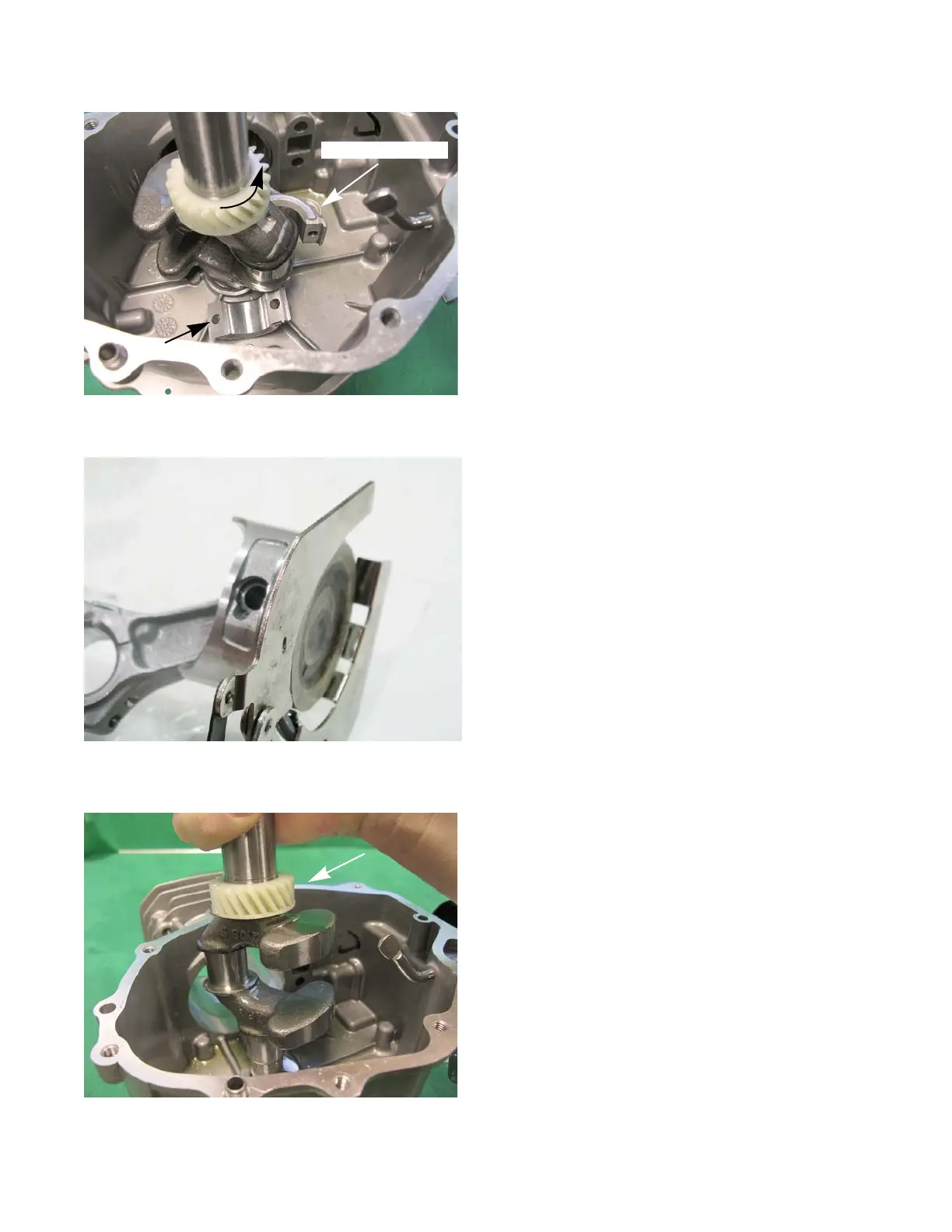

NOTE: Rotating the crankshaft after the connecting rod
bolts are removed will help to separate the con-
necting rod from the cap. See Figure 10.5.
15. Push the piston out of the cylinder.
16. Remove the piston rings from the piston using a pair
of piston ring pliers. See Figure 10.6.
17. Remove the crankshaft. See Figure 10.7.
Figure 10.5
Cap
Connecting rod
Figure 10.7
Lift up on
crankshaft
