Service
7
15
Augers
The augers are secured to the spiral shaft with four shear pins and
cotter pins. If you hit a foreign object or ice jam, the snow thrower
is designed so that the pins may shear. Refer to Fig. 5-1.
If the augers do not turn, check if the pins have sheared. Replace,
if needed, with proper shear pins. Refer to Parts List for correct
part number.
CAUTION: NEVER replace the auger shear pins with
standard pins or fasteners. Any damage to the auger
gearbox or other components, as a result of doing
so, will NOT be covered by your snow thrower’s
warranty.
Replacing Belts
Allow the engine to run until it is out of fuel. Do not 1.
attempt to pour fuel from the engine
Remove the key to prevent accidental starting.2.
Remove the self-tapping screw shown in Fig. 7-1, and press 3.
the plastic tabs to release the belt cover. Pull the belt cover
up and out from around the engine and chute assembly.
Set it aside and save.
Auger Belt
Tip the snow thrower up and forward so that it rests on 1.
the auger housing. Remove the belt keeper (Refer to Fig.
7-3). Return the snow thrower to its upright position to
complete the following steps.
Slip the front auger belt off of the engine pulley, pushing it 2.
forward and rolling in off of the pulley. See Fig. 7-2.
Squeeze the auger control handle to release the auger 3.
brake, which is the tab that holds the belt onto the auger
pulley. Remove the belt.
Replace with new belt and reassemble the belt cover on 4.
the snow thrower.
Check the adjustment of the auger control, refer to 5.
“Assembly and Set Up” section of this manual.

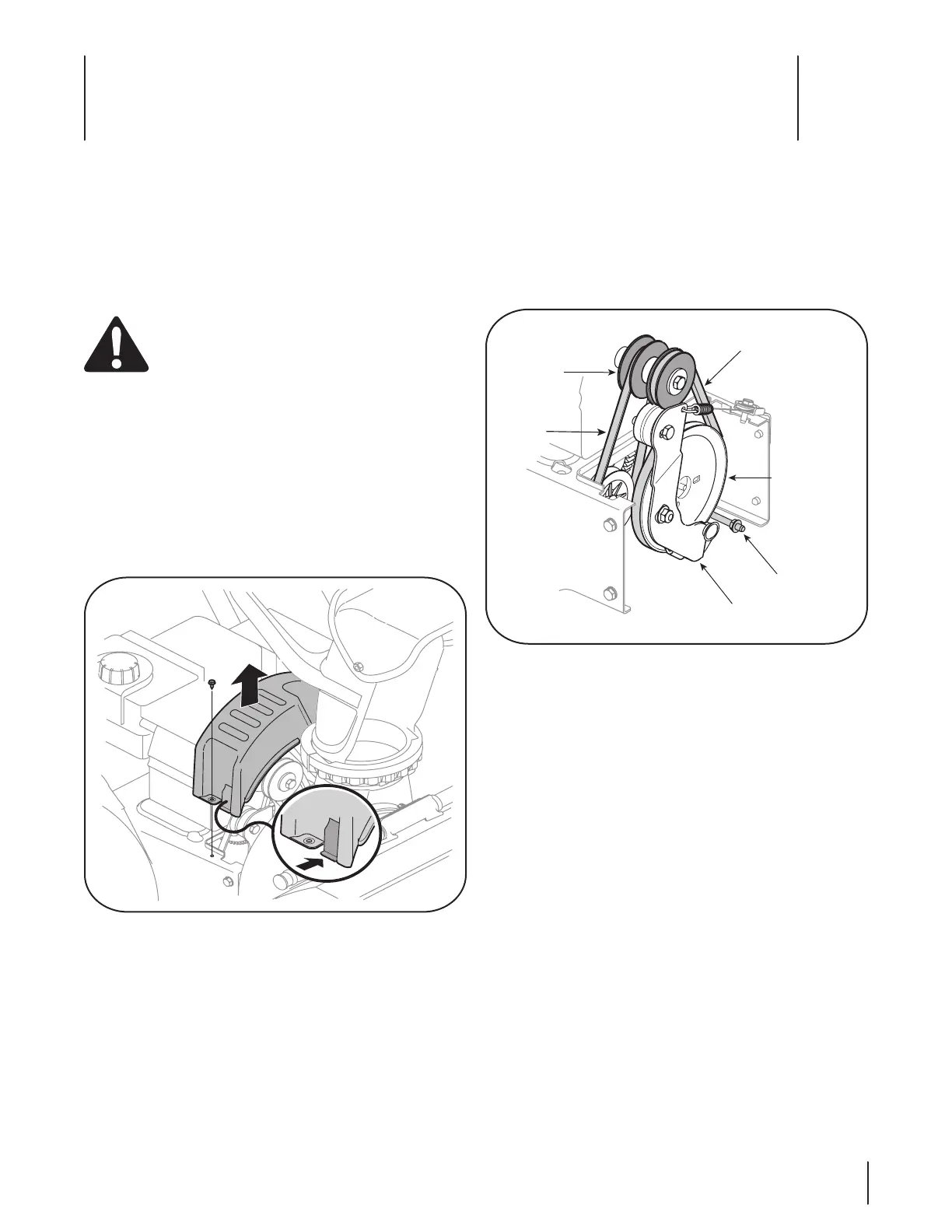

Figure 7-1
Figure 7-2
Auger Belt
Belt Keeper
Idler Bracket
Drive
Belt
Engine
Pulley
Auger
Pulley
