MTE Matrix E-Series - Typical Harmonic Spectrum; Matrix E-Series % Load Vs Power Factor; Figure 3-1: Typical Harmonic Spectrum with and Without Matrix E-SERIES; Figure 3-2: Power Factor

Matrix
®
E-Series Technical Reference Manual 380V – 480V
Form: MAE-TRM-E September 2020 REV. 001 8
Typical Harmonic Spectrum

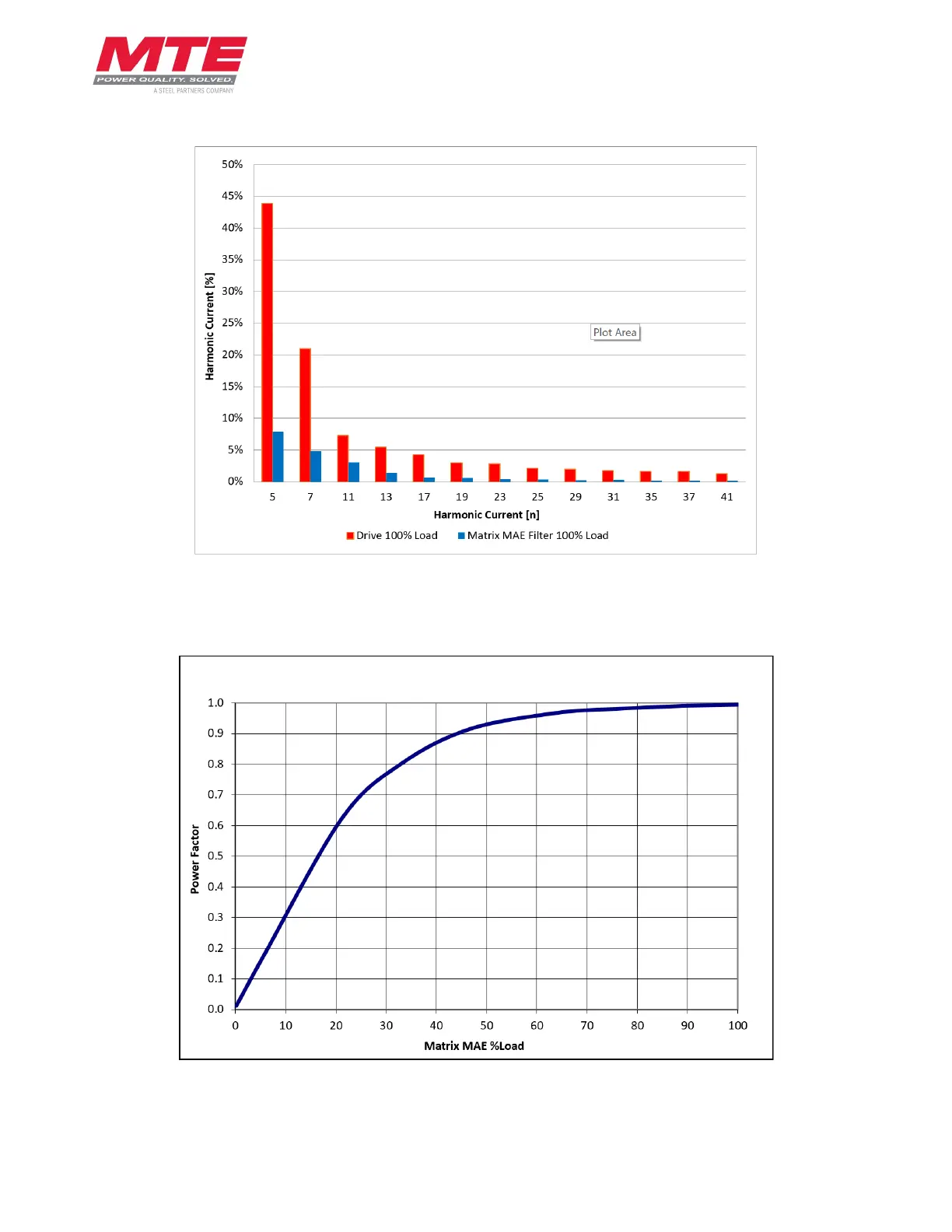

Figure 3-1: Typical Harmonic Spectrum with and without Matrix E-SERIES
Matrix E-Series % Load vs Power Factor
Figure 3-2: Power Factor
