Matrix
®
E-Series Technical Reference Manual 380V – 480V
9 Form: MAE-TRM-E September 2020 REV. 001

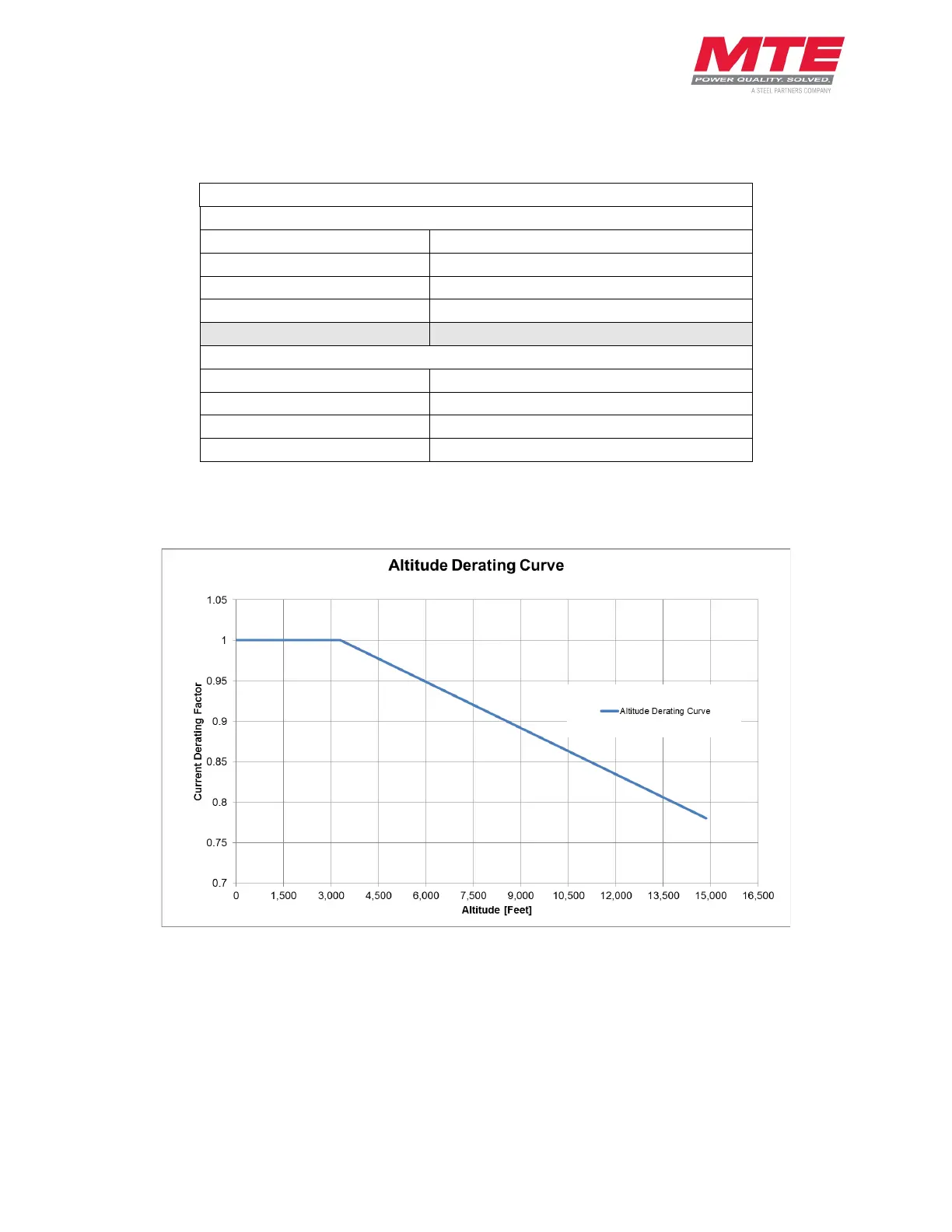

Typical Performance with Unbalanced Line Voltage
Table 3-4: Typical Performance with Unbalanced Line Voltage
All Components at Nominal Values and Worse Case Service Conditions
100% Load
Nominal THID
11.39%
1% Unbalance
11.45%
2% Unbalance
11.50%
3% Unbalance
11.66%
30% Load
Nominal THID
17.83%
1% Unbalance
17.88%
2% Unbalance
17.92%
3% Unbalance
17.94%
Altitude Derating
Figure 3-3: Altitude Derating Curve
