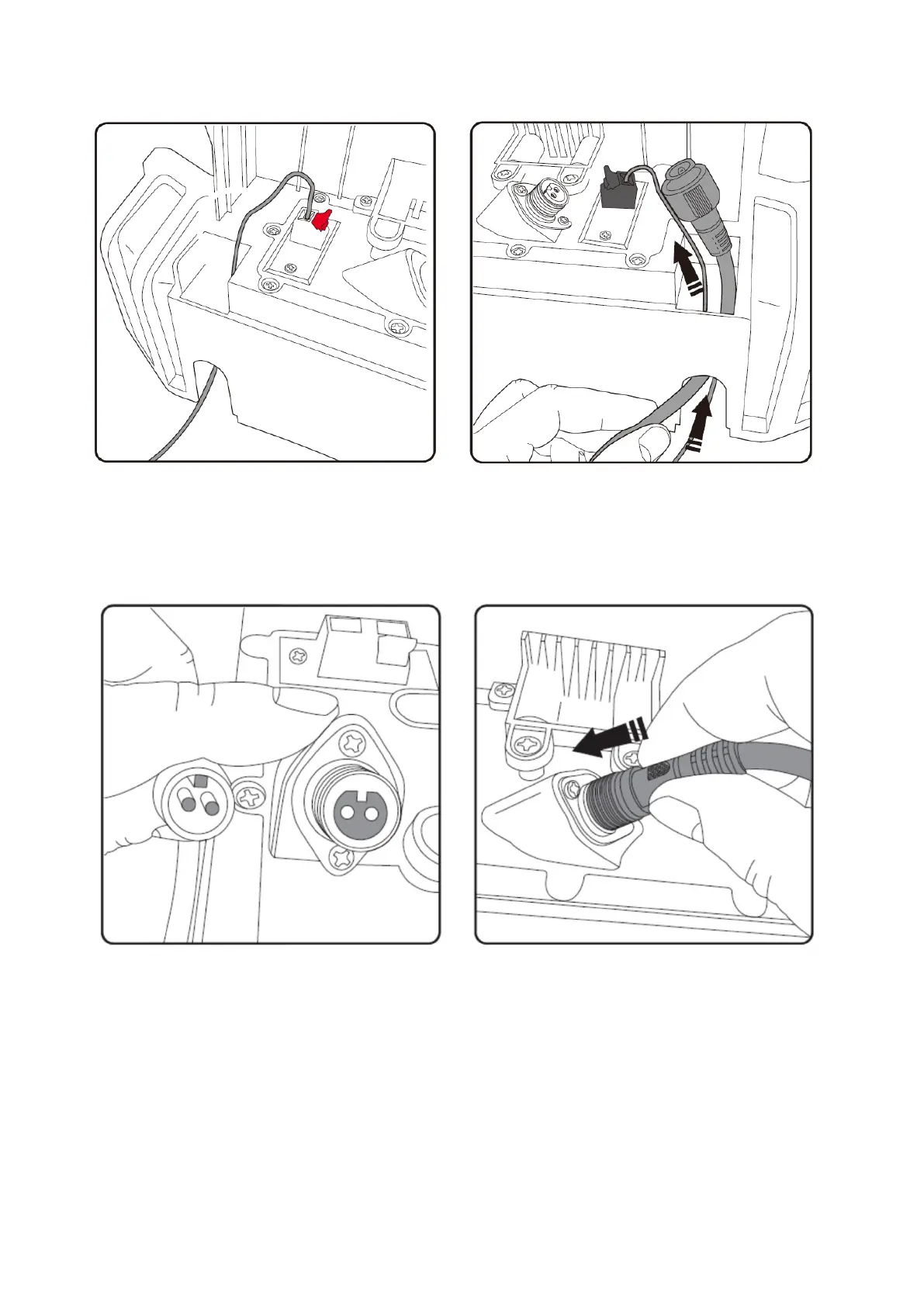

When you have completed your boundary wire it
must return to the charging station and be fed up
through the unit and plugs in at the black terminal.
Feed the power lead up through the other side of
the base station.
Pay attention to the cable fittings as there is a
keyway orientation detail to ensure correct
connection.
Push the power cable into place.
