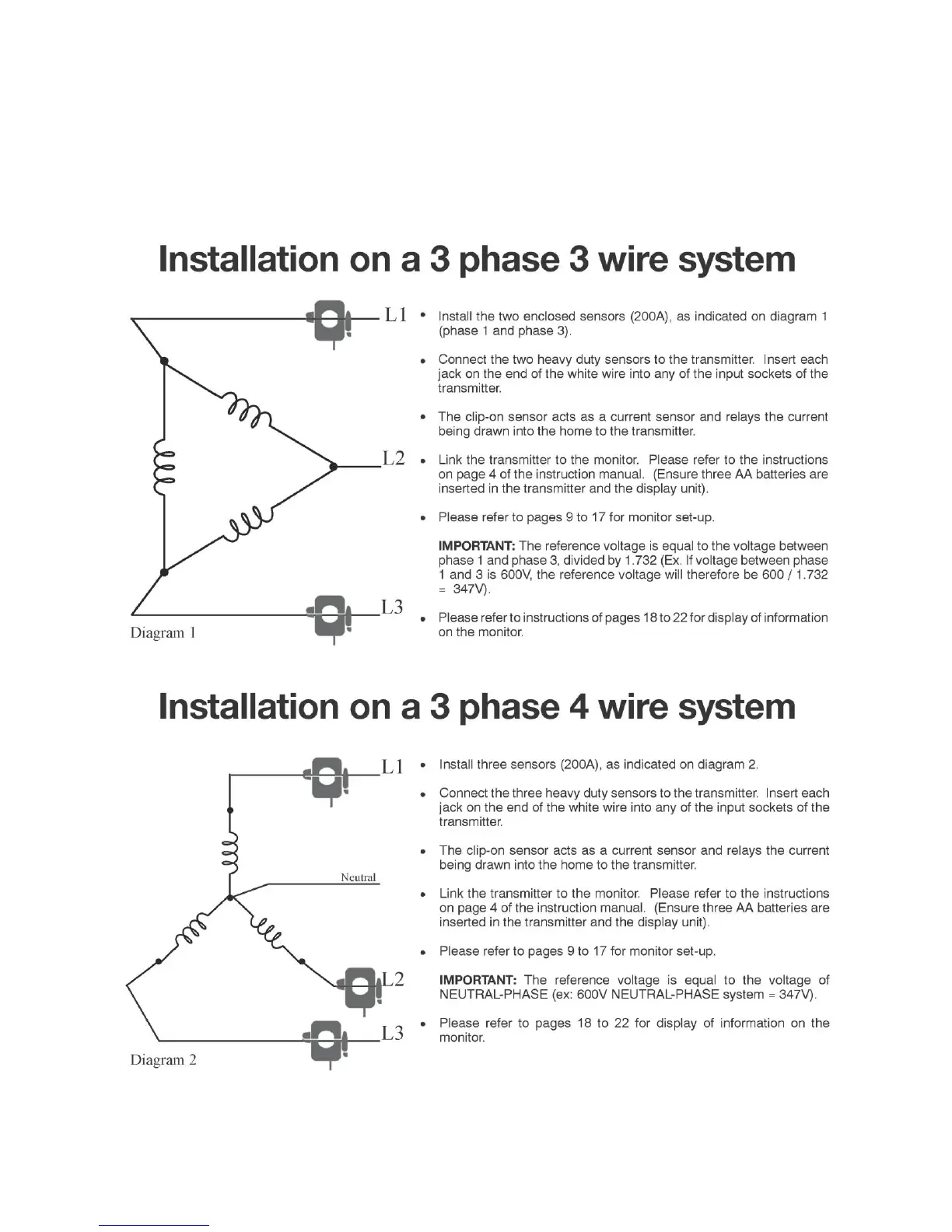

12. Installation (3 Phase System)
IMPORTANT NOTICE: Please contact a qualified electrician to carry out the installation. We will not be held
responsible for damage as a result of a wrong connection which may cause injury or death. Please note that
monitor displays the Apparent Power (VA) and not the Active Power (watts).
* Regarding 3 phase 4 wire supply (Diagram 2), a third sensor clamp is needed (sold separately).
