Installing Cables
MTS Exceed™ Series 40 Product Manual Installation
53
Crosshead load cell
connector

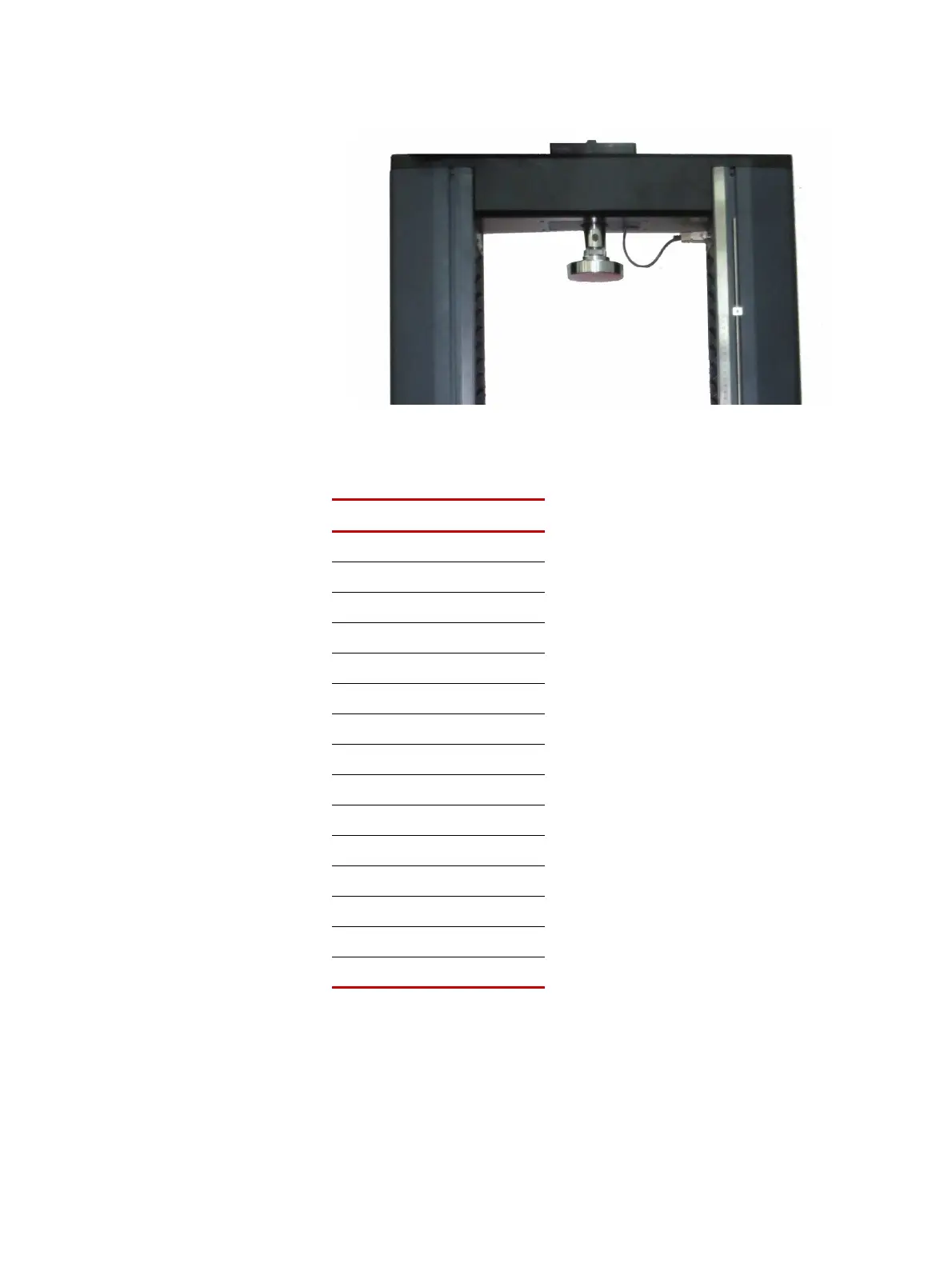

The picture above shows the load cell connection on upper test space for E44
frame. The load cell cable connects to the D-15 connector on the bellows support
of column cover.
P
IN
S
IGNAL
1 EX+
2 EX-
3 No Contact
4 FB+
5 FB-
6 No Contact
7 SHIELD
8 TEDS+
9 No Contact
10 EXS+
11 No Contact
12 RCAL1 (FBR+)
13 RCAL2 (FBR-)
14 TEDS-
15 EXS-
