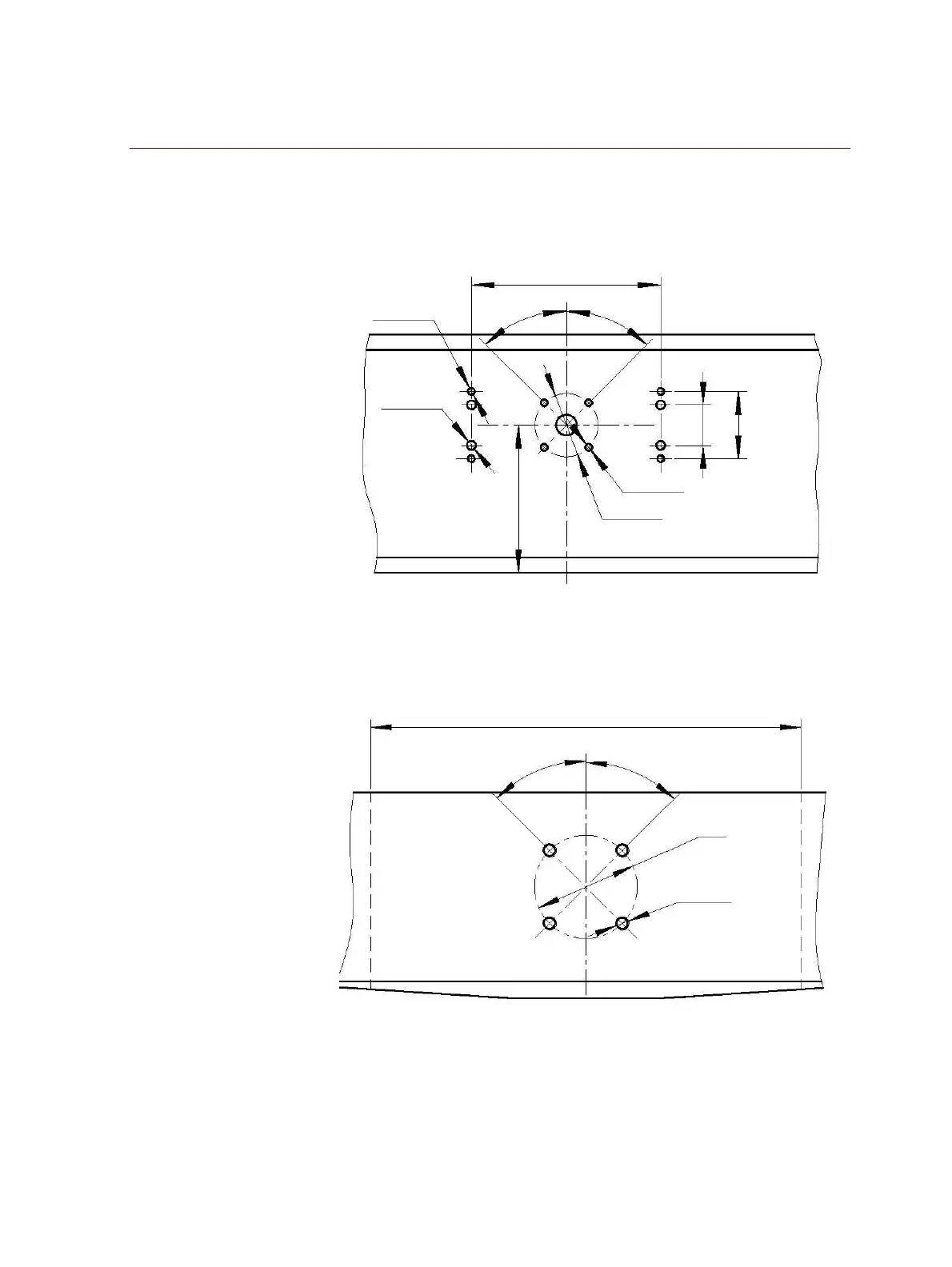

Model E44 Accessory Mounting Dimensions
MTS Exceed™ Series 40 Product Manual Installation
57
Model E44 Accessory Mounting Dimensions
Base beam
Crosshead
Model E44.104/E44.304 Base Beam Mounting Dimensions
180
4
5
°
4
5
°
64
4-M8x25
Φ60±0.1
4-M8x25
140
38
4-M10x30
400
Horizontal Clearance
4
5
°
4
5
°
Φ60
4-M8x25
Model E44.104/E44.304 Topside of Crosshead Mounting Dimensions
