MTS Exceed™ Series 40 Product Manual
72
Fixture Mounting
Operation
Fixture Mounting
MTS offers a wide variety of fixtures. Mounting these fixtures typically involves
installing the fixture or load cell onto a mounting (clevis pin) adapter and
securing it with a mounting dowel (pin). To further secure a fixture, some

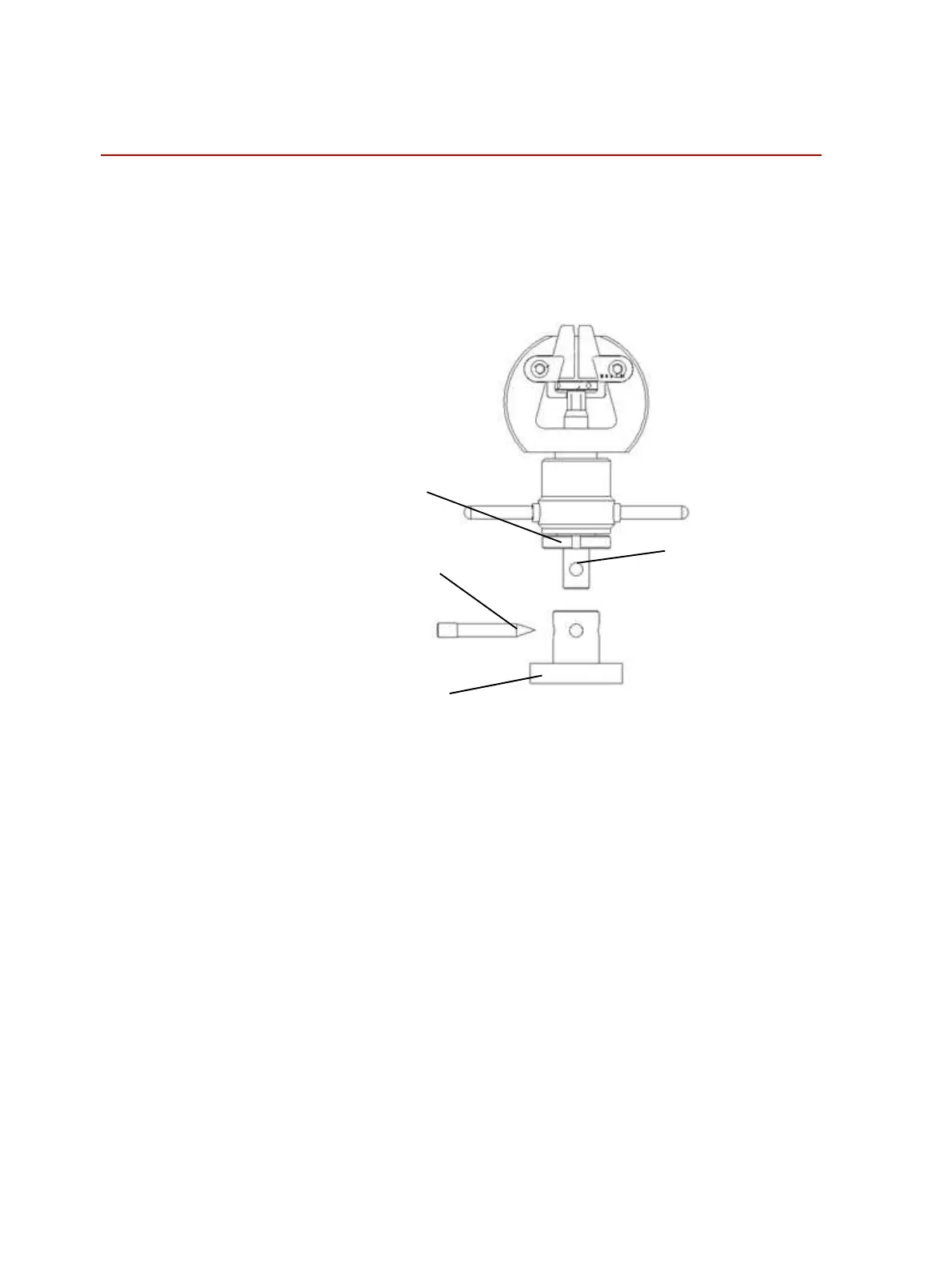

configurations also include locking collars. A typical mounting configuration is
shown in the following figure.
Locking
Collar
Mounting Pin
(Clevis Pin
Load Frame-
Adapter
Mounting Dowel
(Pin)
0Exceed product manual.book Page 72 Wednesday, August 27, 2014 2:55 PM
