MTS 793 Controller Hardware FlexTest GT Controller Connections
101
Multiple Universal Driver Connections
For special applications, the Model 493.79 Multiple Universal Driver
(MUD) board provides up to six drivers that can be used to drive
standard 252 servovalves. Inputs to this board originate from a Model
493.46 D/A board on a Model 493.40 I/O Carrier Module.

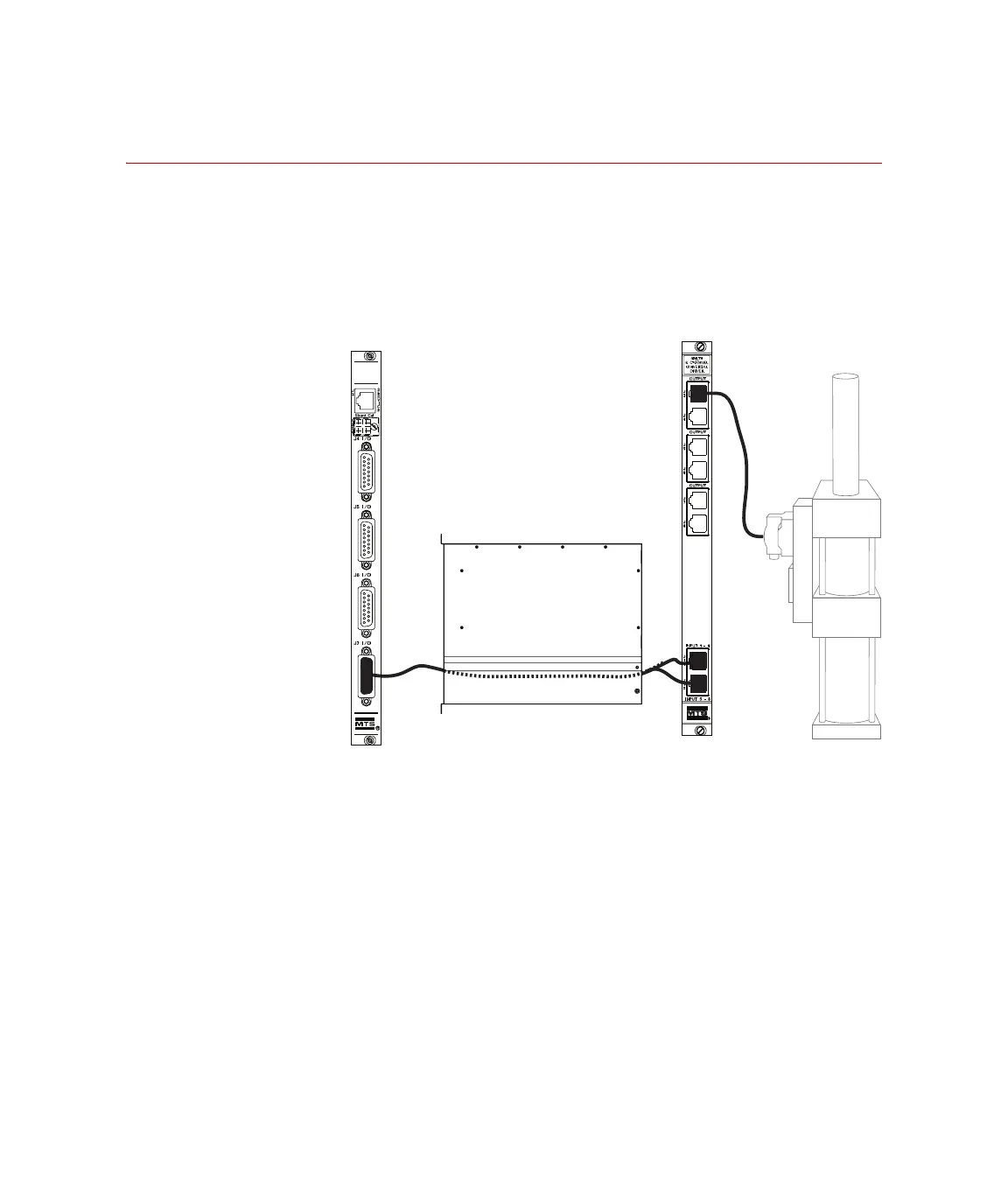

A Y-cable (PN 100-006-173) connects the I/O Carrier module (15 pin,
D-Type) to J9/J10 on a MUD board (RJ45).
Front Rear
493.10 Chassis
Front/Rear Cable Conduit
493.40
I/O Carrier
