MTS Systems FlexTest SE User Manual

MTS 793 Controller Hardware
FlexTest GT Controller Connections
126
Cable specification • 9-contact type D male EMI connector
• Backshell–EMI metallized plastic
• Cable–shielded twisted pairs (22 AWG minimum) with drain
wire(s) connected to the metallized backshell at the chassis.
Digital I/O Connections
The Model 493.72 Digital I/O transition module has two connectors;
one provides connections for sixteen digital inputs and the other
provides connections for sixteen digital outputs.
F4
F9
F7
F7
1
6
2
7
3
9
8
5
4

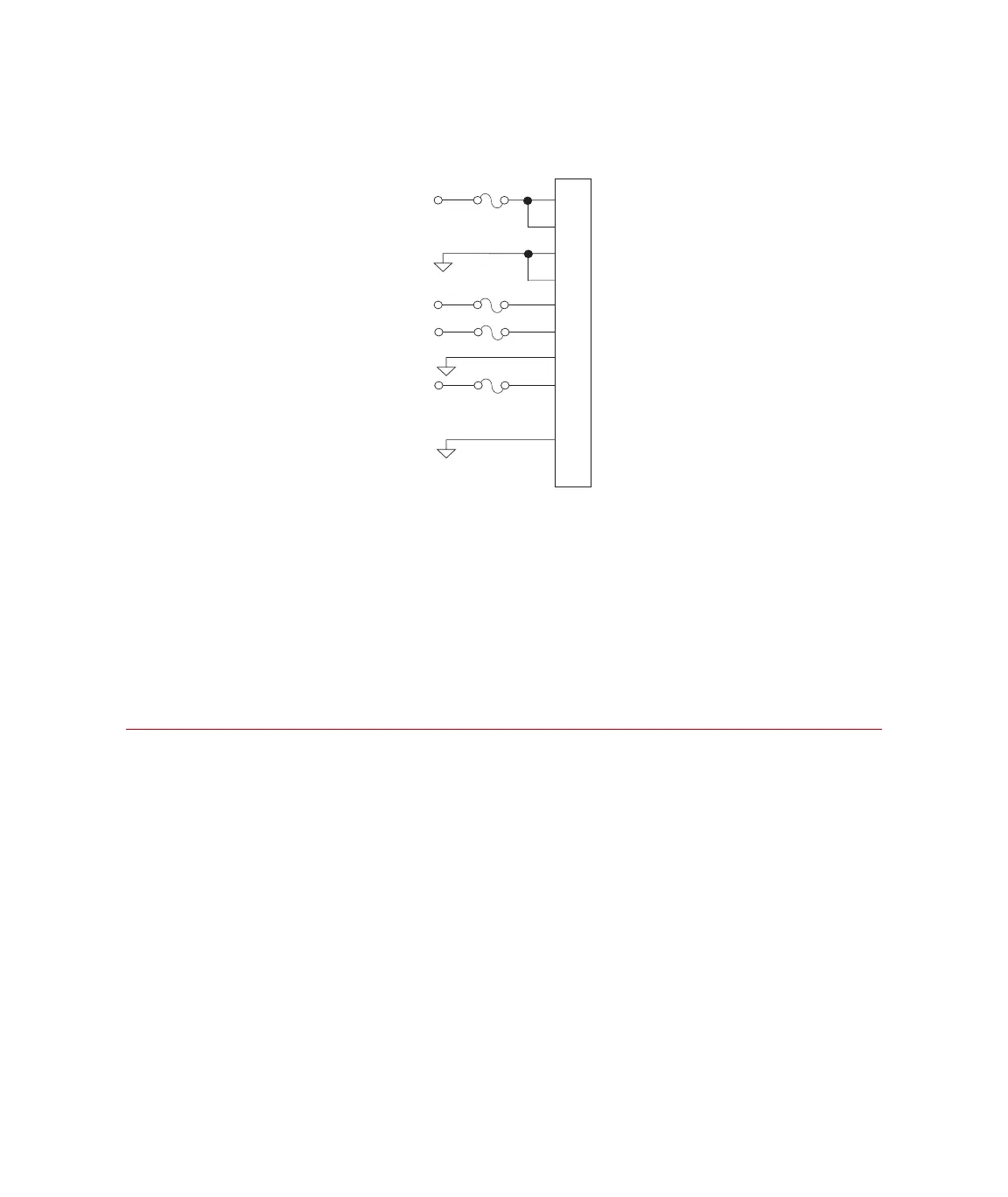

J49 To
External Devices
From
Chassis
-15 V DC
+24 V DC
24V
Common
+5 V DC
5V
Ground
+15 Vdc
Analog
Ground
