MTS 793 Controller Hardware
FlexTest GT Controller Connections
148

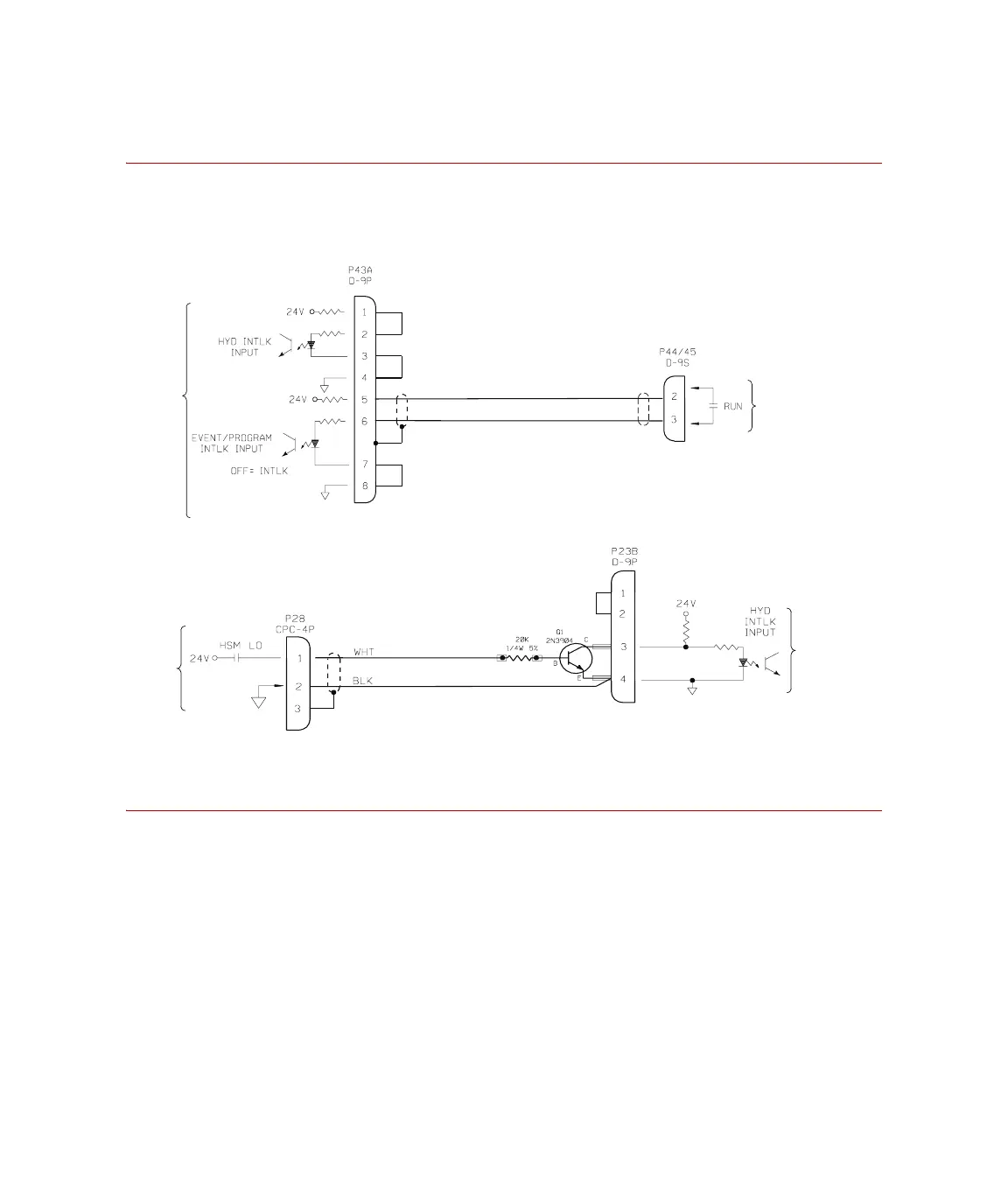

Connecting Interlock Signals to 458 Controllers
FlexTest GT Controllers monitor digital I/O interlock signals through
the Model 493.74 HSM transition module.
Eurotherm Temperature Controller Connection
When equipped with a Model 498.71B GRES III plug-in module, your
controller can program and control one or more Series 2200/2400
Eurotherm Temperature Controllers via the J50 serial connectors on a
Model 493.71 Serial Interface transition module.
In order to use this configuration, a special temperature controller
resource must be added to your hwi file.
J50 connectors The temperature controller can be connected to any of the four J50
connectors on the serial interface.
To
458.XX
Controller
Jumper
Jumper
Jumper
To
493.74
HSM
Transition
Run/Stop Program Interlock Cable
(PN 056-455-2xx)
To
493.74
HSM
T
ransition
Hydraulic Enable Interlock
Cable (PN 056-455-1XX)
To
458.XX
Controller
Jumper
