MTS Systems FlexTest SE User Manual

MTS 793 Controller Hardware FlexTest GT Controller Connections
149
Temperature
controller hardware
resource
For more information on adding the Eurotherm hwi file resource, see
the MTS 793 Utility Software manual.
Program the
temperature
controller
Use Station Builder to configure a Eurotherm temperature controller.
.

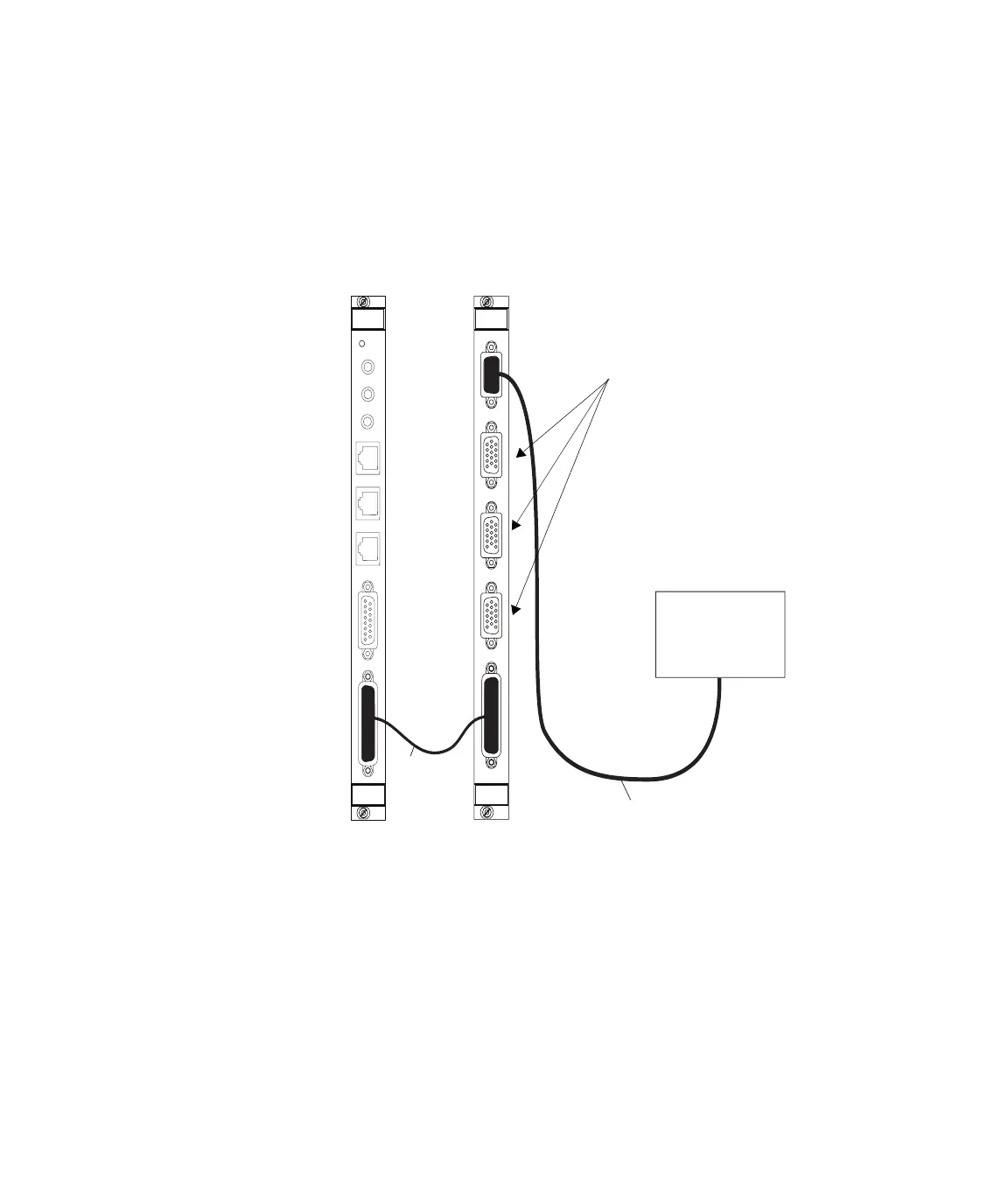

J50D
J7 SERIAL
J50C
J50B
J50A
m
493.71
Serial
Interface
CLOCK OUT
EVENT OUT
J3 IN
J6 STATION
J7 SERIAL
EVENT IN
J4 OUT
J5 DEBUG
+12V
m
498.71B
GRES III
056-172-0xx (for Model 652/653 Temperature Chambers)
056-128-0xx (for Model 651 Temperature Chambers)
049-876-501
Eurotherm
Temperature
Controller
Use Jumper Plug 055-634-101
in these connectors.
