MTS 793 Controller Hardware FlexTest GT Controller Connections
113
ADDA II Module I/O
Connections

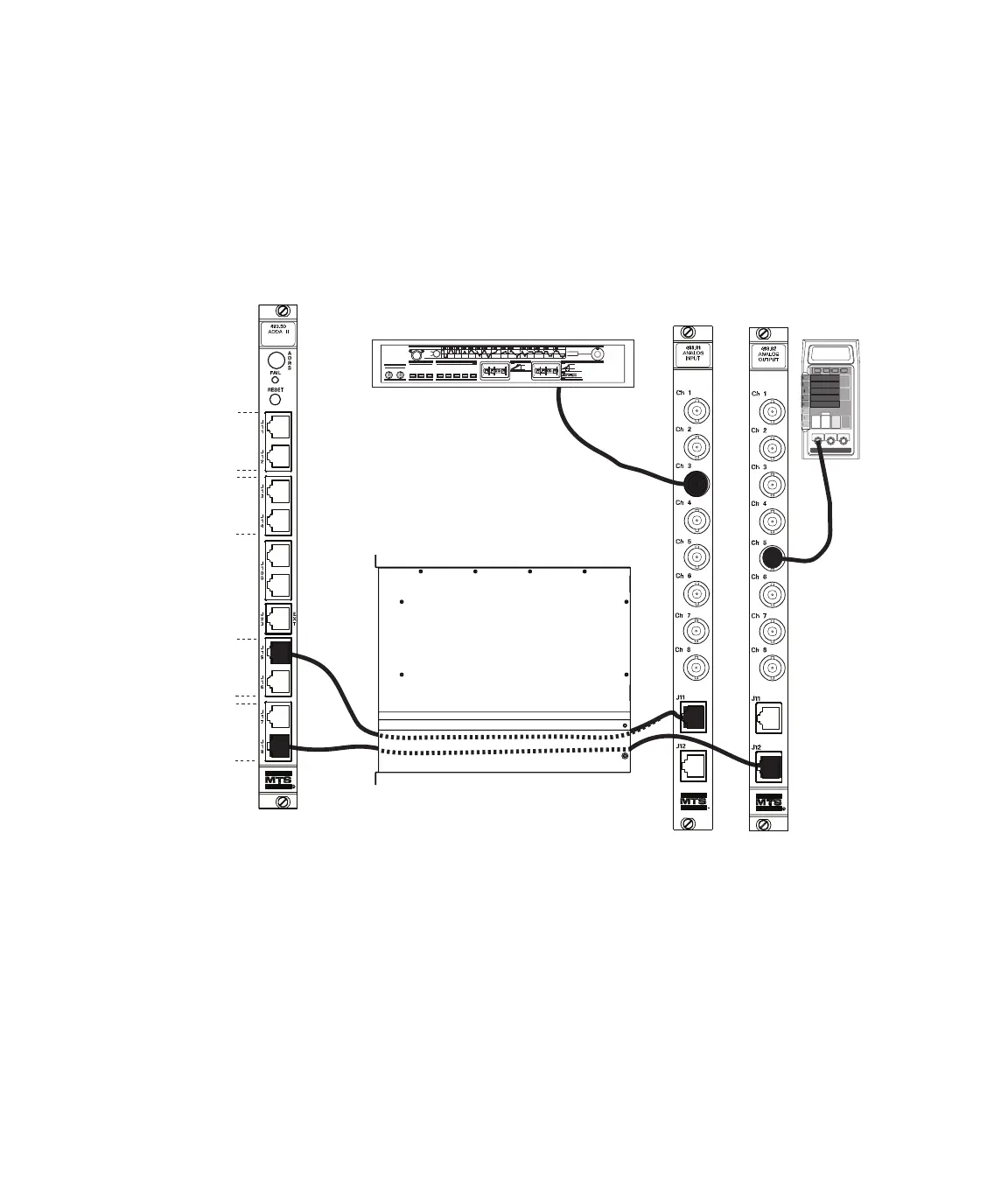

The Model 493.55 A/D, Model 493.57 DSPAD, and Model 493.56 D/A
mezzanine cards are installed in the Model 493.50 ADD II module
assembly. A connection from the front panel connector to a rear panel
BNC transition module allows easy access to the analog channels.
Note The external analog source can be a stand alone function generator,
another controller, or a computer controlled analog output.
External Analog Source
Front Rear
493.10 Chassis
Analog Monitor
Front/Rear Cable Conduit
Daughter
Board 1
Daughter
Board 2
Daughter
Board 4
Daughter
Board 3
FS
0
t
FS
0
t
0
t
Select Waveform
Generator
410.81
Function
Control Mode
Output Mode
Output
Remote
Local
Local
Single
Cycle
Local
Start
Finish
Cycle
& Stop
Ret to
Zero
Trigger
Manual
Bkpt
Hold
Main Sync
Output to 0
+100% FS
+100% FS
Breakpt
5 - 05%
Full Scale
Hold Time (sec)
Frequency (Hz)
Ramp Time 1 (sec) Ramp Time 2 (sec)
FS
0
Normal
Invert
