MTS 793 Controller Hardware
FlexTest GT Controller Connections
108
I/O Carrier jumper
settings
Before installing a Model 493.48 Acceleration Conditioner mezzanine
card in a Model 493.40 I/O Carrier module, specific jumpers must be
set. Jumper settings depend on the number and configuration of your
system accelerometers.

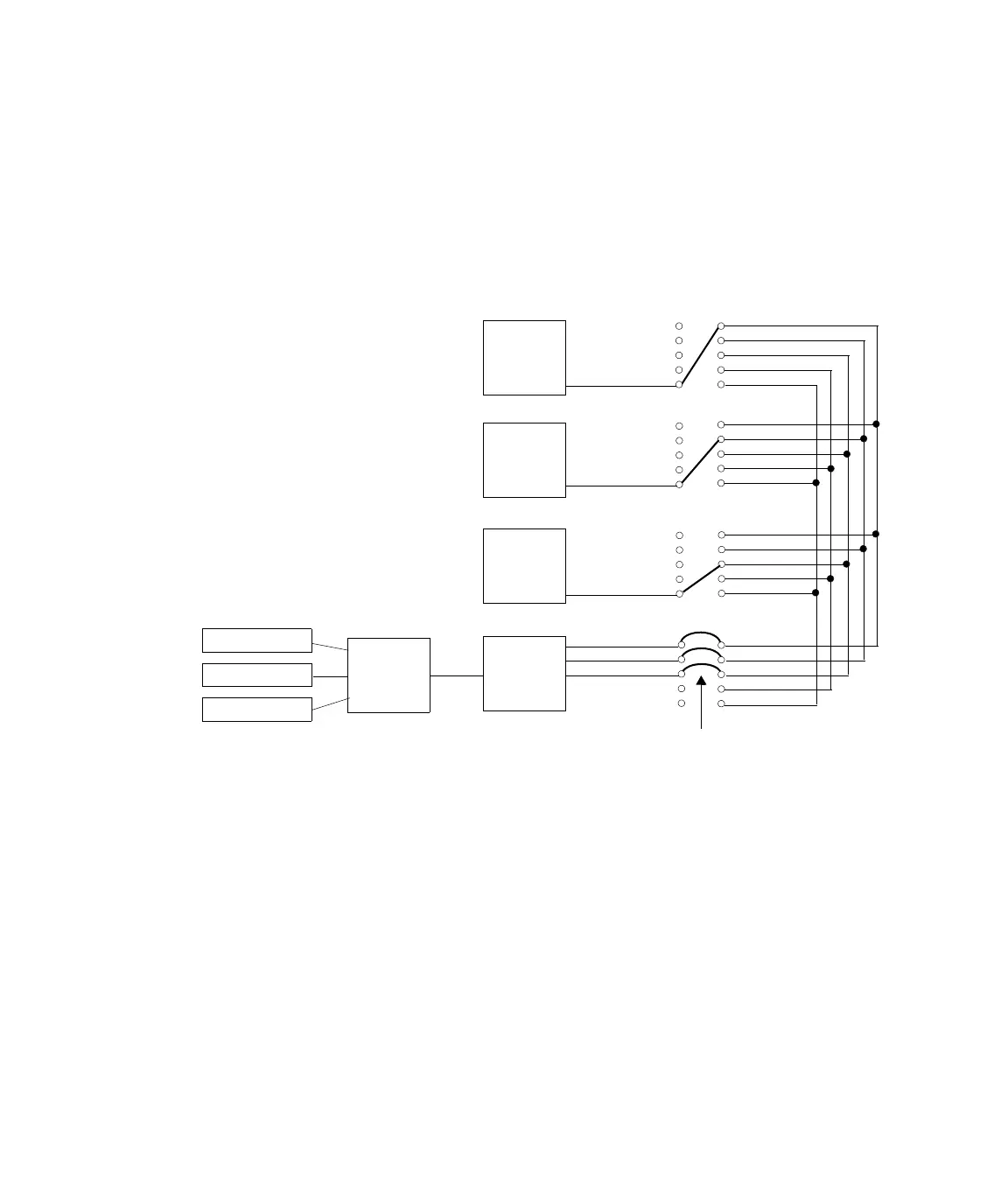

In the example shown below, the Acceleration Conditioner supports
three accelerometers. The indicated three jumpers must be set on the
I/O Carrier module
DUC
DUC
DUC
Accel
Daughter
Card
Accel
Transition
Accelerometer
Accelerometer
Accelerometer
Set these jumpers
X101
X102
X103
X104
X105
X201
X202
X203
X204
X205
X301
X302
X303
X304
X305
X401
X402
X403
X404
X405
Ch 1 Accel Out
Ch 2 Accel Out
Ch 3 Accel Out
Analog Bus#1
Analog Bus#2
Analog Bus#3
Analog Bus#4
Analog Bus#5
