MTS Systems FlexTest SE User Manual

MTS 793 Controller Hardware FlexTest IIm Controller Connections
179
Digital I/O Connections

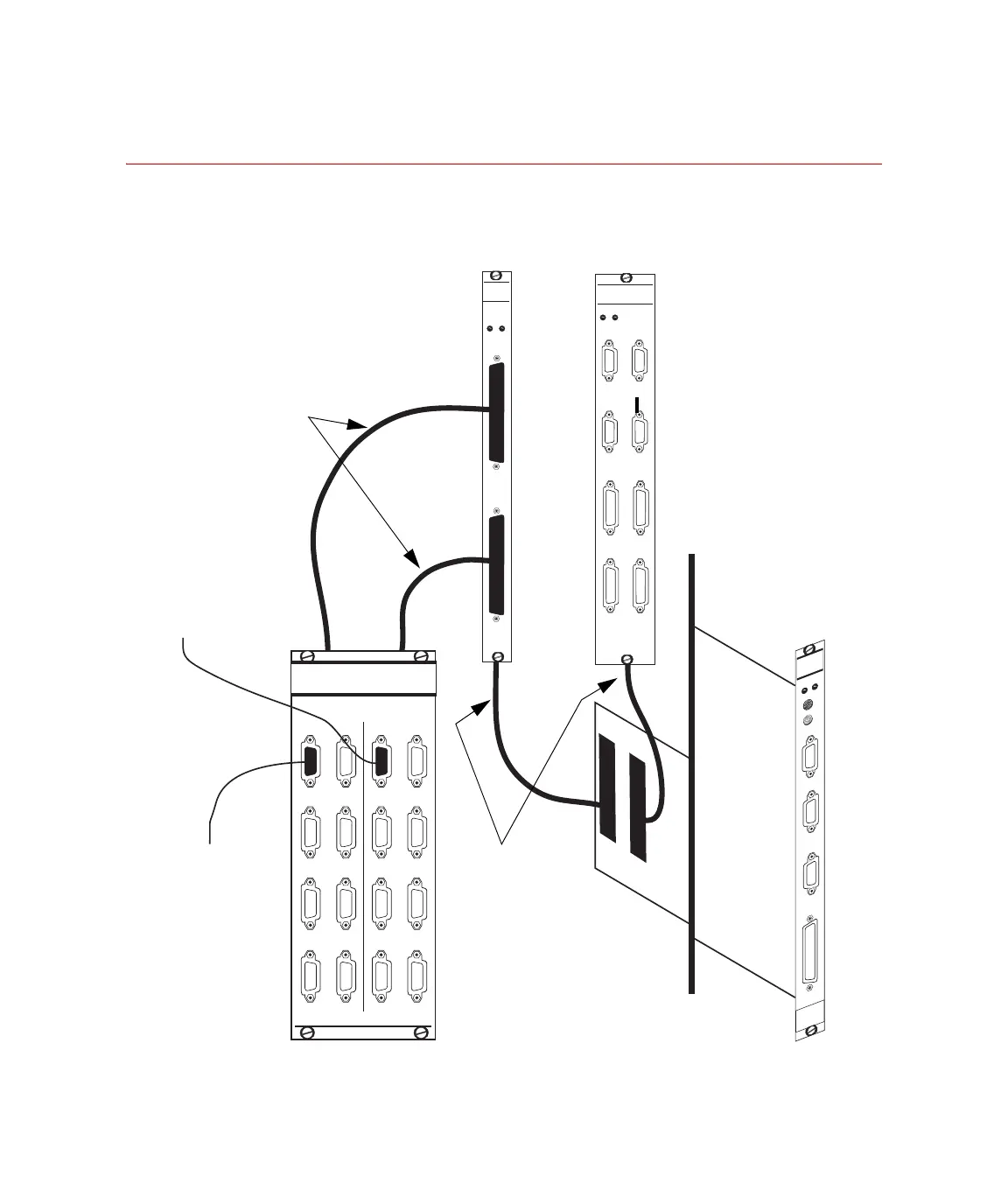

Digital I/O hardware enables two-way communication between your
test and external logic devices.
J4
497
Hyd
J6
I/O
J5
497
Intlk
J3C
Sta 3
Intlk
J3D
Sta 4
Intlk
J3A
Sta 1
Intlk
J3B
Sta 2
Intlk
498
System
Digital
I/O
J7
I/O
498
DIGITAL I/O
TRANSITION
MODULE
J4 OUT
J3 IN
+5V +12V
m
RESET
ABORT
RUN FAIL
J4 NET
J5 CONSOLE
498.71
GLOBAL
RESOURCES
J7 SERIAL
J4 NET
1 - 2
DIGITAL I/O ACCESS PANEL
DIGITAL IN1-16
DIGITAL OUT1-16
Digital Input
Channels
3 - 4
5 - 6
7 - 8
9 - 10
11 - 12
13 - 14
15 - 16
1 - 2
3 - 4
5 - 6
7 - 8
9 - 10
11 - 12
13 - 14
15 - 16
Digital Output
Channels
+5V +12V
049-792-201
Connects to J2
on back of
module.
A digital input can be
a mechanical switch
or a logic signal.
046-442-302 --
Connects to back of
built-in module (FTIIm)
J3
J4
J3
J4
A digital output
produces a logic signal
to an external circuit.
Paddle
Board
Model 498.22
Chassis Backplane
This transition module provides user
digital I/O the built-in digital I/O access
panel (FTIIm)
This transition module
reserves system DIO.
See “Interlock Connections”
on page 175 for the
connectors on this module.
