Traction hitch mechanism ТСУ-З К *
(trailer gear with automatic hitching)
Attention!
1 . Never try to use the trailer gear for
working with semi-trailers or single-axle
trailers.
2 . When towing the trailers, always apply
safety chains.
3 . Never use rear hinging mechanism when
trailer gear is installed on the tractor.
The trailer gear is fastened to the tractor
with two pins.
The tractor is shipped from the factory with
the trailer gear supported by the upper pin
(transport position) only. To set the trailer
gear to the working condition, proceed as
follows:
• lift slightly the gear and remove pin (1);
• refit the upper rod (2) to the upper open-
ing of the shackle;
• remove the lower pin while holding the
gear in the upper position;
• lower the gear, align the holes in the
holder with those in the shackle and
insert the lower pin.
The trailer gear can be installed in two
positions:
• lower, for operating the tractor with
the trailers not requiring the use of
PTO rear shank;
• upper, for operating the tractor with the
trailers requiring the drive of active ele-
ments from the PTO rear shank (in this
case turn the trailer gear by 180).

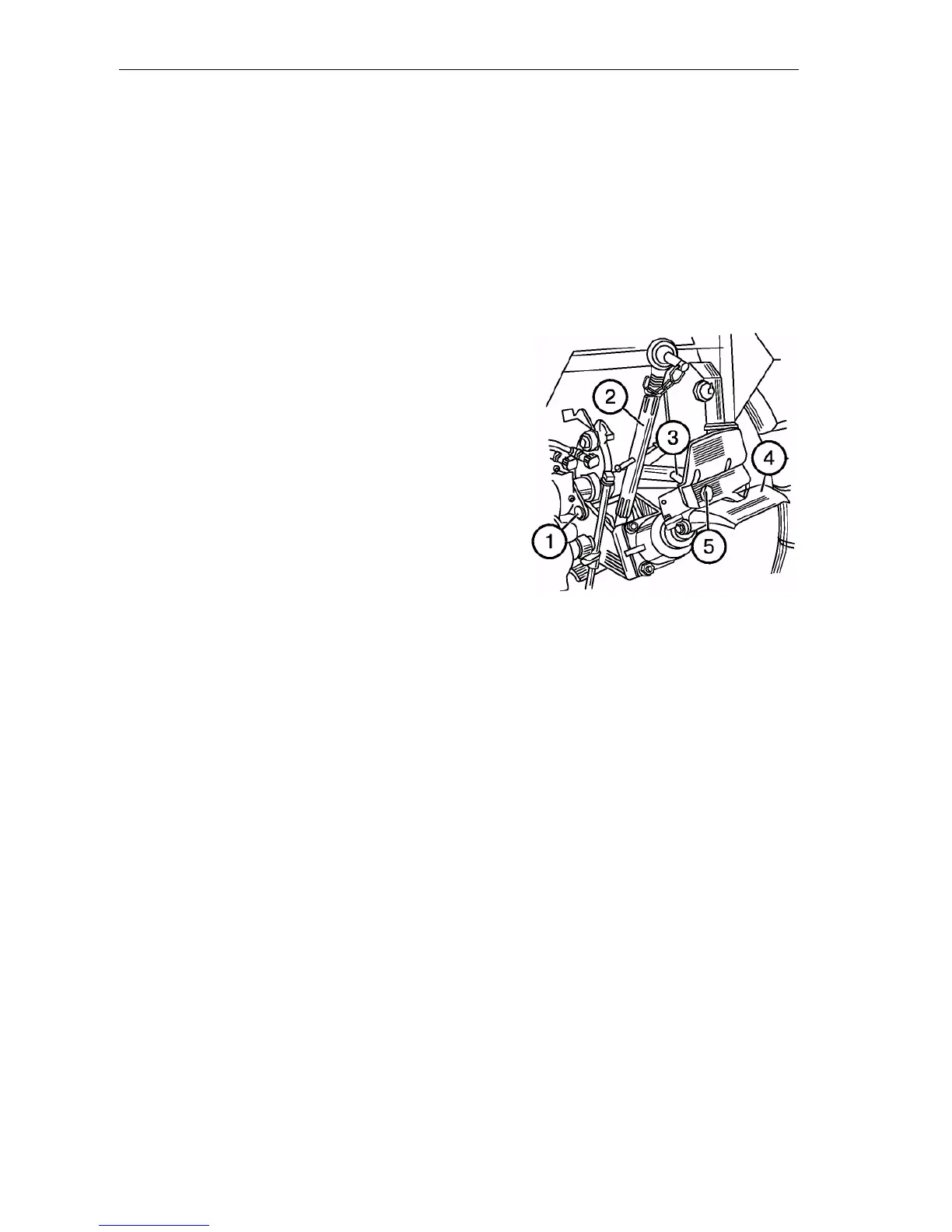

When hitching the tractor and the trailer,
the gripper (4) serves as a guide for the
trailer hitch eye. To attach the trailer,
move the tractor back. As a result, the
trailer hitch presses and sinks the pin (5)
and enters the hook jaw. The hitching
takes place automatically. To unhook the
trailer, pull the handle (3) and take hitch
eye from the hook.
