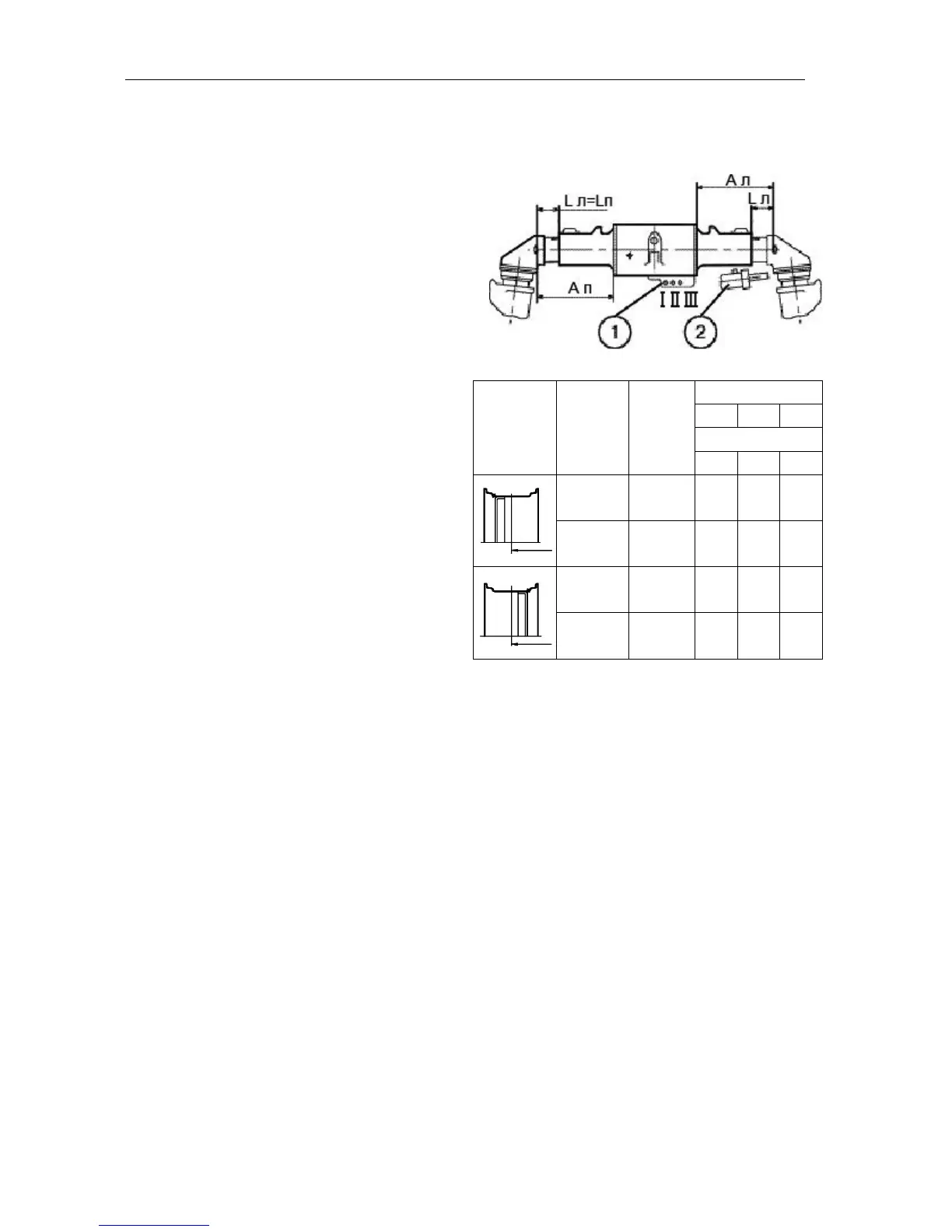

7. Detach the hydraulic cylinder (2)
from the holder (1).
8. Move the wheel reducing gear hous-
ing by rotating the left adjusting
screw using a wrench to obtain the
required distance “A”. At the same
time, alter the steering rod length to
the value corresponding to the track
to be set by the rotating tube (4).
9. Install and fix the pin of the cylinder
(2) into the hole of the holder (1) ac-
cording to the Table above.
10. Insert and tighten the wedges and
adjusting screw cover.
11. Repeat the operations on the right
side. Set the size А
R
=А
L
.
12. Adjust front wheel toe-in (see rec-
ommendation below).
13. Tighten the nuts of the steering rod
tube.
14. When transposing the wheels, tight-
en the disk fixing nuts to the flanges
with the torque of 210...260 N·m.
Then make sure that wheel rotation
would coincide with the arrow on the
tyre sidewall.
