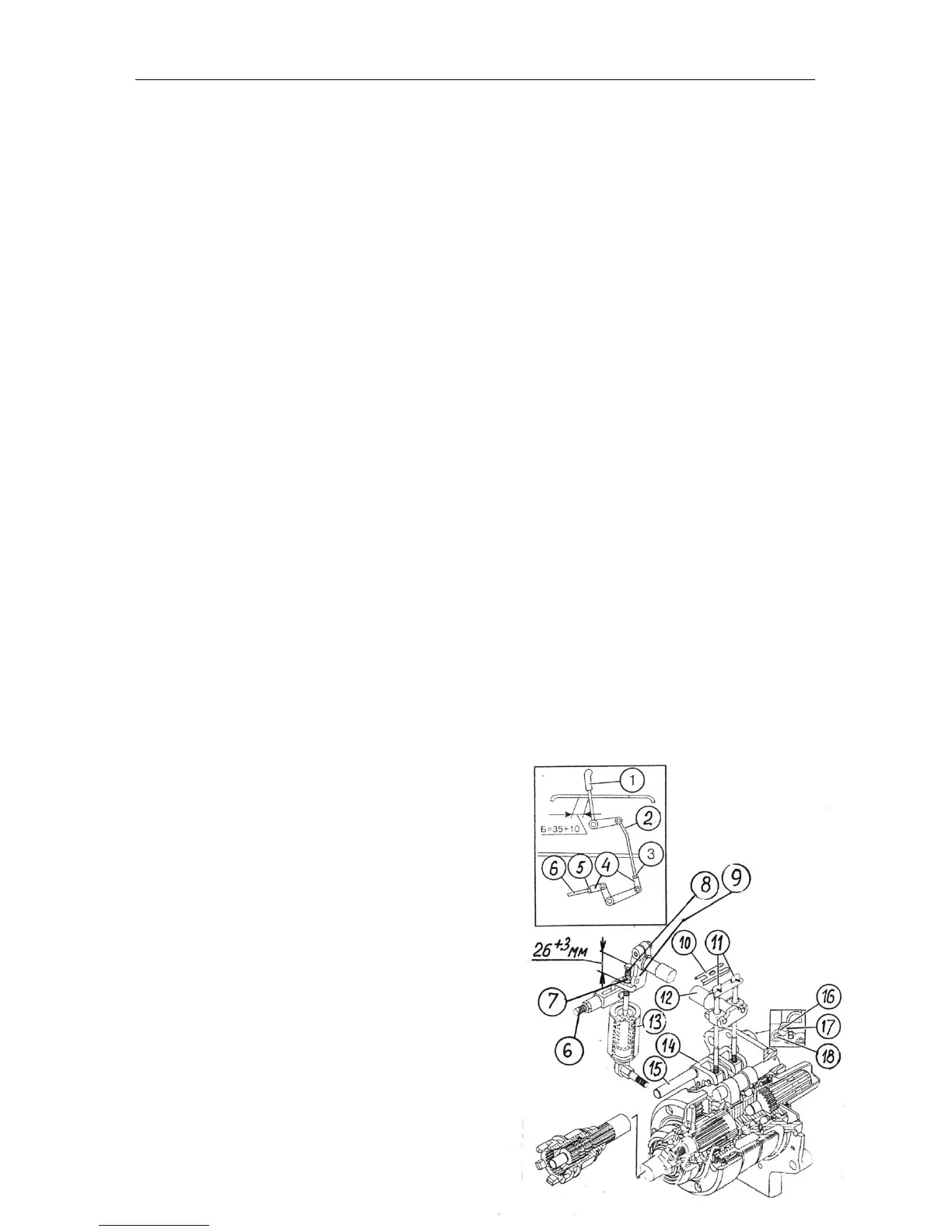

Adjusting the control when repairing
the PTO
Put the eccentric shaft (15) to the right-
most position (flat is on the right vertical-
ly) and lock it with a bar (16) and bolt
(17).
1 . Put the arm (9) to the “Neutral” posi-
tion (holes in the arm (9) and rear ax-
le housing coincide), fix this position
using a rod 8 mm or a bolt M 10x60.
2 . Remove the cotter pin and lock bar
(10), having released the screws (11)
to make adjustment.
3 . Tighten the adjusting screws (11) with
the torque of 10 N•m (1 kgf•m) and
then release them by 2-2.5 turns.
4. After adjustment, refit the lock bar (10)
and cotter pins.
5 . By adjusting the length of the rods
(2) and (6) by means of the forks (4)
and locknuts (3, 5), set the lever (1)
to the middle position relatively to
the control panel slot.
6 . Turn the adjusting bolt (8) into the lever
(9) to the dimension А=26...28 mm
and fix it in this position by means of
a locknut (7).
7 . Remove a supplementary rod (or bolt
M10x60) from the hole of the rear axle
housing and the lever.
8. Check the correctness of performing the ad -
justment. When being moved, the lever (1)
shall be clearly fixed in the extreme positions
a n d in the “PTO ON” position the distance
from the edge of the lever to that of the con -
trol panel slot shall be 35+10 m m and the
rods (2) a n d (6) shall not touch the nearby
parts of the tractor during the motion.
