Adjusting control rod of FDA drive
transfer box

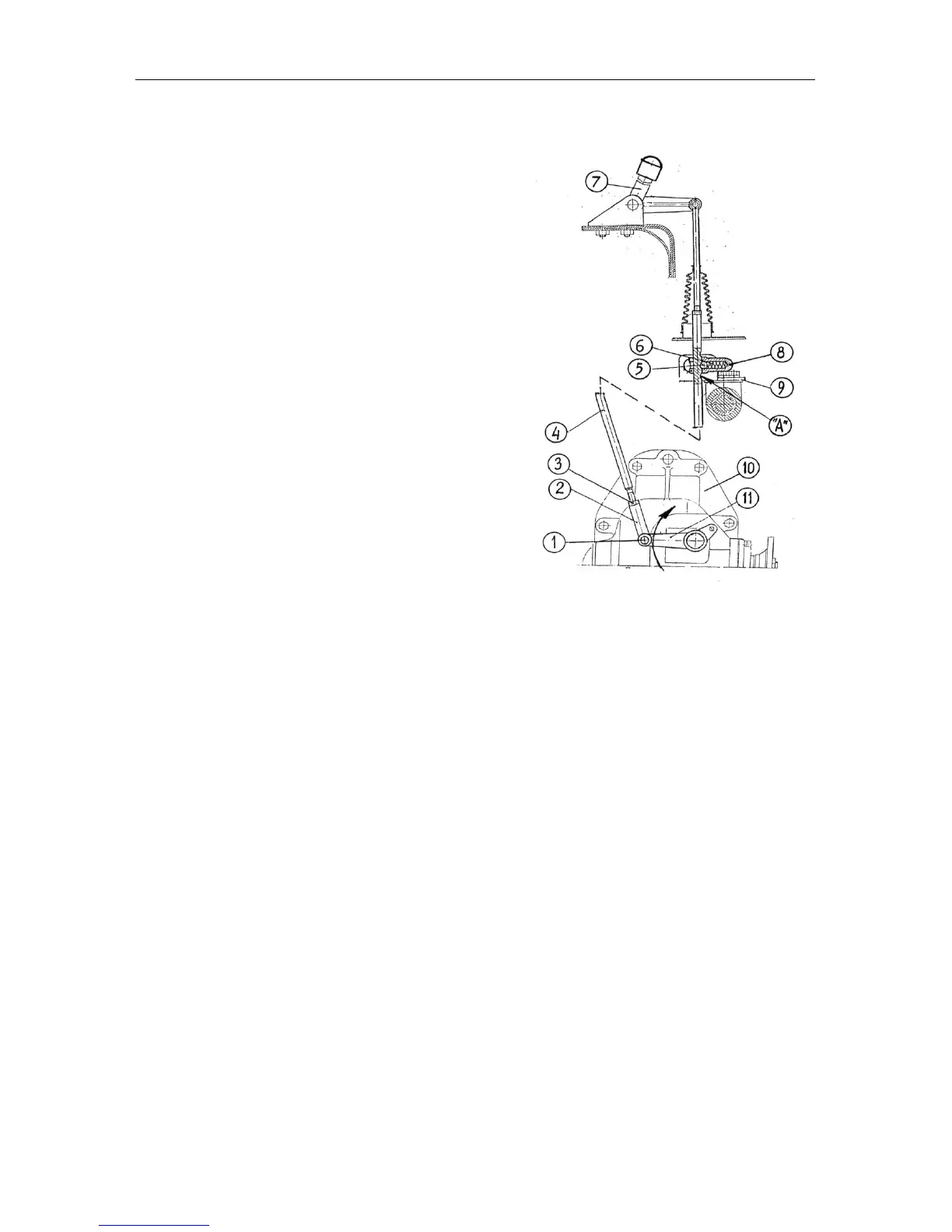

To adjust the rod, proceed as follows:
• Put the lever (7) to position “PTO forc-
edly ON” (upper fixed position, catch
ball (5) is in the lower indent “A” of the
rod (4)).
• Turn out the locknut (3) by 2-3 turns,
remove the cotter pin and then the pin
(1).
• Turn the arm (11) clockwise until the
full engagement of the transfer box
(10), i.e. gear clutch is coupled with ex-
ternal and internal casings of the free
travel coupling.
• Adjust the length of the rod (4) by rotat-
ing the fork (2) in such a way that the
pin would enter freely the holes of the
fork and arm (11) turned clockwise to
the stop.
• Tighten the locknut, refit the pin and fix
it with the cotter pin.
