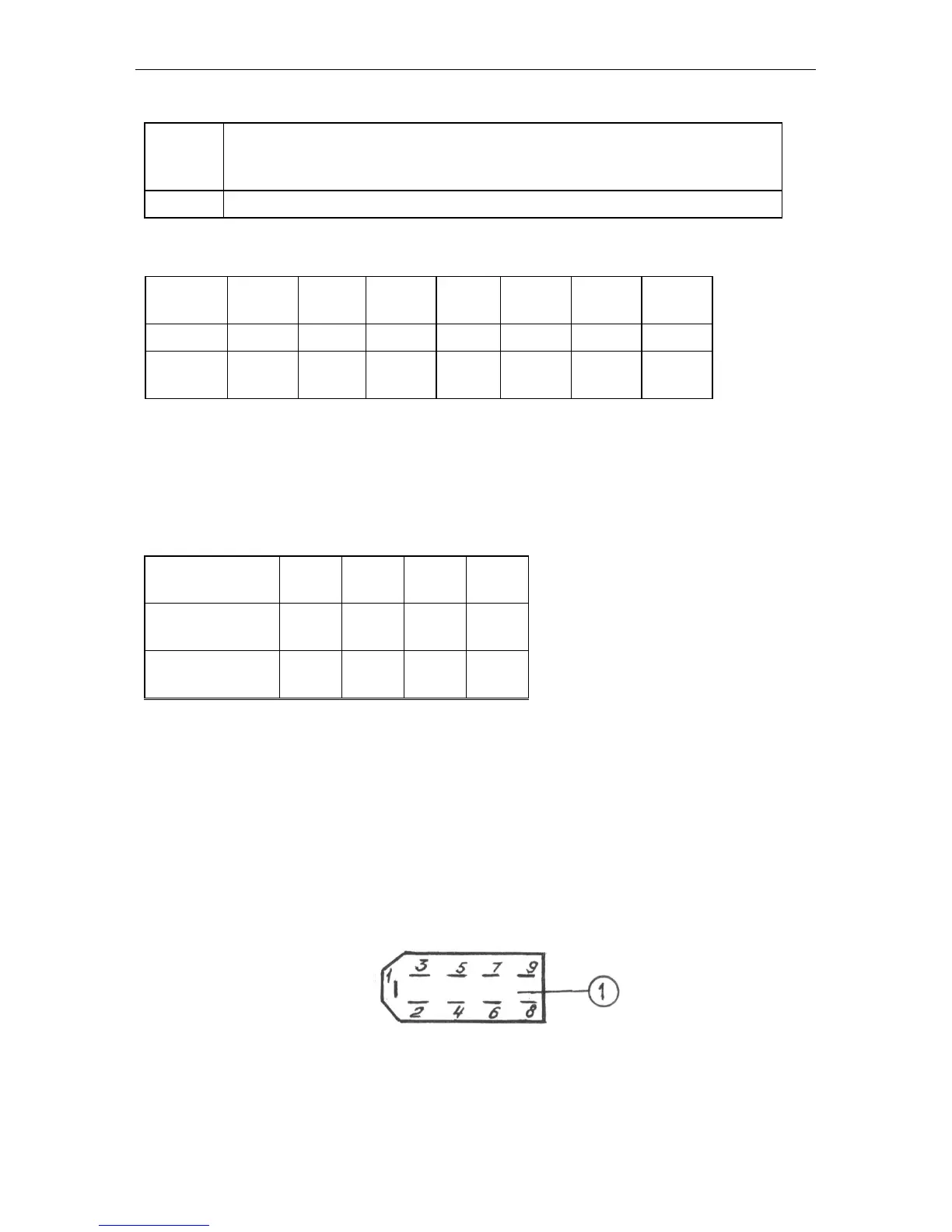

Table 1
Number
of teeth
(Z)
Tractor make
69
MTZ 590; 80.1; 890; 900; 922; 950
Table 2
Tyre
mark
16,9R30
18,4L30
15,5R38
9,5-42
18,4R34
(Ф-11)
16,9R38
18,4R38
Rk, m
0.698
0.720
0.755
0.730
0.770
0.800
0.830
Number
coded
700
720
755
730
770
800
830
3. To ensure the correct display of the engine and PTO rotational speeds (540 and
1000), program the engine make (parameter “D”):
– press the button (1) and call the parameter “D” to the tachospeedometer display (3);
– press the button (3) and set the necessary engine make according to Table 3:
Table 3
Engine make
Д-243
Д-244
Д-245
Д-
245.5
Rated rotational
speed, rpm
2200
1700
2200
1800
Number pro-
grammed
243
244
245
245.5
On the expiry of seven seconds after programming, the instrument returns automatically
to the operating mode. Refit the board cover.
Note: If no information on the type of the tyre fitted is available, it is allowed to measure
the value Rk as a distance from the wheel axis to the ground prior to beginning the oper-
ation of the tractor.
1.4. Connecting the tachospeedometer
To connect the tachospeedometer to the instrumentation system, a 9-contact block is
provided on the rear panel of the instrument (Fig. 3).
Fig. 3
