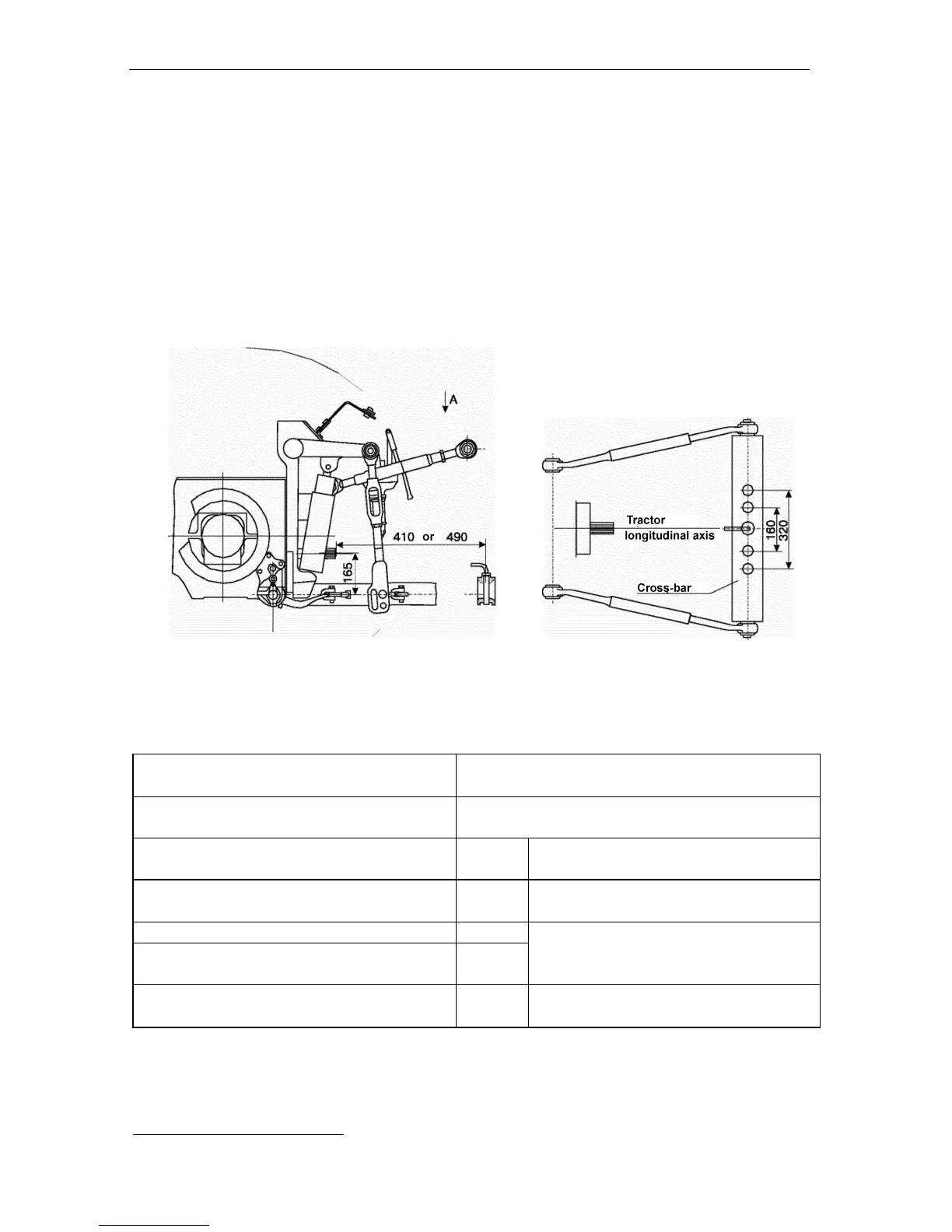

Traction hitch mechanisms (THM) of the tractors equipped with hydraulic lift
ТСУ-1Ж-01 (double cross-bar)
ТСУ-1* (single cross-bar)
Machines: semi-mounted (seeders, potato-planters, potato combines, vegetable-
harvesting machines, etc.), semi-trailer (mowing machines, balers, haulm gatherers,
etc.).
ТСУ-1Ж-01 (double cross-bar)
as a unit with telescopic rods – optional
ТСУ-1 (single cross-bar)
with one-piece or telescopic rods on hanger
axle – optional
Telescopic rod front end length
mm
570
Distance between PTO face to attach-
ment pin axle
mm
410,490,595
*
Attachment pin size
mm
030 (0 30 )
12(1200) 6,
5* (650)*
Vertical load on THM
kN (kg f)
Machine turning angle relative to the
tractor
degree
± 65 (± 80)
*
Indices are given for ТСУ-1
