2.2.2 Battery connection cable for the switch box or machine adapter
The socket is mounted to the computer console with the screws supplied. The power connection is as
described in 2.2.1. The battery cable has a 25-ampere fuse.
2.2.3 Sensor X (Establishing the distance) (20)
• Fitting to a Unimog (Unimog without a signal socket)
A tacho adapter can be supplied with the Unimog. Dismantle the tachometer shaft from the gearbox
and screw the adapter supplied in its place.
Apply multi-purpose grease to the shaft with the magnets and insert it with the yoke showing
downwards.
Screw the tachometer shaft on to the free end of the adapter.
• Fitting to a 4-wheel drive tractor and to a MB-Trac
Mount hose clamp with the magnet to the
cardan shaft.
The sensor should point towards the
magnets from a distance of 5 - 10 mm. It
should be fitted when no oscillation occurs.

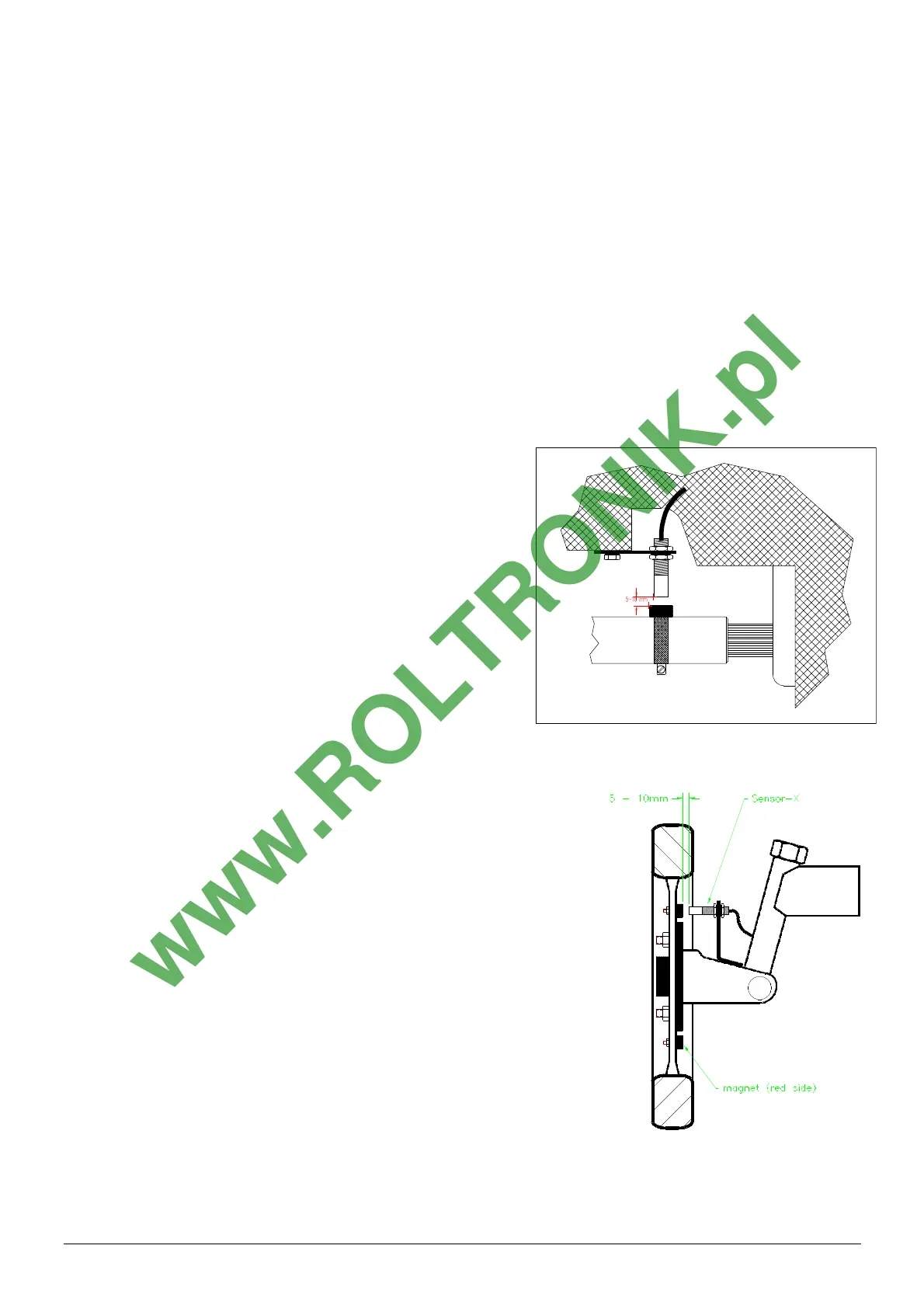

Diagram: 312084.85.1
• Fitting to tractors without a 4-wheel drive
Fit the magnets to the shell of the wheel at an equal
distance apart round the circumference with the V4A
screws supplied.
The number of magnets is determined by the
size of the wheel.
The distance travelled between two impulses
should not exceed 60 cm.
Calculation:
Circumference of wheel ÷ 60 cm = number of
magnets
e.g.
256 cm ÷ 60 cm = at least 4.27 = magnets
Fit the sensor to the axle steering bearing
with the brackets provided in such a way,
that the end of the sensor points towards the
magnets. The distance should be 5 - 10 mm.
Diagram.: 312 084.83.1
